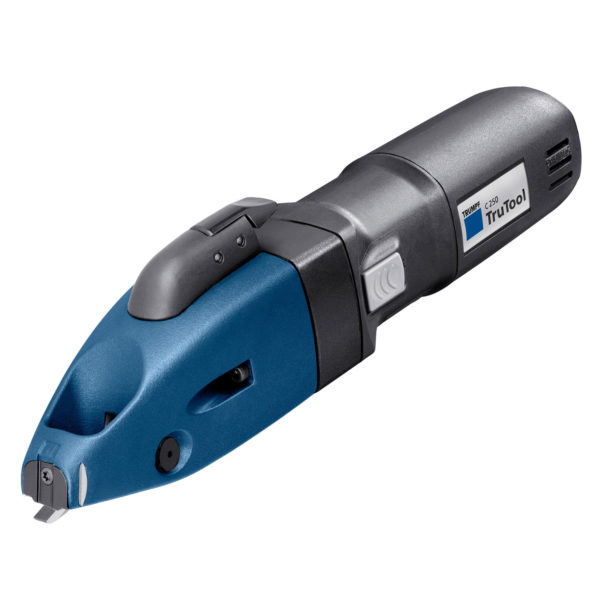

TRUMPF Trutool C250 Slitting Shear with Chip Breaker

Manufacturer: Trumpf

• TruTool C250 with integrated chip breaker for operation with one hand has a particularly important and unique advantage.




  Read more

  Features:

  The chip can conveniently be removed from any point with one hand.

  The tool can be easily pulled out and accurately replaced in the workpiece, thanks to visible position markings on the cutter head.

  By selecting TruTool C250 you have chosen the most powerful and fastest slitting shear in its class.

  It delivers the power to cut sheet up to 2.5mm thickness.

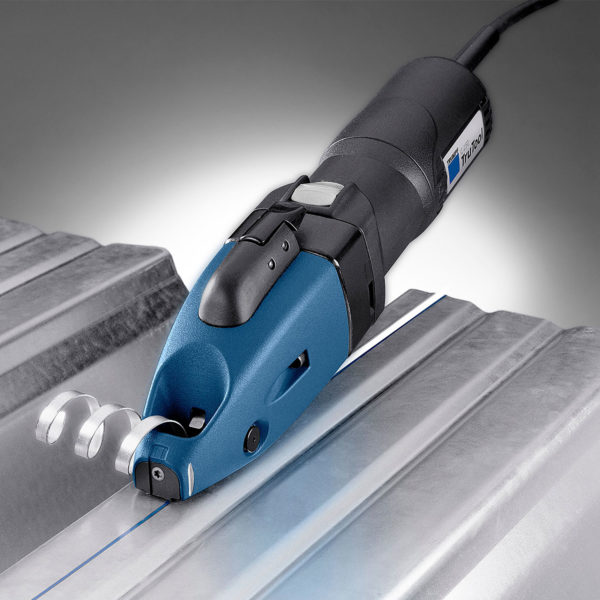

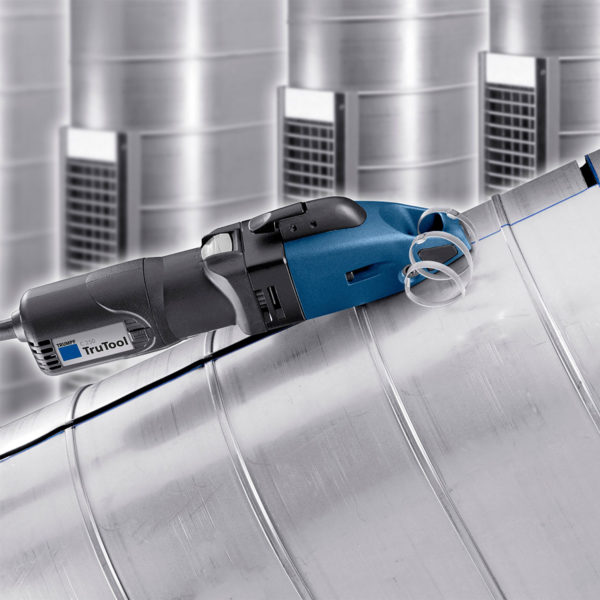

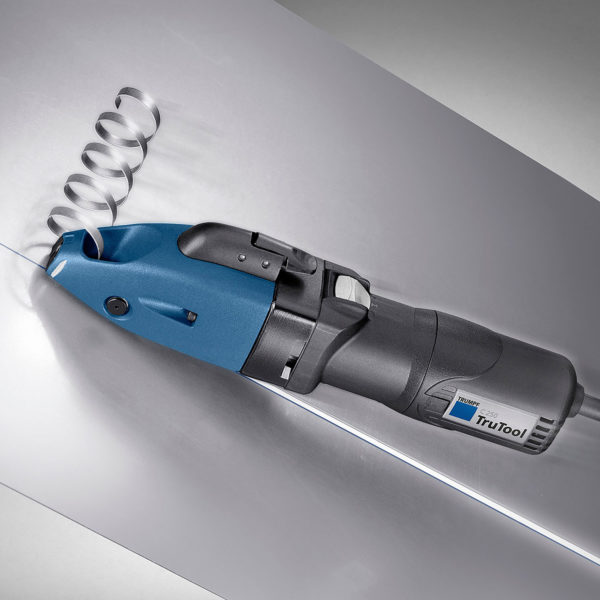

  The spiral unrolling of the chip protects the surface of the sheet.

  Specification:

  Straight cutter for 1.5 – 2.5mm sheet thickness

  Steel 400N/mm² 2.5mm

  Steel 600N/mm² 1.5mm

  Aluminium 250N/mm² 3mm

  Working Speed: 3-10m/min

  Start Hole Diameter: 22mm

  Smallest Radius: 150mm

  Input: 500W

  Strokes at Nominal Load: 2400rpm

  Weight: 2kg

  5 Years Warranty on all Trumpf Power Tools when registered.
