Trend UNI/CS 3.0mm – 7.2mm Universal Countersink for Wood

Manufacturer: Trend

• Trend UNI/CS is a universal tungsten carbide tipped countersink for use in softwoods, hardwoods, MDF, plywood, man-made particle boards.




  Read more

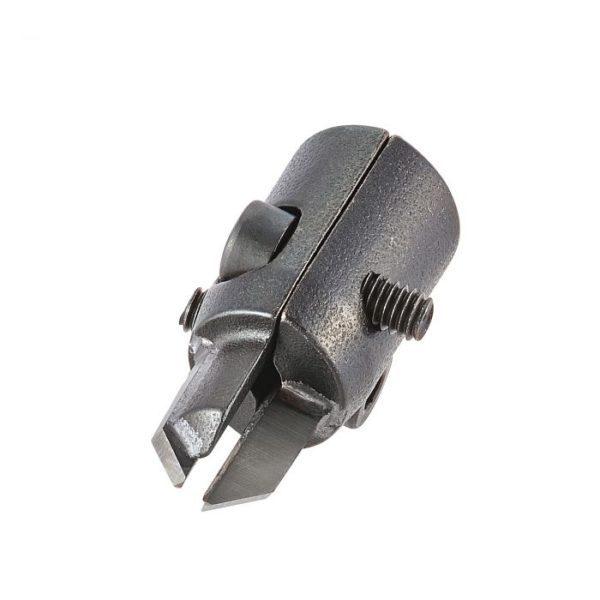

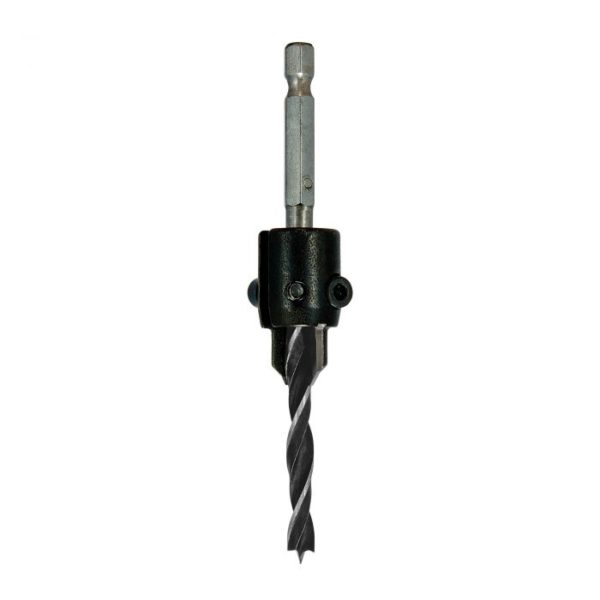

  The TCT countersink clamps onto any drill bit between 3.0mm and 7.2mm in diameter.

  Manufactured from high grade tungsten carbide for a clean and smooth finish.

  By flipping the countersink 180°, it can be used as a non-cutting depth stop.

  Drill bit not included – use any standard HSS drill bit.

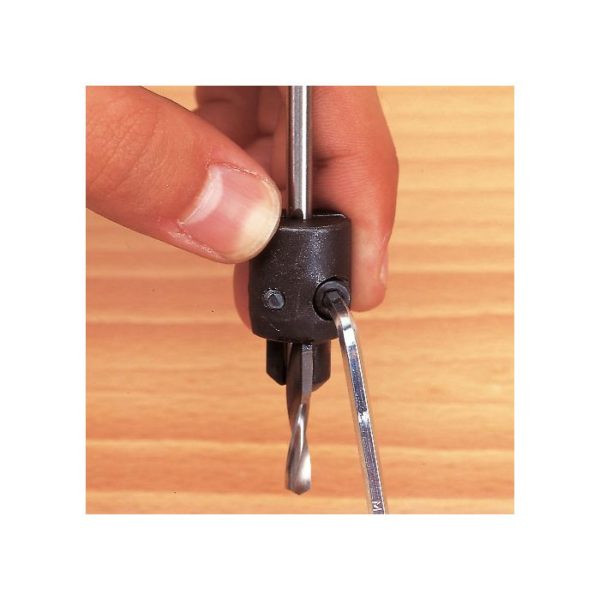

  When fitting the countersink ensure the pressure is evenly over the two securing grub screws.

  Do not over-tighten – hex key included.

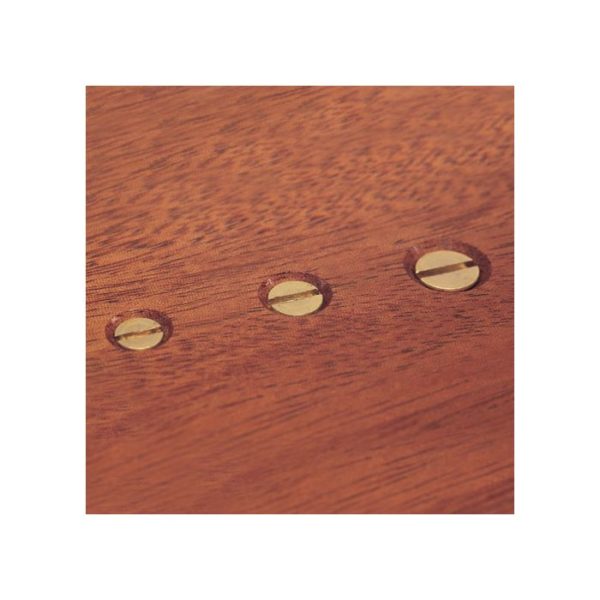

  Can be used to: 1. flush countersink, 2. below level countersink or to 3. countersink and counterbore.

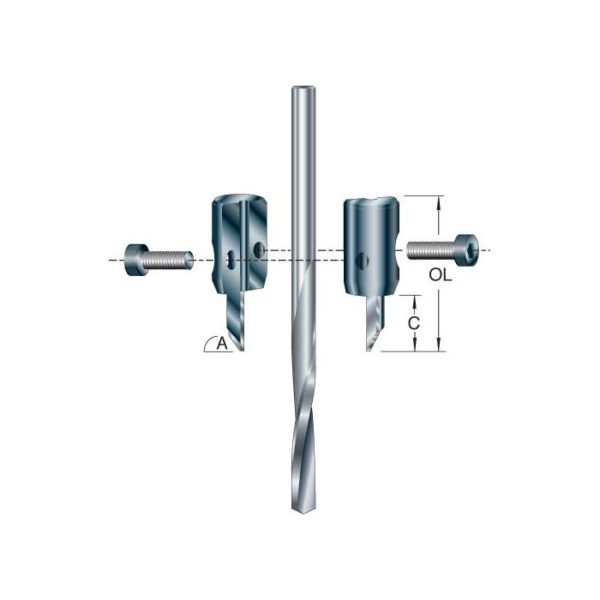

  Specifications:

  Countersink Depth (C):           12mm

  Countersink Diameter (D):    11.0mm – 15.0mm

  Pilot Diameter (d):        3.0mm – 7.2mm

  Countersink Angle (A):           45°

  Overall Length (OL):           32.0mm
