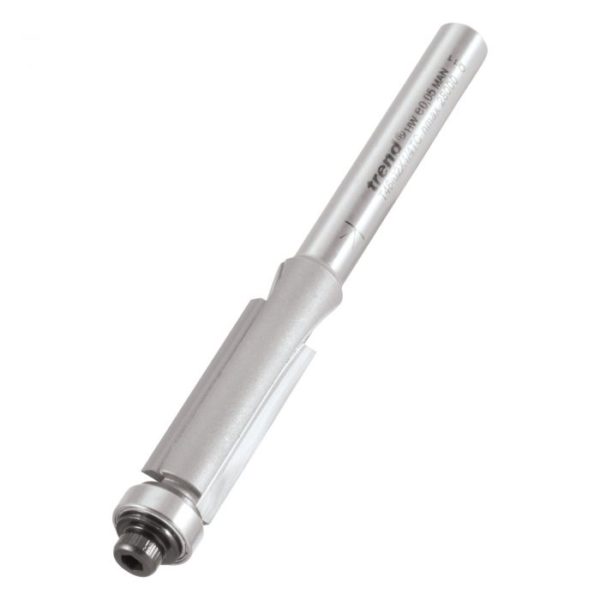

Trend T46/02X1/4TC 9.5mmØ x 25mm Trimmer Router Cutter 1/4"

Manufacturer: Trend

• Trend T46/02X1/4TC professional bearing guided 90° trimming router cutter for the most demanding applications.




  Read more

  The Trend Professional range feature specially developed micro-granular tungsten carbide tips from the world’s leading carbide manufacturer.

  Self-guiding trimmer router cutter with a bearing mounted to the bottom or nose of the cutter.

  Designed for trimming plastic or plywood overlay.

  Two flutes – a combination of two parallel TCT cutting edges produce an excellent finish.

  For copy profiling, the bearing follows a template or the base edge of the board.

  A maximum of 3mm overlap should be left prior to copy profiling.

  Ensure any laminate adhesive is dry before trimming, to avoid clogging the bearing.

  Continuous laboratory testing of tools during the production process ensures all Trend Professional Router Cutter tooling meets the safety standards set by EN847.

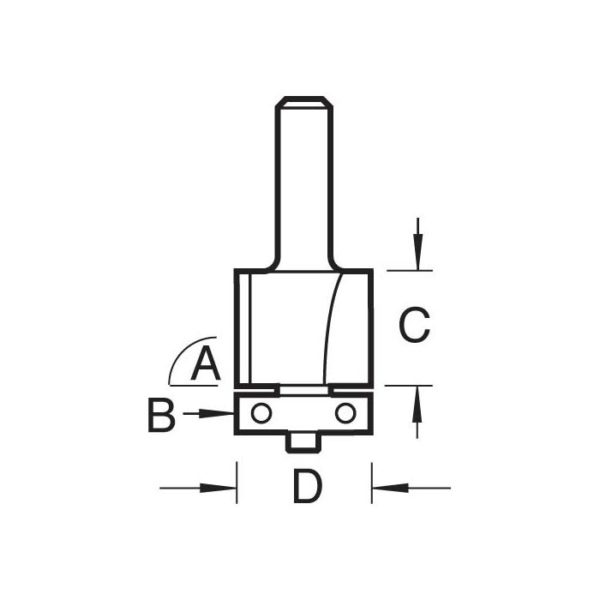

  Specifications:

  Diameter (D): 9.5mm / 3/8”

  Cutting Length (C): 25.0mm

  Bearing Diameter (B): 9.5mm

  Angle (A): 90°

  Shank (S): ¼”
