Trend T14 Variable Speed 1/2" Router c/w Safety Switch/Case

Manufacturer: Trend

• Trend T14 variable speed corded professional ½” plunge router can be used as a conventional hand-held router, but also features a built-in ‘quick raiser’ fine height adjuster and a power isolation switch for safe and convenient use with a router table.




  Read more

  Designed for all types of routing applications including templating, lock fitting, worktop joints, timber profiling as well as router table use.

  2-in-1 plunge and router table height adjuster can be used from above and below the router, ensuring maximum accuracy in both table and hand-held mode. Each 360° turn gives 1.5mm adjustment.

  The T14EK is supplied with a router table safety switch, to bypass the anti-restart protection feature and replace the need for a typical no volt release (NVR) switch.

  Powerful motor with full wave electronics for a constant high power, torque and speed. 7-level variable speed control ranges from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications.

  80mm plunge depth is perfect for deep cutting applications and the auto-lock lever allows users to quickly, accurately and safely reposition the plunge position without releasing the handles. The plunge depth limiter is easy to set and prevents over-cutting.

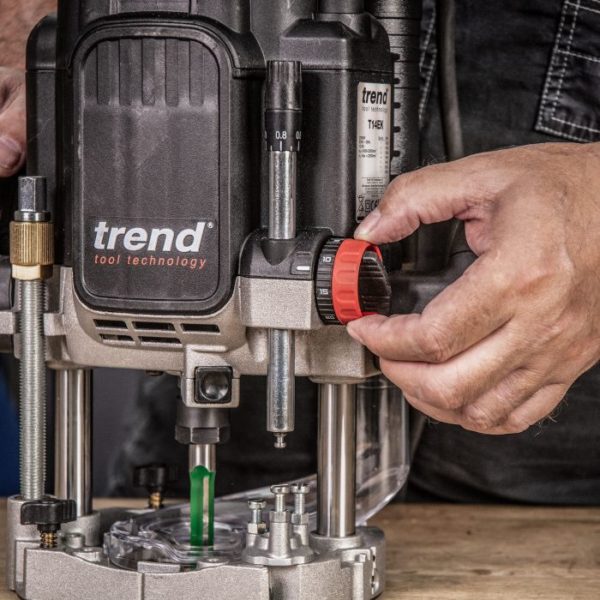

  Quick-set depth post with rack and pinion 1.0mm indexed increments and zeroing function for fast, easy adjustment. Micrometer fine height adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment.

  Soft-start safety feature eliminates kick-back and the anti-restart protection prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is interrupted and then restored.

  Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.

  Precision centring system features a unique guide bush centring pin and adaptor plate that ensures perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.

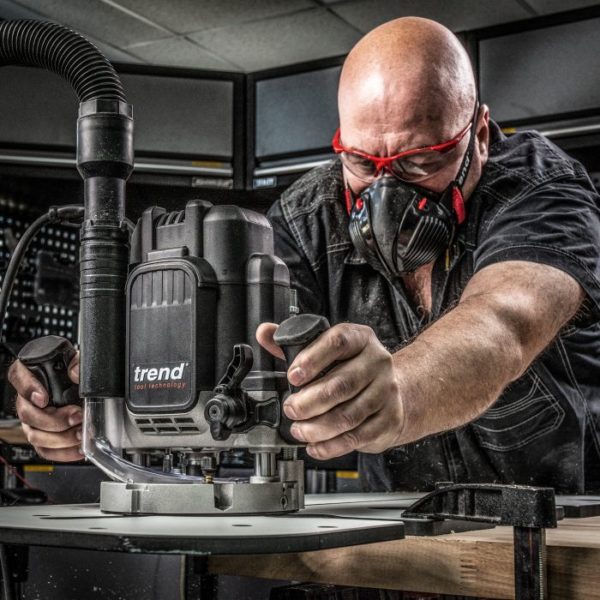

  Top-mount cyclone extraction with enhanced dust adapter efficiently clears debris to give users 360° visibility and prevent extraction hoses from ‘snagging’.

  Ergonomic inclined handles support a natural wrist position, minimises strain, and increases control when routing with arms outstretched. The integrated power trigger built into the handle for precise and safe control of the router’s on/off function.

  Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding.

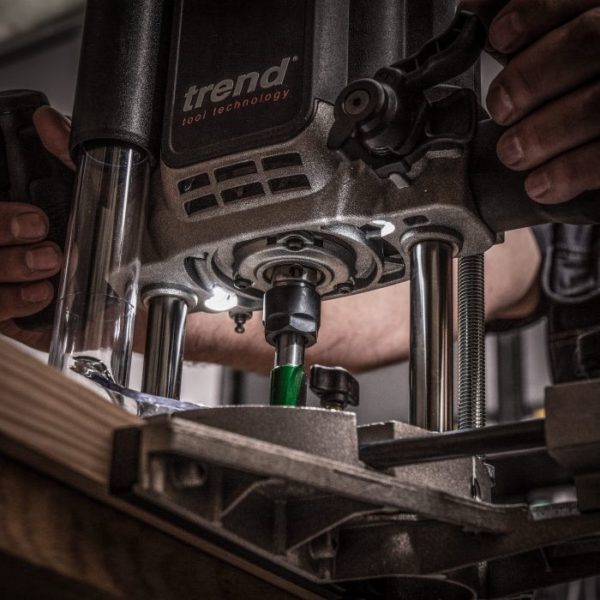

  Automatic LED work lights allow users to accurately position the cutter in low-light situations, prior to engaging the material and making costly errors.

  Anti-scratch base plate made from replaceable, smooth phenolic materials for a low-friction routing experience.

  3-position rotating turret is used to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.

  Extra-wide 75mm base aperture accommodates over-size cutters, such as panel raisers, when used with a router table.

  Spindle Lock for quick and easy router cutter changes.

  Specification:

  Collect Capacity: ½”

  Motor: 2,300W

  Max. Plunge Stroke: 80 mm

  No Load Speed: 9,000 – 22,000 rpm

  Base Aperture Diameter: 75 mm

  Max. Cutter Diameter Plunge/Table: 50/86 mm

  Dust Spout Internal Diameter: 35 mm

  Sound Pressure (Lpa): 95.1 dB(A)1

  Acoustic Pressure (Lwa): 106.1 dB(A)2

  Hand/Arm Vibration: <2.1 m/s2

  Power Cable Length: 3.5 M

  Weight: 6.5 kg

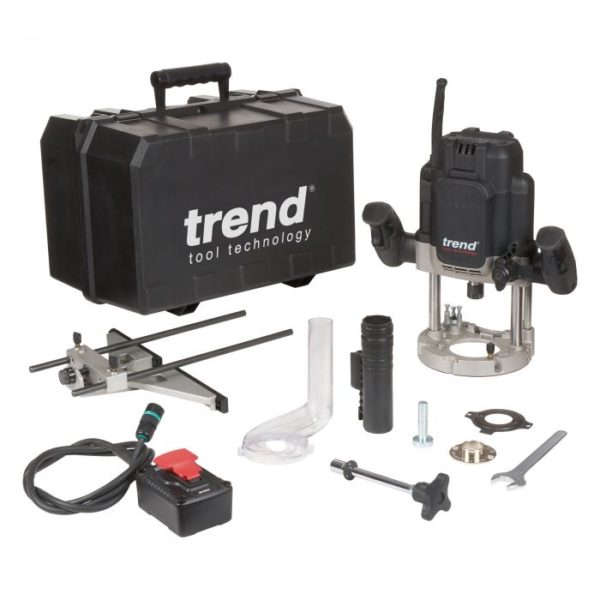

  Included as Standard: Safety switch, ½” collet, micro-adjustable side fence, 30mm guide bush, 22mm spanner, guide bush inner plate, line-up pin, dust extraction spout, fine height adjuster & carry case.

  3 Years Warranty on all Trend Power Tools when registered.
