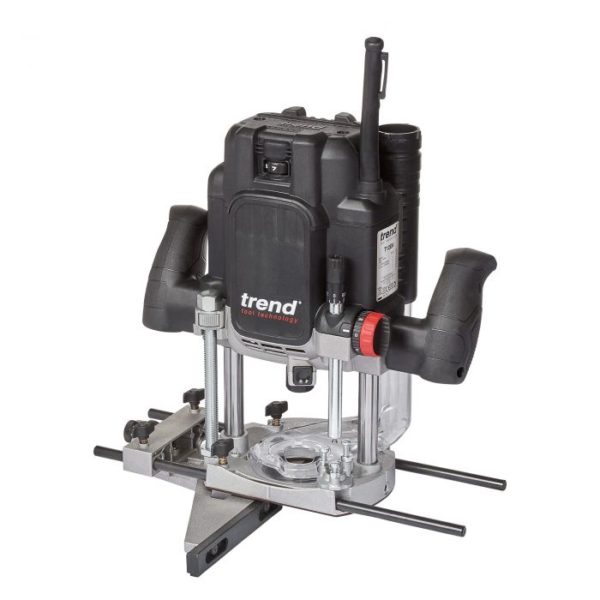

Designed for all types of routing applications including templating, lock fitting, worktop joints and timber profiling.
Powerful motor with full wave electronics for a constant high power, torque and speed. 7-level variable speed control ranges from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications.
80mm plunge depth is perfect for deep cutting applications and the auto-lock lever allows users to quickly, accurately and safely reposition the plunge position without releasing the handles. The plunge depth limiter is easy to set and prevents over-cutting.
Quick-set depth post with rack and pinion 1.0mm indexed increments and zeroing function for fast, easy adjustment. Micrometer fine height adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment.
Soft-start safety feature eliminates kick-back and the anti-restart protection prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is interrupted and then restored.
Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
Precision centring system features a unique guide bush centring pin and adaptor plate that ensures perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.

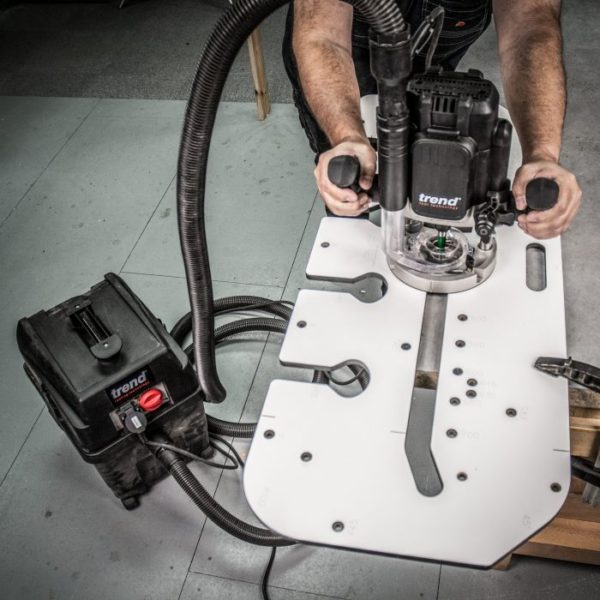

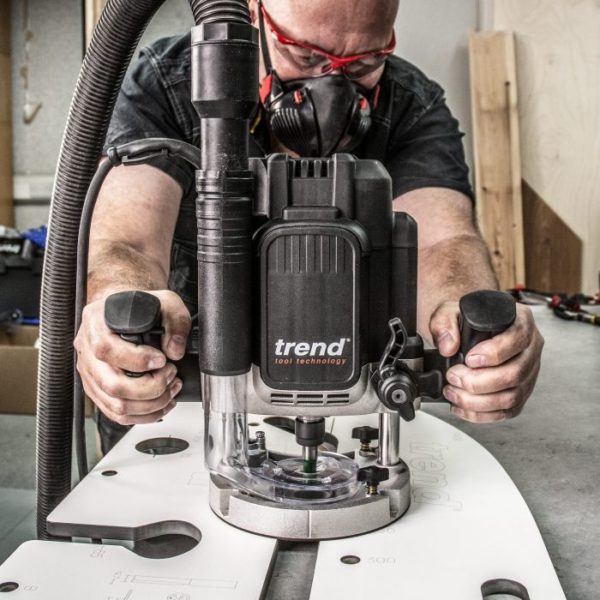

Top-mount cyclone extraction with enhanced dust adapter efficiently clears debris to give users 360° visibility and prevent extraction hoses from ‘snagging’.

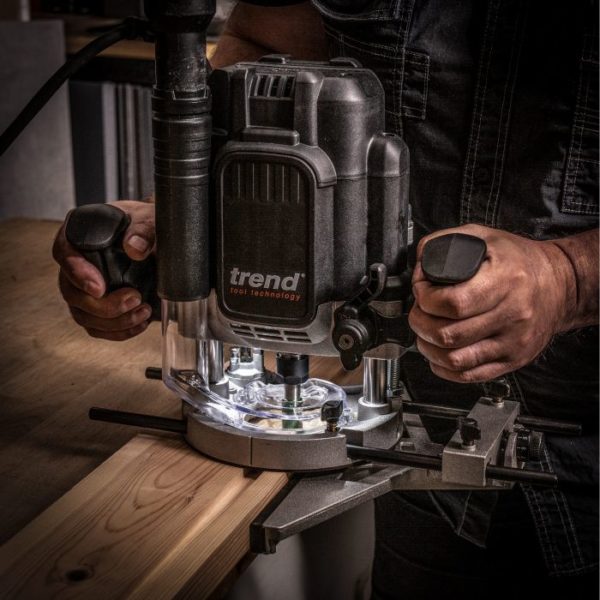

Ergonomic inclined handles support a natural wrist position, minimises strain, and increases control when routing with arms outstretched. The integrated power trigger built into the handle for precise and safe control of the router’s on/off function.
Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding.

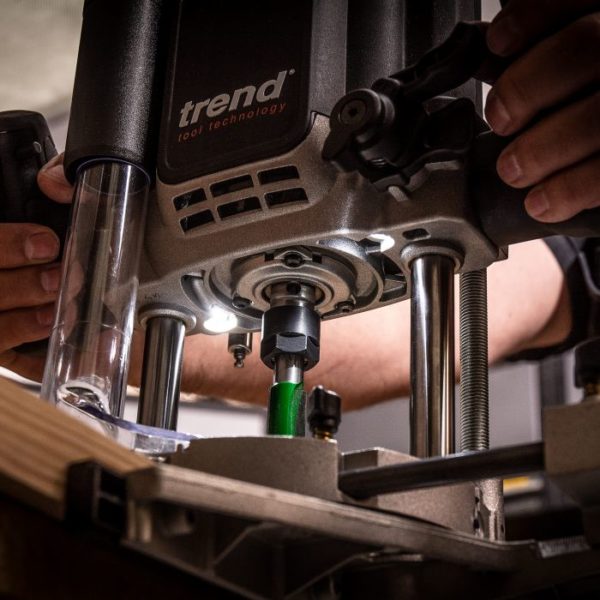

Automatic LED work lights allow users to accurately position the cutter in low-light situations, prior to engaging the material and making costly errors.
Anti-scratch base plate made from replaceable, smooth phenolic materials for a low-friction routing experience.
3-position rotating turret is used to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
Spindle Lock for quick and easy router cutter changes.
Specification:
Collect Capacity: ½”
Motor 110V/240V: 2,100W/2,300W
Max. Plunge Stroke: 80 mm
No Load Speed: 9,000 – 22,000 rpm
Base Aperture Diameter: 70 mm
Max. Cutter Diameter: 50 mm
Dust Spout Internal Diameter: 35 mm
Sound Pressure (Lpa): 95.1 dB(A)1
Acoustic Pressure (Lwa): 106.1 dB(A)2
Hand/Arm Vibration: <2.1 m/s2
Power Cable Length: 3.5 M
Weight: 6.4 kg

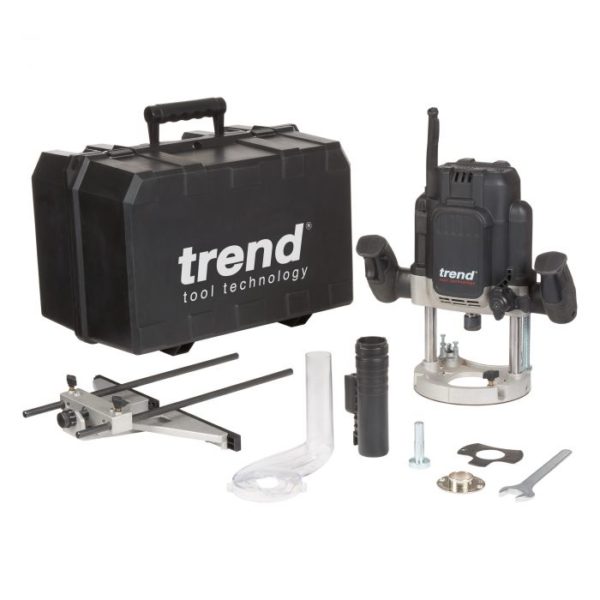

Included as Standard: ½” collet, micro-adjustable side fence, 30mm guide bush, 22mm spanner, guide bush inner plate, line-up pin, dust extraction spout & carry case.
3 Years Warranty on all Trend Power Tools when registered.
