Trend SNAP/MB/35DS Snappy 35mm TCT Hinge Hole Borer c/w Stop

Manufacturer: Trend

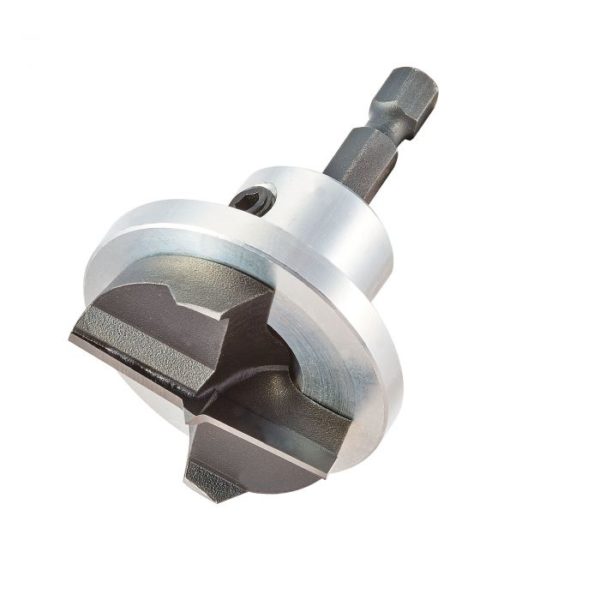

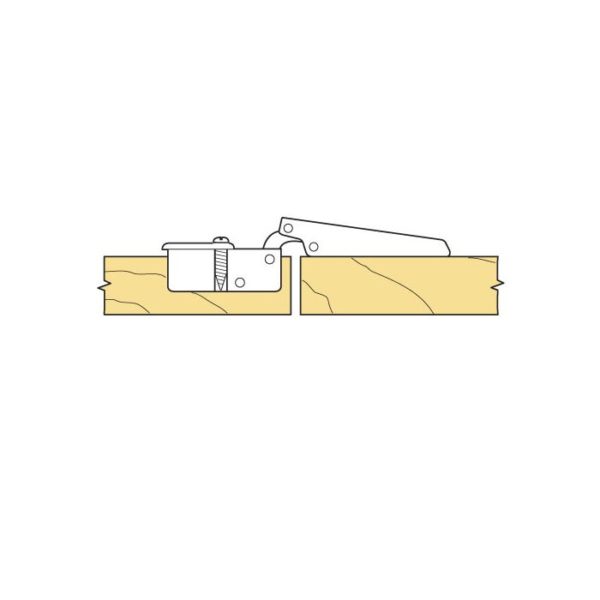

• Trend SNAP/MB/35DS is a tungsten carbide tipped Snappy 35mm diameter machine drill boring bit, designed to drill consistent 35mm diameter holes for circular concealed hinges in kitchen and cabinet doors.




  Read more

  Features a lightweight aluminium depth stop for a consistently accurate recess depth.

  The adjustable depth stop can be set from 9mm to 13mm deep using the access viewing hole for fast and accurate setting – hex key included.

  TCT construction ensures maximum durability and long life performance in abrasive materials.

  Cutting spurs scribe the outer edge to leave perfect clean holes.

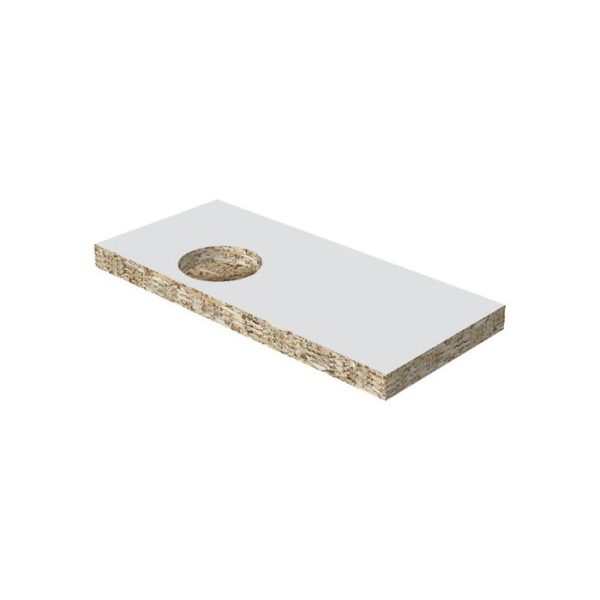

  Designed for use in MDF and laminated chipboard materials.

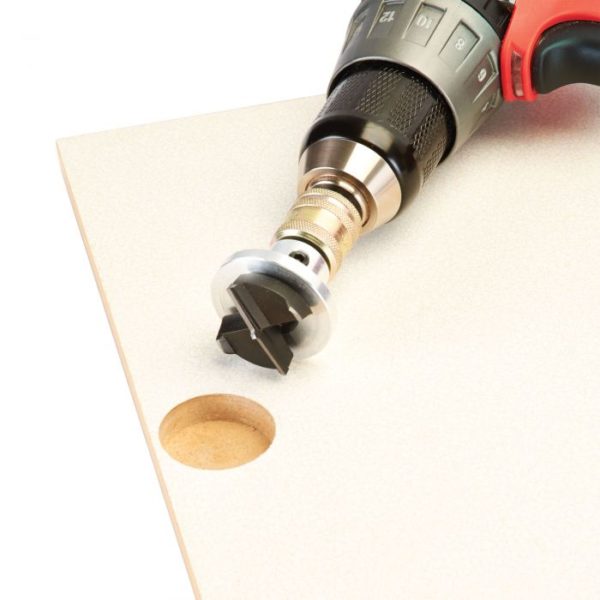

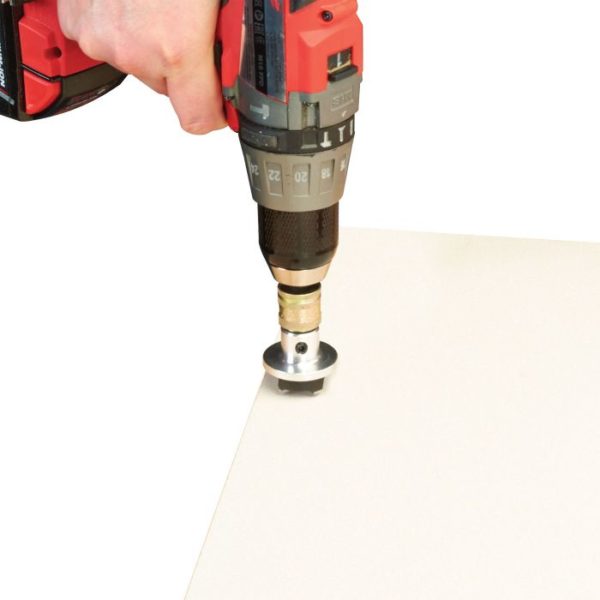

  Snappy ¼” hex shank fitting can be used in conventional drill chucks, quick release adaptors or impact drivers. Use in a pillar drill is recommended for maximum accuracy.

  Specifications:

  Diameter (D):            35mm / 1 3/8”

  Overall Length (OL):     60.0mm
