Designed to be used for new joints, repair work and with different thicknesses of materials.

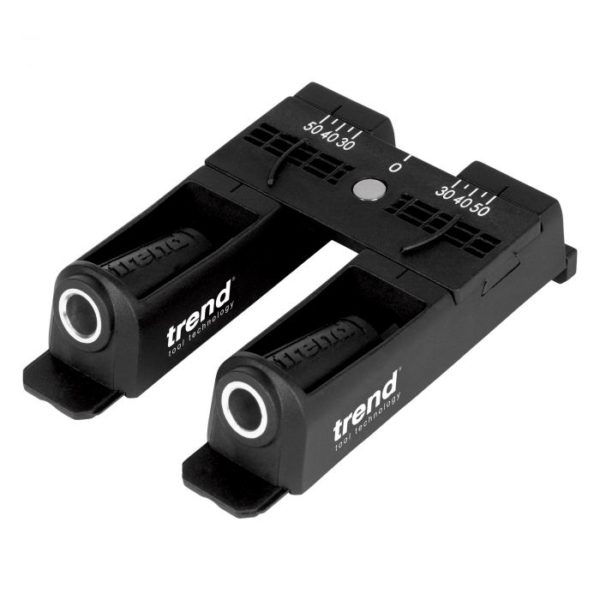

Multi-function jig for drilling 9.5mm pocket hole joints, in single or multiple fixing positions.
Lightweight glass-fibre reinforced nylon construction with full-length, hardened drill guide bushes.
Unique drill depth setting system for fast set-up on materials from 12.7mm to 38mm.
Adjustable centres are ideal for narrow and wide stock, and can be altered between 28mm and 50mm ensuring stronger joints in wider material.
The drill guides can be separated for narrow stock or use in difficult to access areas.
Material thickness gauge allows rapid checking of material thickness, without the need for a tape measure.
Pre-set depth gauge adjusts the pocket position to suit the timber thickness.
Full length hardened drill guide bushes ensure accurate drilling and long service life.
Woodchip relief holes helps protect against clogging inside the drilling guides.
Flip-over end stop allows the jig to hook over for an external joint, or butt up to an edge for an internal joint.
Specification:
Min. material thickness: 12.7mm
Max. material thickness: 38mm
Hole pitch: 28mm – 50mm
Drill diameter: 9.5mm
Drilling angle: 15 degrees

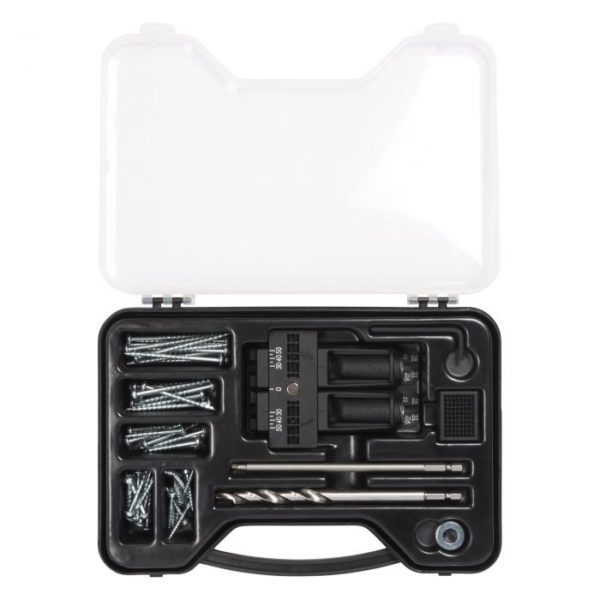

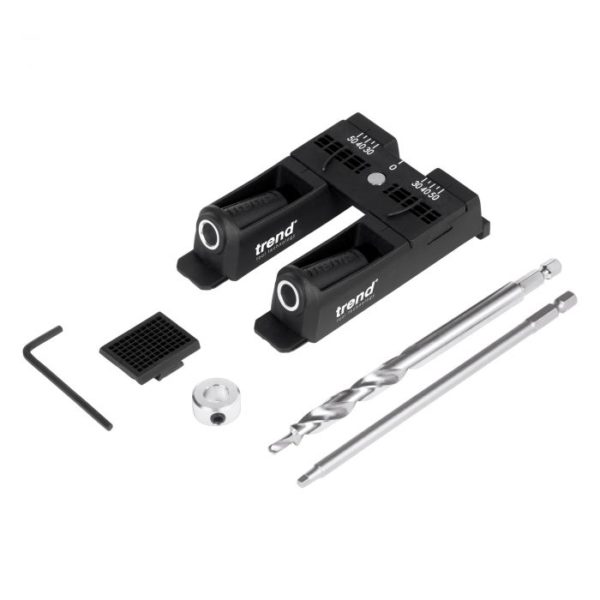

Included as Standard: 50x assorted screws, HSS drill bit with collar, 150mm square drive bit, adaptor plate, hex key & carry case.
