Trend PH/JIG All-Metal Pocket Hole Jig Kit

Manufacturer: Trend

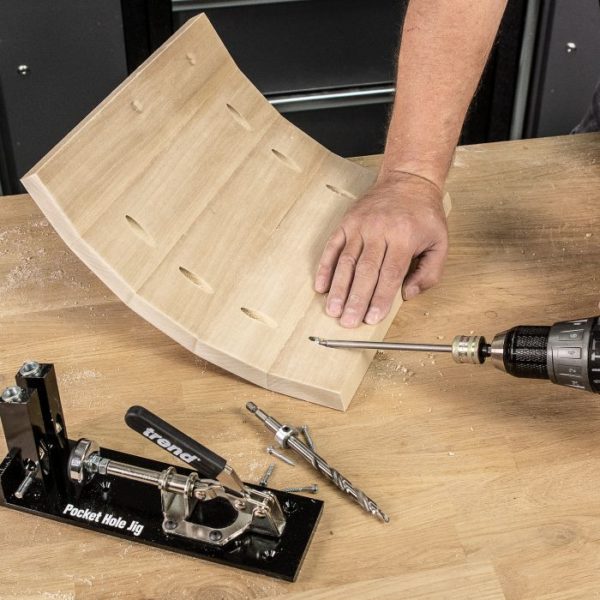

• Trend PH/JIG is an all-metal Pocket Hole Jig for fast and accurate joining of timber, plywood and board materials.




  Read more

  Designed to drill 9.5mm diameter pocket hole joints, for both new joints and repair work.

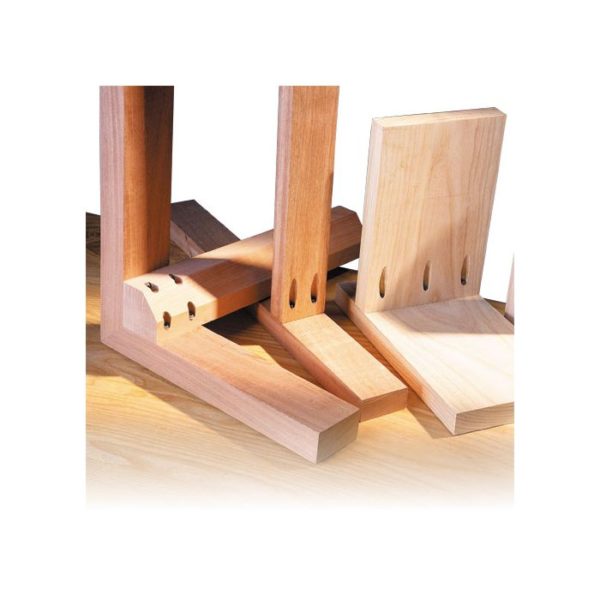

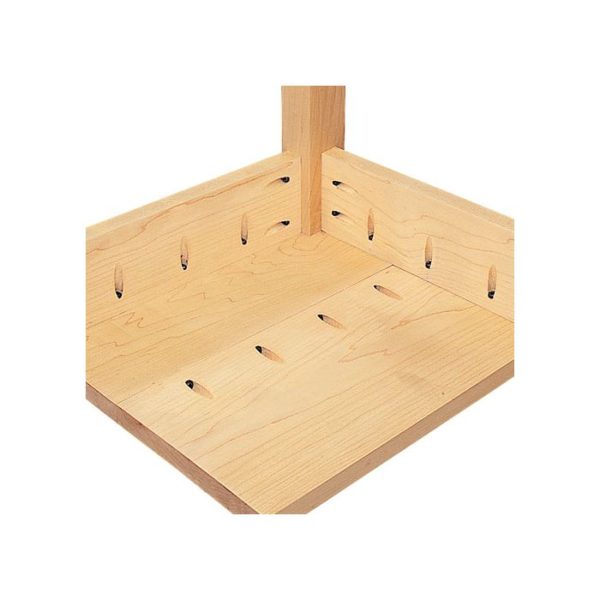

  Adjustable hole centres for narrow and wider stock, perfect for carcase and face framework.

  Repositionable drilling guides allows the hole centres to be altered between 29mm and 63mm, ensuring stronger joints in wider materials.

  The drilling guides are removable and can be used independently for repair work and difficult to access areas.

  On-board adjustable face clamp with quick-release mechanism.

  Secondary clamping position allows the clamp to reposition for wider stock.

  Woodchip relief holes helps protect against clogging inside the drilling guides.

  Full length hardened drill guide bushes ensure accurate drilling and long service life.

  Non-marring clamp pad prevents pressure marks on the workpiece.

  Countersink screw positions allows the jig to be screwed down to a base board or workbench, for extra support and stability in use.

  Specification:

  Min. material thickness: 16mm

  Max. material thickness: 38mm

  Min. material width: 38mm

  Hole pitch: 29mm – 63mm

  Drill diameter: 9.5mm

  Drilling angle: 15 degrees

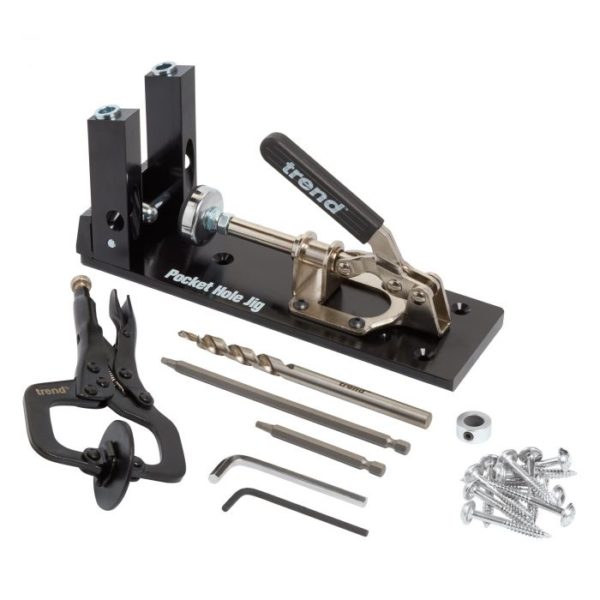

  Included as Standard: 100x No.7 x 30mm fine screws, face clamp, HSS drill bit with collar, 75mm square drive bit, 150mm square drive bit & 2 x hex keys.
