Trend LOCK/JIG Lock Jig Kit c/w Cutter

Calculating latest stock
TREND LOCK/JIG LOCK JIG KIT C/W CUTTER
Code: 48634
Part No: LOCKJIGXTRE
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:19
Spend over £30+vat for a FREE GIFT
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
Derby
7 in stock
Out of stock
Nottingham
3 in stock
Out of stock
Burton
3 in stock
Out of stock
Mansfield
3 in stock
Out of stock
Chesterfield
3 in stock
Out of stock
£99.00 each
exc. VAT
£118.80 each
inc. VAT
Add to order

Product Overview

Manufacturer: Trend

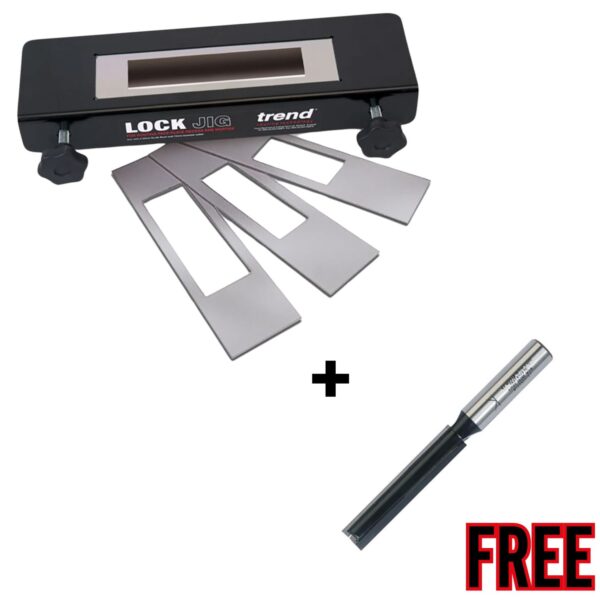

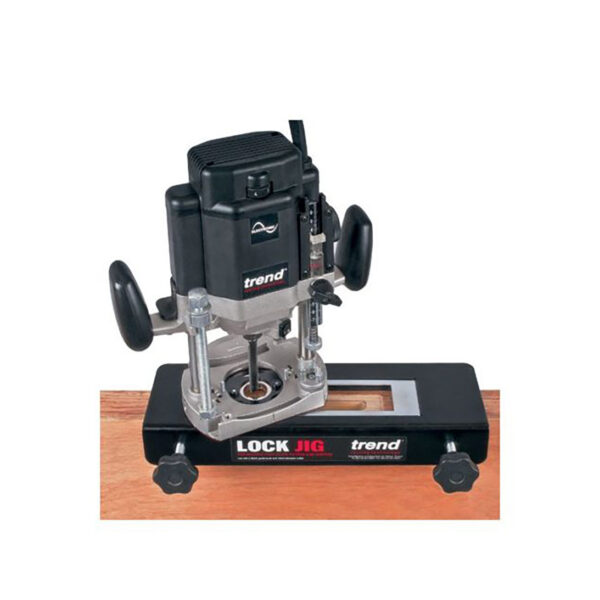

  • The Trend LOCK/JIG is a contractor jig with interchangeable templates, to cut the mortise and face-plate recesses for popular door locks, when used in conjunction with a plunge router. This Trend LOCK/JIG kit comes with a FREE Trend T37X1/2TC cutter.


    Designed for routing the most common sash mortises and dead locks, with up to 75mm/3” deep mortises and a 22mm/ 7/8” or 25mm/1” face-plate.

    Deeper mortises can be achieved with a suitable sized auger drill bit.

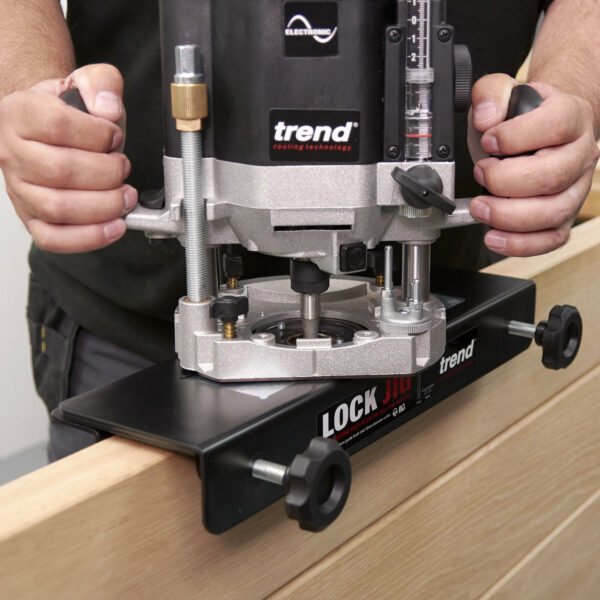

    Fast, clean and accurate results on doors from 34mm to 58mm thick, even in hardwood.

    Precision manufactured steel plates and body.

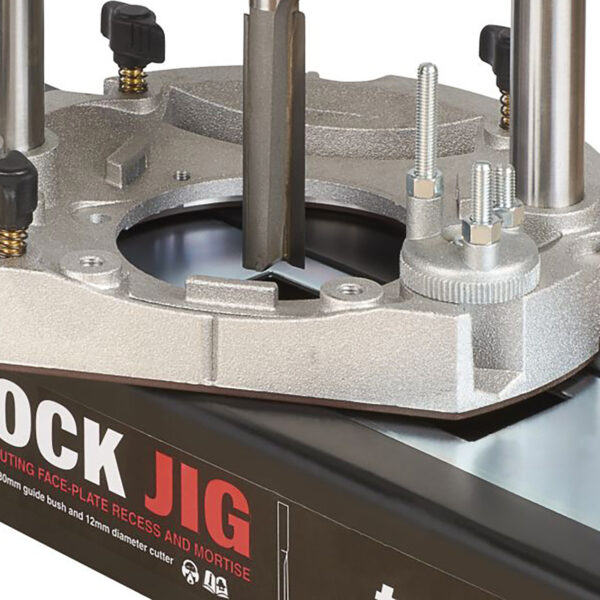

    Use with any ½” router with 80mm plunge depth, 12.0mm diameter long reach straight router cutter and 30mm template guide.

    Trend recommend using the GB30 30mm template guide bush with a 6mm spigot length. You can also use the GB160 16mm template guide in conjunction with the 16mm to 30mm guide bush collar that comes with the jig.

    Most makes and models of router can be used with a Trend UNIBASE to accept the Trend range of template guide bushes for optimum accuracy.

    Specification:

    Minimum door thickness: 34mm

    Maximum door thickness: 58mm

    Template outer size: 234.3 x 59.8 x 1.5mm

    Included as Standard: Guide bush collar, line-up template, 12x faceplate templates & 4x mortise lock templates.

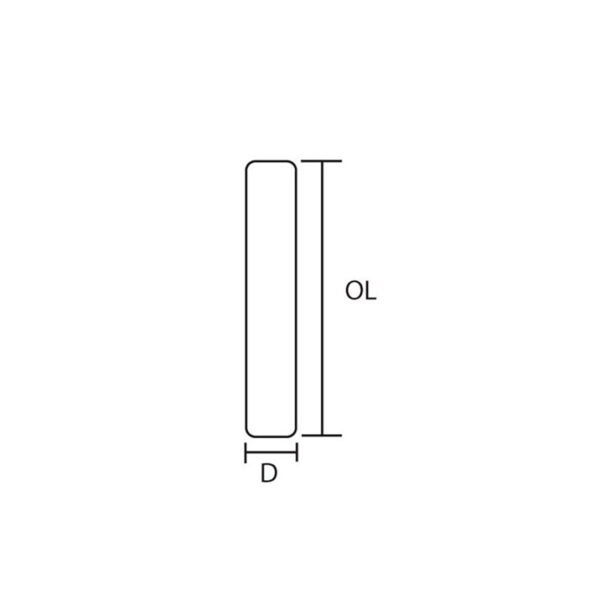

    Faceplate templates included (D x OL):

    Template 1: 22.2 x 156mm (7/8" x 6 1/8")

    Template 2: 22.5 x 152.5mm (7/8" x 6")

    Template 3: 25.4 x 121mm (1" x 4 3/4")

    Template 4: 25.4 x 127.5mm (1" x 5")

    Template 5: 25.4 x 133.5mm (1" x 5 1/4")

    Template 6: 25.4 x 145mm (1" x 5 3/4")

    Template 7: 25.4 x 153mm (1" x 6")

    Template 8: 25.4 x 156.5mm (1" x 6")

    Template 9: 25.4 x 165.5mm (1" x 6 1/2")

    Template 10: 25.4 x 177mm (1" x 7")

    Template 11: 25 x 57.5mm (1" x 2 1/4") upper / 26 x 56.5mm (1" x 2 1/4") lower

    Template 12: 25.6 x 162mm (1" x 6 3/8")

    Mortise lock templates included (D x OL):

    Template A: 16 x 72mm (5/8" x 2 7/8")

    Template B: 16 x 107mm (5/8" x 4 1/4")

    Template C: 19 x 78mm (3/4" x 3 1/8")

    Template D: 19 x 109mm (3/4" x 4 1/4")

    Nb. These are maximum mortise lock case body lengths, unless radius ends are squared with a chisel. Actual length of mortise is 7mm longer.
