Trend KWJ900 900mm Worktop Jig
Product Overview
Manufacturer: Trend
-

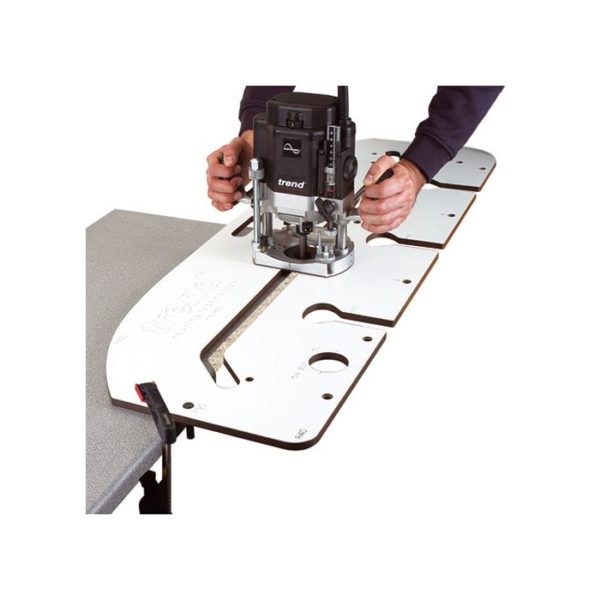

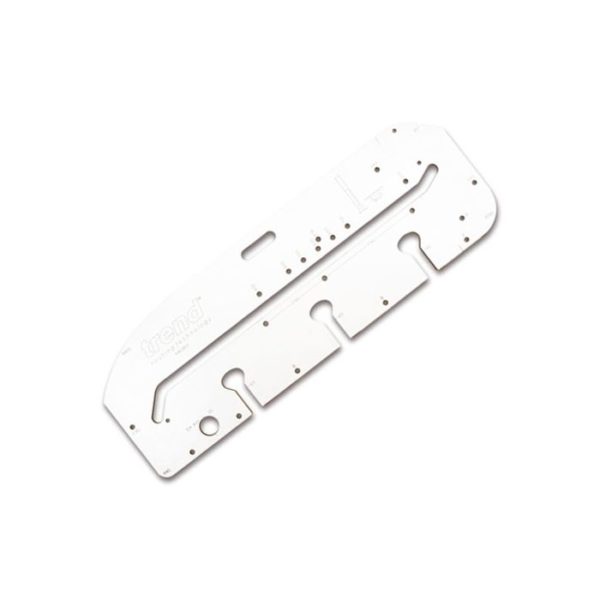

Trend KWJ900 is an all-in-one jig for routing worktop joints up to 900mm, when used in conjunction with a plunge router.
Read more
Manufactured from 12mm CNC-machined compact grade High Pressure Laminate for maximum precision, strength and durability.

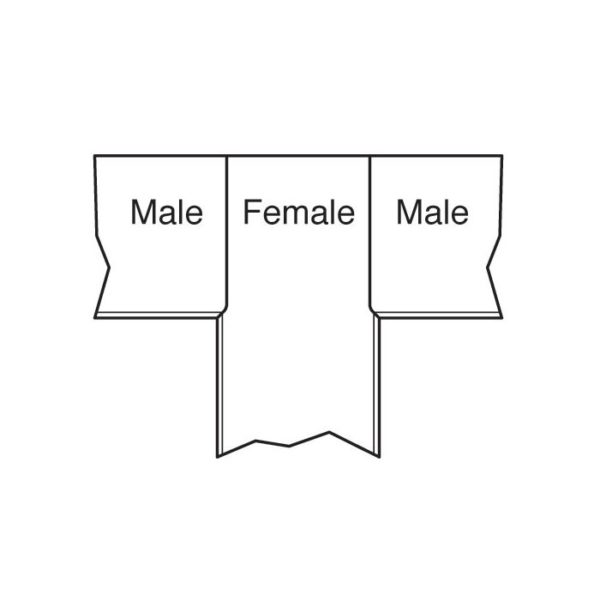

Cut a full male and female joint, in just 15 minutes, including set-up time.

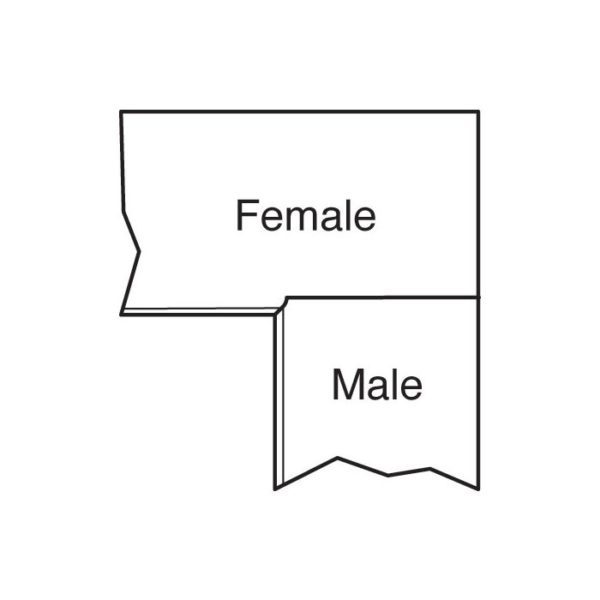

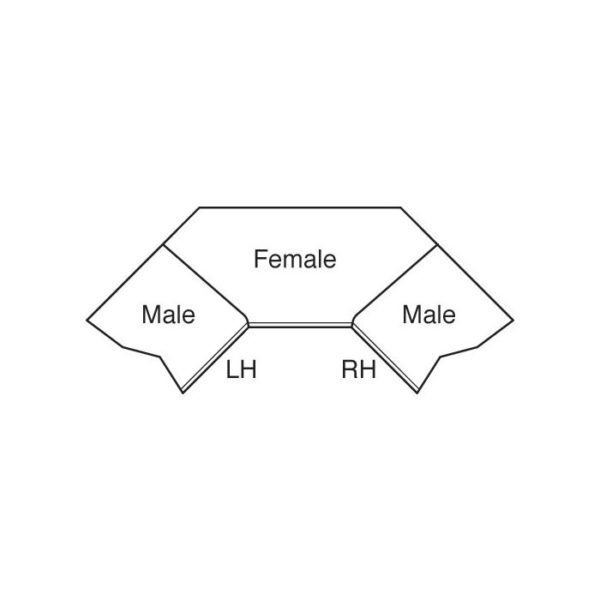

Nine functions in one: Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm concealed hinge hole and ¾” BSP hole for mixer taps.
Fixed lengths for 400mm, 500mm, 550mm, 600mm, 616mm, 635mm, 650mm, 700mm and 900mm wide worktops.
Cuts up to 40mm thick worktops with or without anti-drip postformed edge.

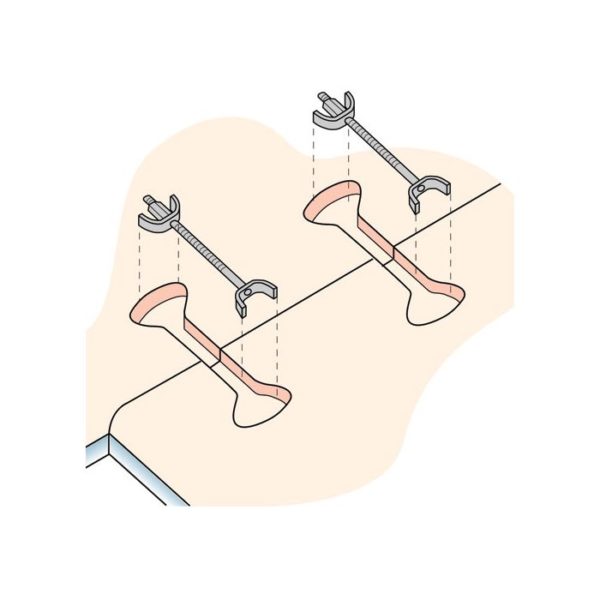

Three open-ended bolt recesses for 150mm worktop connectors.
Engraved lines for short 65mm bolts and worktop cross-cut.
10mm diameter durable ABS plastic pins, with tapered shoulder for tight fit, provides three point pin contact to ensure ease of setting up.
Engraved markings for identification of pin holes.
Use with any 1300W+ ½” router, 12.7mm diameter straight router cutter x 50mm cutting length, 30mm template guide and 2 x clamps.
Trend recommend using the GB30/A 30mm template guide bush with a 10mm spigot length.
Most makes and models of router can be used with a Trend UNIBASE to accept the Trend range of template guide bushes for optimum accuracy.
Supplied with clear comprehensive instructions.
