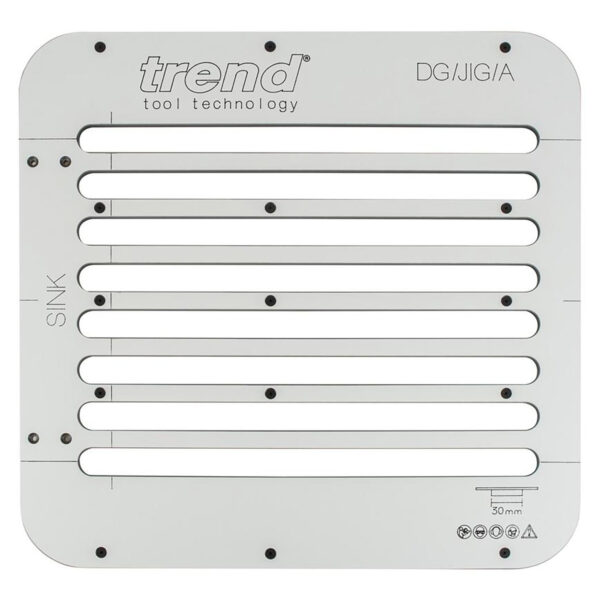

Trend DG/JIG/A Draining Groove Jig

Manufacturer: Trend

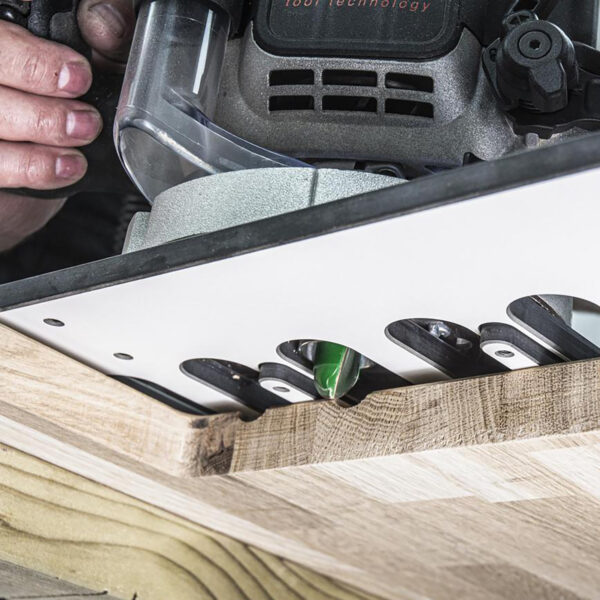

• A precision jig for routing draining grooves in solid timber and compact laminate worktops when installing Belfast, farmhouse, and undermount sinks.




  Read more

  CNC-Machined Compact Grade HPL provides precision, strength and durability.

  3 Support Runners to minimise jig deflection and maximise router support.

  8 Drainer Grooves at 50mm pitch and 455mm long.

  Etched Sight Lines for quick setup.

  In-Built 0.5° Fall to minimize setup time and remove the need for spacers.

  Edge Guide Fixing Holes to accommodate user-made edge guides for repetitive installations.

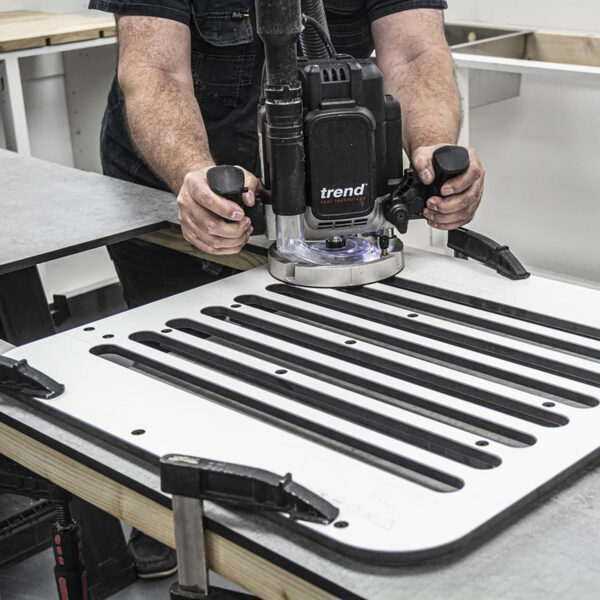

  Requires: ½” router (min.1300W), cutter and 2 x F-Clamps.

  Recommended cove router cutter options: C056AX1/2TC (9.5mm radius) or C054AX1/2TC (6.3mm radius).

  Specification:

  Fall: 0.5 °

  Groove Pitch : 50 mm

  Groove Length: 445 mm

  Jig Length: 625 mm

  Jig Width: 585 mm

  Jig Thickness: 12 mm

  Weight: 4.3kg
