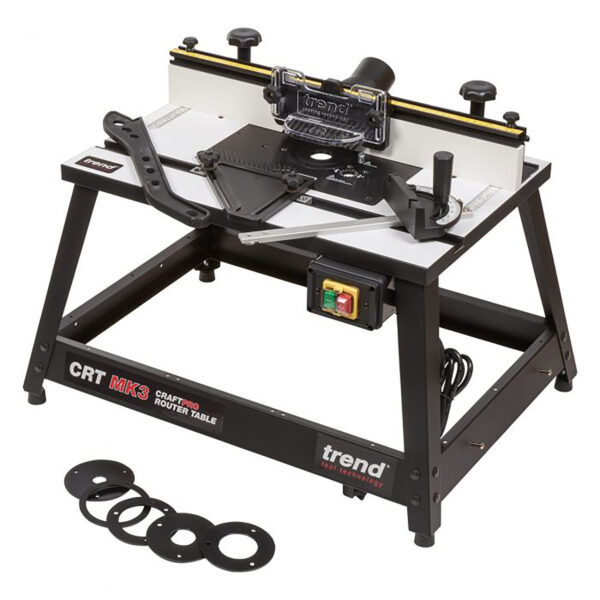

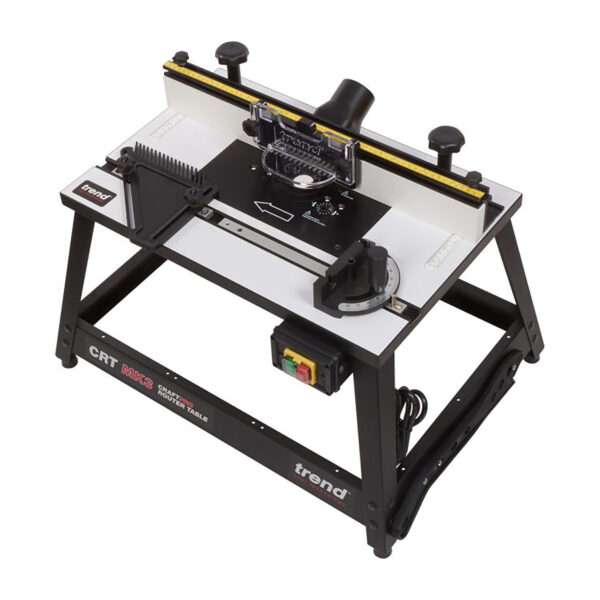

Trend CRT/MK3 240V Portable Benchtop Router
Product Overview
Manufacturer: Trend
-
The Trend CRT/MK3 Portable Benchtop Router Table is made for workshops and construction sites as it uses precision engineered components to deliver high quality, consistent and accurate results. Perfect for Panel Raising, Templating and Batch Cutting applications.
Read more
Steel Frame Construction designed for stability, durability, portability & easy router access.
Large Laminated Table Top provides an ultra-durable, stable and flat surface for friction-free stock feeding.
NVR Power Safety Switch allows safe operation from the table edge across a wide range of routers.
68mm Extra-Deep Adjustable Fence offers excellent support for a range of material thicknesses.
Precision Aluminium Extrusion with a wide base, ensures perfect squareness of the fence facings to the table for accurate routing.
Adjustable Melamine Facings with durable, smooth surfaces for easy and safe stock feeding.
57mm Dust Extraction Port provides high volume extraction to optimise safety, cut quality and accuracy.
6.35mm Anodised Aluminium Plate prevents deflection and sagging when heavy routers are fitted.
Trend Base Configuration (TBC) features 3 screw holes for easy, direct mounting of Trend T8, Trend T11, Trend T14 and other compatible routers.
Levelling Screws around the perimeter of the plate, to perfectly adjust the infeed and outfeed and prevent stock from snagging.
Router Raiser Aperture allows the cutter height to be easily and safely adjusted from above the table (with Trend T8, T11 & T14 routers).
x7 insert Rings support stock transition past the cutter and maximise safety.
Feather Boards apply even vertical and horizontal pressure to the stock as it passes the cutter.
Mitre Fence with adjustable and indexed positions to create perfect angled cuts.
Transparent Cutter Guard allows users to see the stock progression while keeping fingers away from the cutter.
T-Slot Accessory Track for secure & flexible positioning of feather boards & guards.
Jointing and Planing facility for straightening and planing stock.
Lead-On Starter Pin for use when templating with bearing guided cutters.

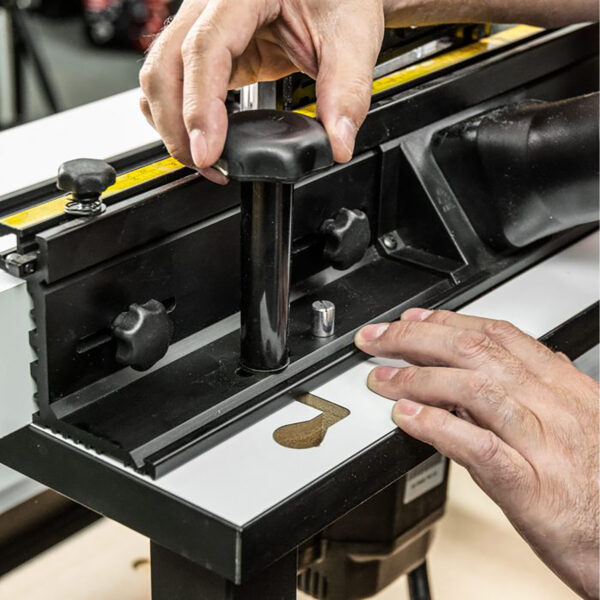

Tall Fence Locking Knobs with user-friendly, oversized grips that sit above the fence for easy operation and prevention of knuckle injuries.
Direction Arrow indicates the correct path for the stock to be fed safely past the cutter.
Top Tape Scale with Metric & Imperial graduations for stopped cuts and repeat settings.
Push Stick with ergonomic, long reach handle to safely slide thinner stock past the cutter.
Push Stick Storage keeps it close at hand when not in use.
Router Raiser Storage keeps the adjuster readily to hand on the infeed side of the table.
Lead-On Starter Pin Storage for safe keeping.
Cable Cleats keep power cable secure, safe and tidy.
Non-Slip Feet keep the table in position during use or transportation.
Specificiation:
AC Voltage: 240V
Plug Type: UK 3 pin
Bench Height: 410mm
Tabletop Size: 610 x 405 x 26mm (W/D/H)
Back Fence Height: 68mm
Dust spout Aperture: 57mm
Router Cutter Apertur: 98mm
Insert Ring Sizes: 83 / 68 / 54 / 35 / 31.8 / 67.5 / 20mm
Max Cutter diameter: 80mm
Max Cutter Height: 55mm
Max Stock Length: 590mm
Max Stock Thickness (with pressures): 60mm
Max Stock Width (with pressures: 120mm
Edge Planing: 1.4mm & 2.4mm
Weight: 13.6kg
Power Cable Length: 1.6m
Included as Standard: Table top, Table legs & rails, Release switch, Insert plate, Back fence, Dust spout & Top guard.
