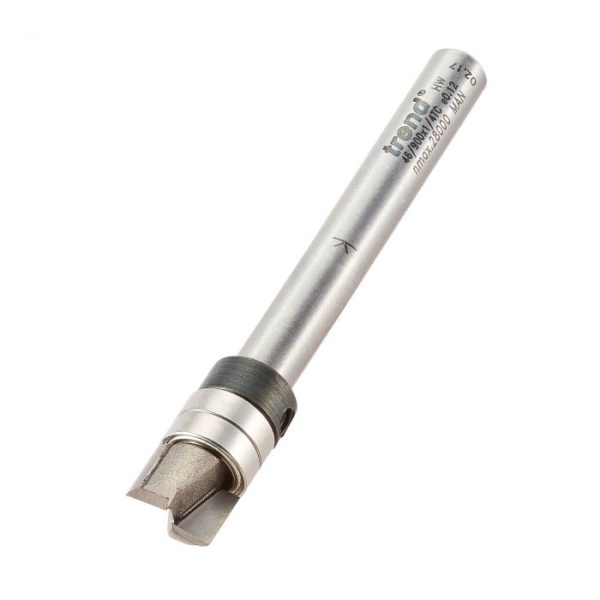

Trend 46/900X1/4TC 9.5mmØ x 6mm Profiler Router Cutter 1/4"

Manufacturer: Trend

• Trend 46/900X1/4TC professional double bearing guided 90° profiler router cutter for the most demanding applications.




  Read more

  The Trend Professional range feature specially developed micro-granular tungsten carbide tips from the world’s leading carbide manufacturer.

  Self-guiding profiler router cutter with twin shank mounted bearings on to the top of the cutter.

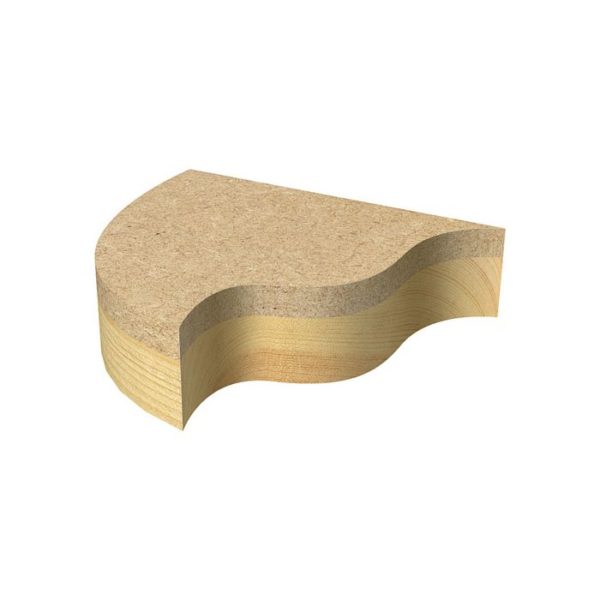

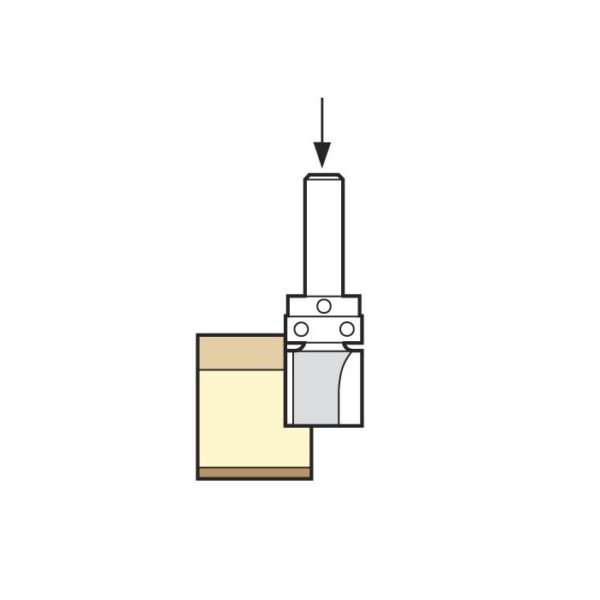

  Designed for following templates with a router mounted above or below a table.

  Two flutes – a combination of two parallel TCT cutting edges produce an excellent finish.

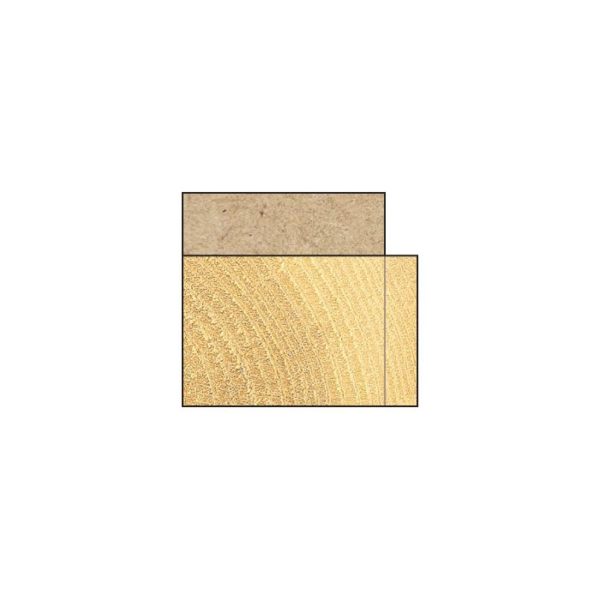

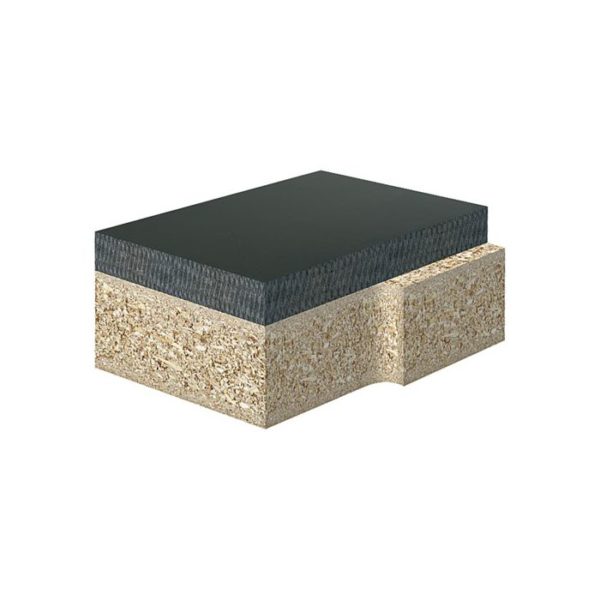

  For profiling and rebating applications only; not for plunge cutting or grooving.

  A maximum of 3mm overlap should be left before trimming.

  Shorter cutter length is perfect for use on thin boards. Also ideal for template making.

  Continuous laboratory testing of tools during the production process ensures all Trend Professional Router Cutter tooling meets the safety standards set by EN847.

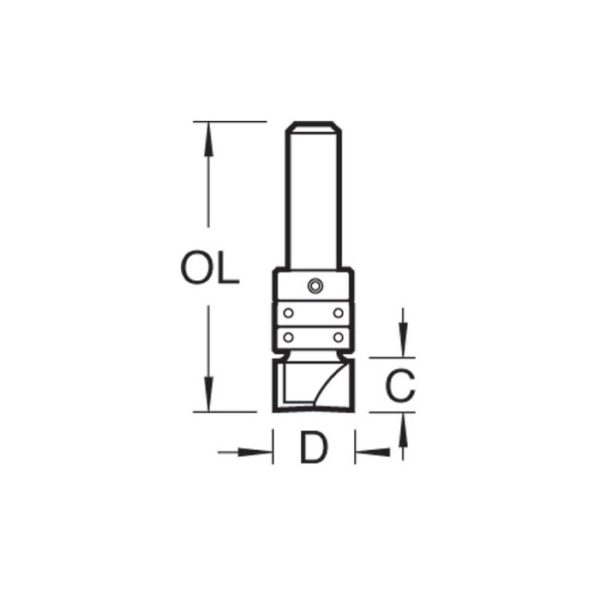

  Specifications:

  Diameter (D): 9.5mm / 3/8”

  Cutting Length (C): 6.35mm

  Bearing Diameter (B): 9.5mm

  Angle (A): 90°

  Shank (S): ¼”
