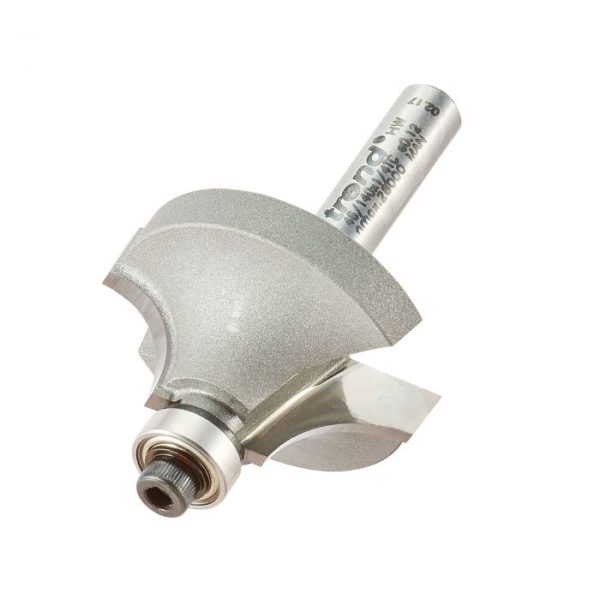

Trend 46/140X1/4TC 9.5mmR x 32.0mmØ Ovolo Router Cutter 1/4"

Manufacturer: Trend

• Trend 46118X14TCT professional self-guiding ovolo and rounding over router cutter for the most demanding applications.




  Read more

  The Trend Professional range feature specially developed micro-granular tungsten carbide tips from the world’s leading carbide manufacturer.

  Used in conjunction with a router – no side fence required.

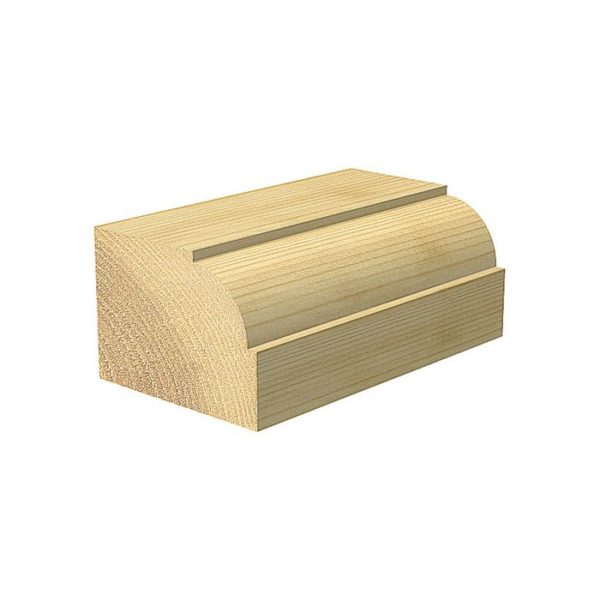

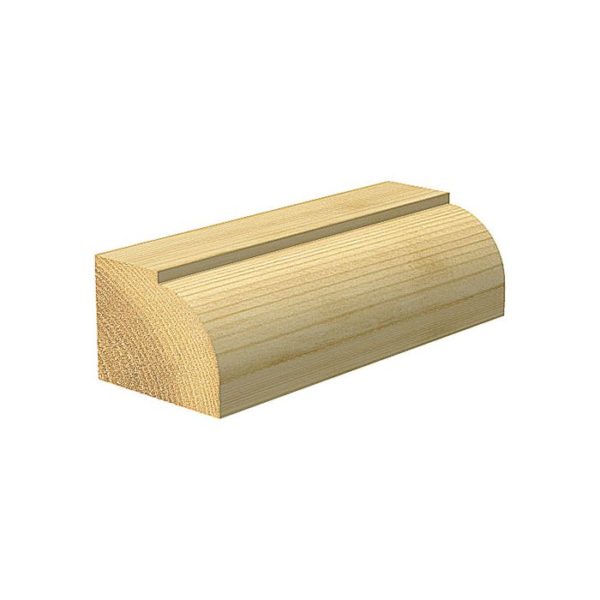

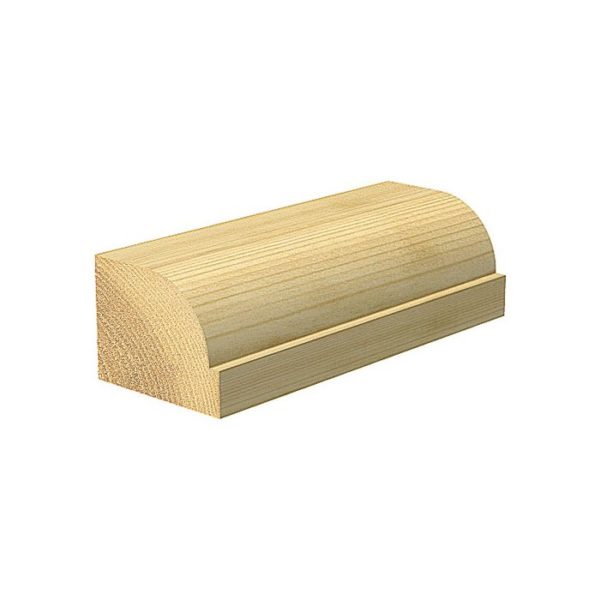

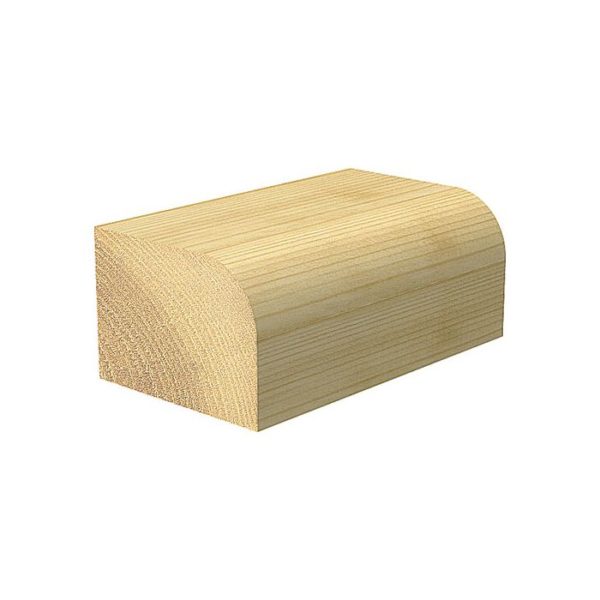

  Supplied with two bearings as standard with the larger bearing used for rounding over and the smaller one lowers the cutter for a top quirk.

  Ovolo router cutters are perfect for bullnosing stair treads by taking a second pass from the opposite side of the workpiece.

  They are also commonly used to provide a decorative finish on furniture or window frames, to create a radius edge or beading.

  Continuous laboratory testing of tools during the production process ensures all Trend Professional Router Cutter tooling meets the safety standards set by EN847.

  Specifications:

  Radius (R): 9.5mm/ 3/8”

  Diameter (D): 32.0mm

  Cutting Length (C): 16.0mm

  Bearing Diameter (B): 9.5mm

  Bearing Diameter (B2): 12.7mm

  Shank (S): ¼”
