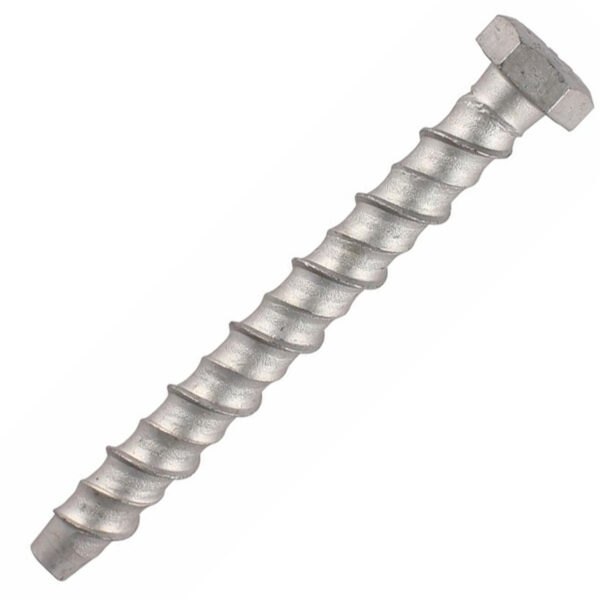

That has a unique patented concave thread design which taps its own thread and provides rapid, low torque installation with exceptional pull-out resistance.
It allows the user to adjust or remove the bolt ensuring a secure and accurate installation.
This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as through bolts, shield, sleeve and drop in anchors.
|
Code
|
Fixing
Diameter
|
Fixing
Length
|
Head
Type
|
Max. Fixture
Thickness
|
Drill Bit
Size
|
Min. Drill
Depth
|
Hex
Socket
|
|
25400
|
6mm
|
50mm
|
Hex Flange
|
20mm
|
6mm
|
30mm
|
10mm
|
|
25401
|
6mm
|
75mm
|
Hex Flange
|
45mm
|
6mm
|
30mm
|
10mm
|
|
25402
|
6mm
|
100mm
|
Hex Flange
|
55mm
|
6mm
|
45mm
|
10mm
|
|
25403
|
6mm
|
130mm
|
Hex Flange
|
85mm
|
6mm
|
45mm
|
10mm
|
|
25404
|
6mm
|
150mm
|
Hex Flange
|
105mm
|
6mm
|
45mm
|
10mm
|
|
25405
|
8mm
|
60mm
|
Hex
|
20mm
|
8mm
|
40mm
|
15mm
|
|
25406
|
8mm
|
75mm
|
Hex
|
35mm
|
8mm
|
40mm
|
15mm
|
|
25407
|
8mm
|
100mm
|
Hex
|
60mm
|
8mm
|
40mm
|
15mm
|
|
25408
|
8mm
|
130mm
|
Hex
|
90mm
|
8mm
|
40mm
|
15mm
|
|
25409
|
8mm
|
150mm
|
Hex
|
110mm
|
8mm
|
40mm
|
15mm
|
|
25410
|
10mm
|
60mm
|
Hex
|
10mm
|
10mm
|
50mm
|
17mm
|
|
25411
|
10mm
|
75mm
|
Hex
|
25mm
|
10mm
|
50mm
|
17mm
|
|
25412
|
10mm
|
100mm
|
Hex
|
50mm
|
10mm
|
50mm
|
17mm
|
|
25413
|
10mm
|
130mm
|
Hex
|
80mm
|
10mm
|
50mm
|
17mm
|
|
25414
|
10mm
|
150mm
|
Hex
|
100mm
|
10mm
|
50mm
|
17mm
|
|
25415
|
12mm
|
75mm
|
Hex
|
15mm
|
12mm
|
60mm
|
19mm
|
|
25416
|
12mm
|
100mm
|
Hex
|
40mm
|
12mm
|
60mm
|
19mm
|
|
25417
|
12mm
|
130mm
|
Hex
|
70mm
|
12mm
|
60mm
|
19mm
|
|
25418
|
12mm
|
150mm
|
Hex
|
90mm
|
12mm
|
60mm
|
19mm
|
|
25419
|
12mm
|
200mm
|
Hex
|
140mm
|
12mm
|
60mm
|
19mm
|
