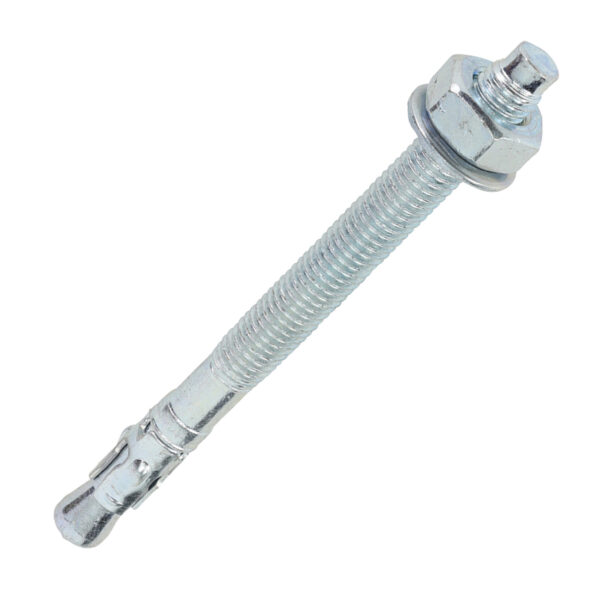

Through Bolt Zinc Plated Wedge Anchor

Calculating latest stock

Klarna 0% finance available on orders over £99 inc. vat

Product Overview

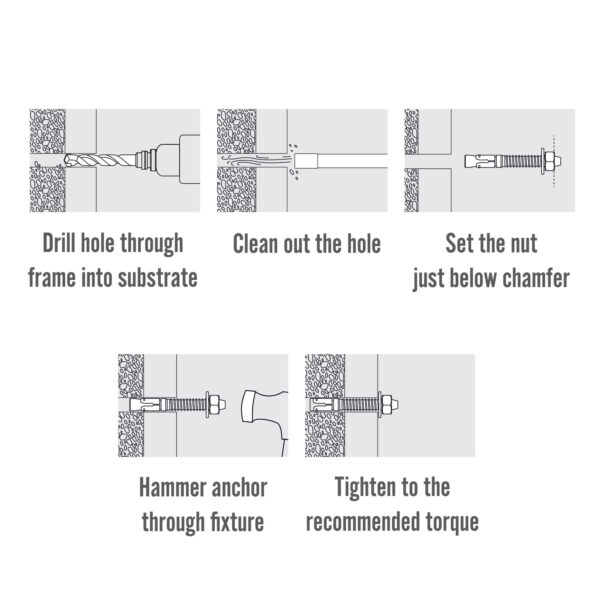

  • A versatile, torque controlled throughbolt for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.


    Read more

    Features:

    Chamfered head design to prevent damage to thread during installation

    Zinc plated and passivated (3-5 microns)

    Manufactured from cold formed carbon steel (grade 5.8)

    Special expansion clip for rapid installation

    Heavy machinery can be bolted into place without being moved.

    If sizes required are not available in the drop-down product menu, please contact us for availability.

    Technical Data – Substrate: Concrete ≥ 25N/mm2









    Size Ø (mm)

    M8

    M10

     M12

     M16

    M20

    Socket Size (mm)

    13

    17

    19

    24

    30

    Drill Hole Ø (mm)

    8

    10

    12

    16

    20

    Fixture Clearance Hole Ø (mm)

    9

    12

    14

    18

    22

    Embedment Depth (mm)

    35

    45

    50

    65

    80

    Min. Drill Hole Depth (mm)

    45

    50

    60

    75

    90

    Centre Spacing (mm)

    110

    140

    150

    200

    240

    Edge Distance (mm)

    55

    70

    75

    100

    120

    Min. Structure Thickness (mm)

    70

    90

    100

    130

    160

    Rec. Tightening Torque (Nm)

    15

    30

    45

    100

    160

    Rec. Tensile Load (kN)

    2.92

    4.11

    7.25

    8.08

    11.15

    Max. Rec. Load (kg)

    292

    411

    725

    808

    1115



    Thread Ø x L (mm)

    Max. Fixture Thickness (mm)

    M8 x 50

    5

    M8 x 65

    10

    M8 x 80

    25

    M8 x 100

    45

    M8 x 130

    75

    M10 x 65

    5

    M10 x 75

    10

    M10 x 100

    35

    M10 x 120

    55

    M12 x 80

    5

    M12 x 100

    25

    M12 x 120

    45

    M12 x 140

    65

    M12 x 180

    105

    M16 x 105

    5

    M16 x 125

    20

    M16 x 150

    45

    M16 x 175

    70

    M20 x 130

    5

    M20 x 160

    30

    M20 x 215

    85
