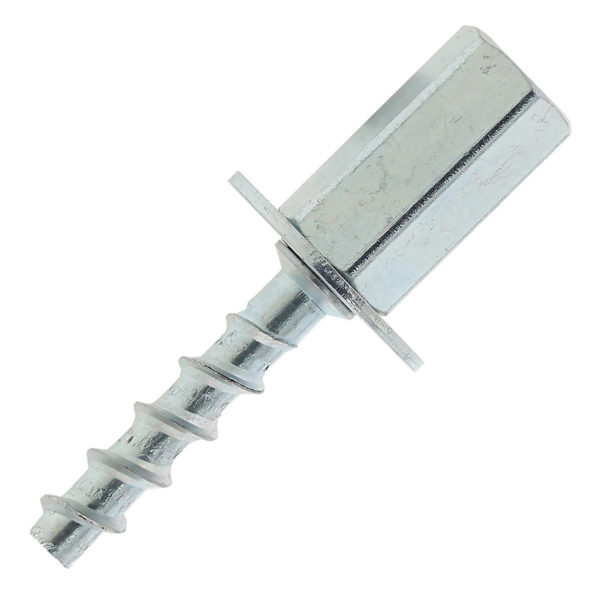

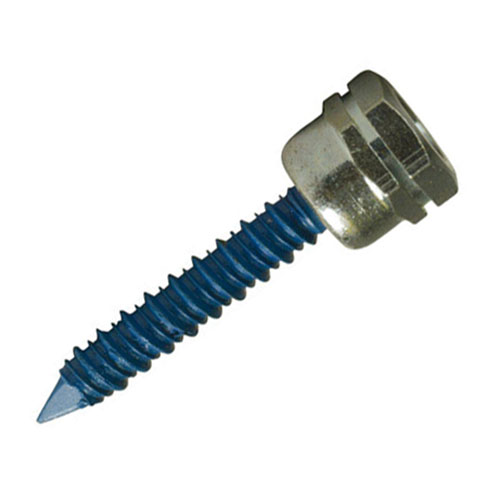

Spit Tapcon Rod Hanger

Manufacturer: Spit

• Self tapping rod hanger for fixing into concrete and pre-cast concrete.




  Read more

  Faster alternative to traditional drop-in anchors, designed specifically for over head threaded rod applications.

  No setting tool is required. The anchor does not expand, therefore a fixing can be achieved close to an edge. 35mm embedment avoids rebar.

  Perfect for the installation of cable tray, duct work and air conditioning units.

  ETA Option 1 approved anchor for cracked and non-cracked concrete.

  New patented thread design for increased load and fast installation.

  Suitable for use in hollow concrete slab.

  Dual M8/M10 thread.

  Fire rated up to 2 hours.

  Non-flammable steel fixing which conforms to BS 7671:2018 – 18th edition; for supporting wiring systems using materials which are unlikely to collapse prematurely in the event of a fire.



  Code	Thread Diameter	Anchor Length	Drill Bit Size	Minimum Embedment	Hex Socket
  25115	M8/M10	35mm	6mm	35mm	13mm



  nb. ‘Thread Diameter’ relates to the diameter of threaded rod to be screwed into the anchor. The masonry anchor tapping thread requires the same pilot hole diameter for all sizes.
