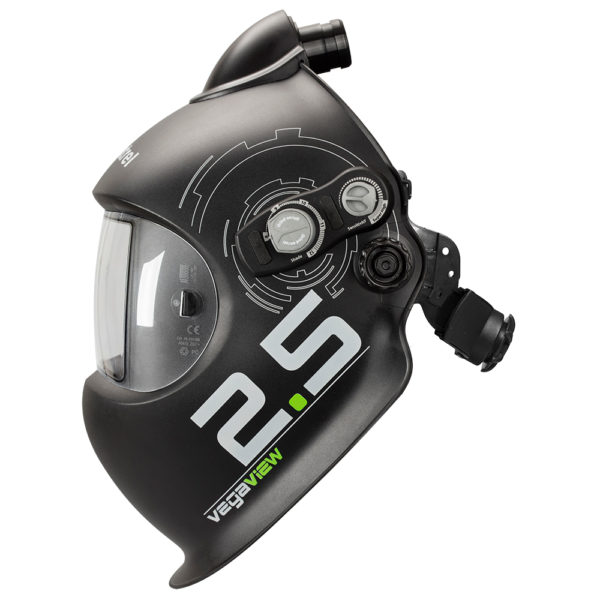

Optrel Vegaview 2.5 PAPR ADF Welding Helmet 2.5/8-12

Manufacturer: Optrel

• The Optrel Vegaview 2.5 PAPR ADF welding helmet 2.5/8-12 has a non-reactive shade level of just 2.5 delivering a new visual experience when in non-reactive light state. Using a revolutionary lens that is 4 X brighter than traditional auto darkening lenses, a much brighter view of the working environment and overall surroundings is achieved, improving safety and efficiency. Designed to be paired with the Optrel E3000X PAPR TH3P system, offering the highest levels of protection against fine dust, fumes, mist and spores as well as ozone odours, acidic gases, organic and inorganic vapours when fitted with the optional A1B1E1 filter.




  Read more

  Features:

  Seeing real colours before you strike the arc is made possible using Optrel’s optic technology.  Now you can enjoy a detailed and true-colour view of the welding process at shade levels between 8-12.

  Damage from spatter and sparks laying on the lens during overhead welding are avoided, due to the deflective properties of the sphere shaped front cover lens.

  Grind mode is activated by simply clicking the grind mode button on the outside of the helmet, you can how see your surroundings in light state 2.5.

  Outside adjustment of the shade level allows the shade levels to be adjusted during the welding process without the need to remove the helmet.

  Vegaview 2.5 can be used for many welding applications, offering adjustable shade levels from 8 to 12.

  Sensitivity function prevents the ADF lens from being prematurely activated in certain lighting environments or if a number of welders are working in close proximity.

  The comfort head band allows weight to be distributed evenly, reducing loads placed on the head and neck, improving comfort and reducing wearer fatigue. A patented eccentric adjustment feature allows the operator to increase or decrease the gap between the chin and mask reducing glare under the helmet.

  The patented sensor slide allows the detection angle to be reduced from 120° to 60° to prevent the ADF from responding to welding nearby.

  The opening delay function controls the shutter delay time after welding, helping to protect the welders eyes and reduce eye fatigue.

  Weighing only 689 grams, the Optrel Vegaview 2.5 PAPR helmet offers the highest levels of particulate protection when connected to the E3000X powered air purifying respirator, whilst reducing neck strain and fatigue.

  EN379 classification

  Optical class:1

  Scattered light:1

  Homogenity:1

  Angular dependence:2

  Shade levels

  Non-reactive shade level: 2.5 – suitable for grinding applications.

  Variable shade levels: 8-12

  Included as standard:  Welding helmet, instruction manual, storage bag, batteries, front cover lens x 1.

  Exclusive 3 Years Warranty on all Optrel Welding Helmets excluding Batteries when registered.
