Features:
With traditional welding helmets, peripheral vision is improved by using a larger ADF. Although this achieves a greater field of vision, it also increases weight and can leave the welding helmet feeling unbalanced. Thanks to a unique auto darkening filter with a nose cut-out, the display is positioned closer to the eyes and thus enlarges the field of vision six-fold with no extra weight.
A specially developed UV/IR filter allows the welder to view the workpiece in realistic colour.
Detection of the arc brightness and fully automated shade level adjustment from 5 to 12.
With its rechargeable power-pack, changing and disposing of batteries is not required, reducing cost and damage to the environment.
A total of 5 sensors – one central and four corner mounted, ensure the auto darkening glare shield is activated and deactivated perfectly, even in the most difficult lighting conditions and positions during welding.
With traditional welding helmets, peripheral vision is improved by using a larger ADF. Although this achieves a greater field of vision, it also increases weight and can leave the welding helmet feeling unbalanced. Thanks to a unique auto darkening filter with a nose cut-out, the display is positioned closer to the eyes and thus enlarges the field of vision six-fold with no extra weight.
A specially developed UV/IR filter allows the welder to view the workpiece in realistic colour.
Detection of the arc brightness and fully automated shade level adjustment from 5 to 12.
With its rechargeable power-pack, changing and disposing of batteries is not required, reducing cost and damage to the environment.
A total of 5 sensors – one central and four corner mounted, ensure the auto darkening glare shield is activated and deactivated perfectly, even in the most difficult lighting conditions and positions during welding.

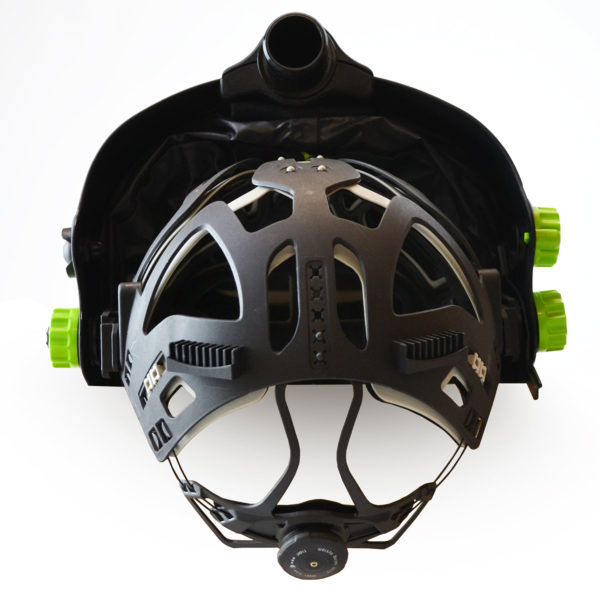

Optrel IsoFit Headgear
Standard inside all versions of Panoramaxx welding helmets is Optrel IsoFit; the ultimate in wearer comfort. The IsoFit cradle is the only head band available that enables the wearer to adjust width, length and height simultaneously, with the turn of a single rotary wheel. An ingenious cable hoist system expands and contracts to give a glove like fit, applying equal pressure at every contact point. This ensures there is no pinching, slipping or chafing, offering unrivalled comfort and practicality. IsoFit is the perfect companion if you have to weld for long periods of time or need to work in multiple positions and want the helmet to remain in place. Despite the headband or cradle being the interface between the helmet and the wearer, it is often overlooked by manufacturers and users alike. The Optrel IsoFit headgear system combines technology and comfort, resulting in improved productivity and safety in welding applications.

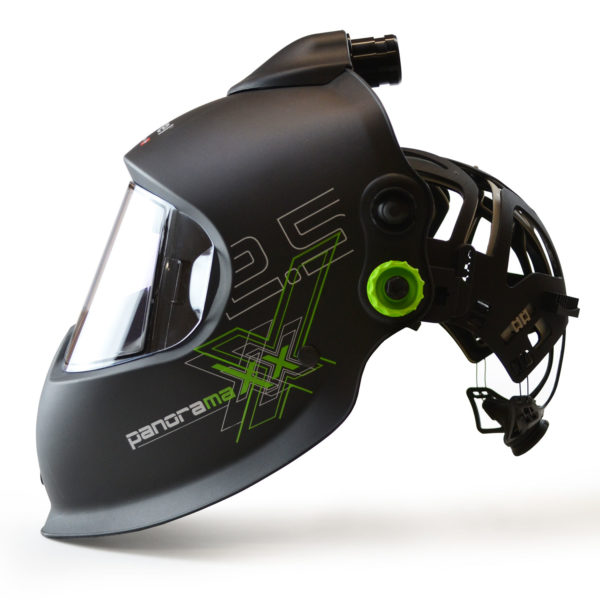

Panoramaxx combines Optrel’s latest innovations with an unprecedented panorama view, making it the most advanced welding helmet of its time.
Optrel Panoramaxx 2.5 weighs just 745 grams.
EN379 classification
Optical class:1
Scattered light:1
Homogenity:1
Angular dependence:2
Shade levels
Non-reactive shade level: 2.5 – suitable for grinding applications.
Manually activated shade levels: 7-12
Automatically activated shade levels: 5-12
Included as standard: Welding helmet, Optrel IsoFit Headgear, micro-USB charging cable, front cover lens, bag.
Exclusive 3 Years Warranty on all Optrel Welding Helmets excluding Batteries when registered.
