Optrel Panoramaxx 2.5 & E3000X PAPR Package

Manufacturer: Optrel

• The Optrel Panoramaxx 2.5 & E3000X PAPR package features the Optrel Panoramaxx 2.5  welding helmet and E3000X TH3P rated PAPR system. With an improved field of vision and new levels of comfort from the IsoFit cradle, this combination is ideal for many dust free welding applications.




  Read more

  A high performance panoramic view welding helmet and TH3 PAPR system, which offers exceptional comfort, productivity and safety to the welder in a single package.

  Meets TH3 standards which only allow a maximum particulate ingress of 0.2%. Further protection from organic, inorganic, acid vapours and gases is also available by adding the optional A1B1E1 combination filter.

  The Optrel Panoramaxx 2.5 PAPR ADF welding helmet has been designed to increase the welders field of vision by up to 6 times, removing the feeling of tunnel vision and opening up the surrounding work area with no weight penalty.

  With traditional welding helmets, peripheral vision is improved by using a larger ADF. Although this achieves a greater field of vision, it also increases weight and can leave the welding helmet feeling unbalanced. Thanks to a unique auto darkening filter with a nose cut-out, the display in the Panoramaxx series is positioned closer to the eyes and thus enlarges the field of vision six-fold with no extra weight.

  A specially developed UV/IR filter allows the welder to view the workpiece in realistic colour.

  Fully automated shade level adjustment from 5 to 12.

  Panoramaxx features a rechargeable power-pack so changing and disposing of batteries is not required, reducing cost and damage to the environment.

  A total of 5 sensors – one central and four corner mounted, ensure the auto darkening glare shield is activated and deactivated perfectly, even in the most difficult lighting conditions and positions during welding.

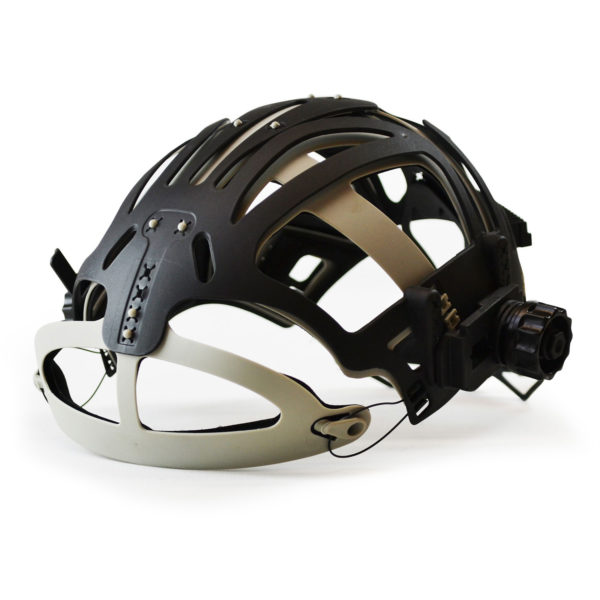

  Optrel IsoFit Headgear

  Standard inside all versions of Panoramaxx welding helmets is Optrel IsoFit; the ultimate in wearer comfort. The IsoFit cradle is the only head band available that enables the wearer to adjust width, length and height simultaneously, with the turn of a single rotary wheel. An ingenious cable hoist system expands and contracts to give a glove like fit, applying equal pressure at every contact point. This ensures there is no pinching, slipping or chafing, offering unrivalled comfort and practicality. IsoFit is the perfect companion if you have to weld for long periods of time or need to work in multiple positions and want the helmet to remain in place. Despite the headband or cradle being the interface between the helmet and the wearer, it is often overlooked by manufacturers and users alike. The Optrel IsoFit headgear system combines technology and comfort, resulting in improved productivity and safety in welding applications.

  Panoramaxx gives the welder a field of vision that is unprecedented and IsoFit brings a new level of comfort to welding helmets, making Panoramaxx range some of the most advanced welding helmets ever designed.

  Optrel Panoramaxx 2.5 weighs just 745 grams.

  EN379 classification

  Optical class:1

  Scattered light:1

  Homogenity:1

  Angular dependence:2

  Shade levels

  Non-reactive shade level: 2.5 – suitable for grinding applications.

  Manually activated shade levels: 7-12

  Automatically activated shade levels: 5-12

  E3000X PAPR

  Many tasks such as grinding, arc welding, routing and sanding, produce large amounts of fine dust particles, which can cause long term respiratory illnesses. Other applications such as spraying, painting or working with solvents can also be harmful and therefore need protecting against. When paired with the correct filter, the Optrel E3000X PAPR system is a highly effective, comfortable and economical solution for operators working in these environments where respiratory protection is essential.

  The Optrel E3000X powered air purifying respirator works by using a high powered motor to draw air through a high efficiency filter. Clean air is supplied to the operator through a breathing tube and compatible headtop from within the Optrel range. This positive pressure air delivery inside the selected headgear prevents any outside contaminants from entering, thus the wearer is protected. A major advantage of positive pressure air delivery is that it negates any face fit testing as the mask is not sealed to the face, breathing is also easier as the motor is pulling air through the filter and not the lungs. A continual flow of cooling air – up to 240 litres per minute, improves wearer comfort and increases productivity, especially during manual labour.

  Unlike many PAPR systems which work to the TH2P standard, allowing 2% of particulates to enter the mask, the Optrel range of powered air purifying respirators meet the highest level of dust and particulate protection available – TH3P. This elevated protection allows just 0.2% of particulate ingress offering 10 X better filtration when compared to some other powered respirators.

  During welding, an increase in ozone concentrations can cause an unpleasant odour resulting in headaches or even nausea, this can be alleviated by adding the optional Mountain Breeze odour filter or A1B1E1 combination filter.

  Should the pre or main filter become blocked during operation, an audible alarm is sounded and  the fan speed is reduced to the next lowest setting in order for immediate works to continue. Failure to address the saturated filter will eventually trigger a shut off device in the system.

  Key features

  Up to 18 hours of battery life.

  Brushless motor.

  Very high air flow and long run time rates:

  Level 1: min. 170 l/min, 18 hours

  Level 2: min. 210 l/min, 16 hours

  Level 3: min. 240 l/min, 13 hours

  Spark trap and Pre-filter system dramatically reduces running costs by sparing the main filter from heavy contamination.

  Audible alarm alert: blocked filter and no filter inserted.

  Built in flow sensor negates a manual air flow check as with other PAPR systems.

  Weight: 1560 grams including filter, belt and battery.

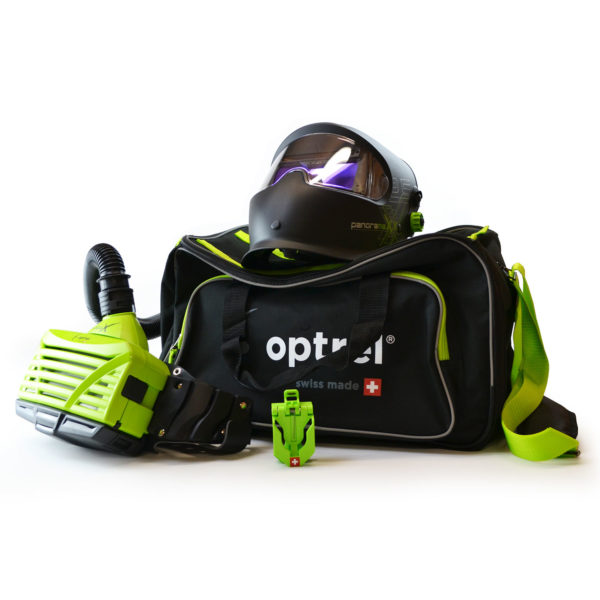

  Included as Standard: Blower unit with hose, TH3P R SL Filter, 18h LI-ion Battery, Leather belt, Universal charger, Parking buddy, Panoramaxx PAPR 2.5 welding helmet, Optrel IsoFit Headgear, Micro-USB charging cable, Bag.

  Warranty: E3000X – 2 years from date of sales for manufacturing and material defects, 6 months warranty for battery.

  3 Years Warranty on all Optrel Welding Helmets excluding Batteries when registered.
