Diamond core drill wet and dry with confidence, delivering corded performance with a maximum core diameter capacity of 152 mm.
Two-speed gearing with laser etched speed and capacity markings into the metal gearbox body, ensuring correct speed setting every time.
Speed 1: Up to 75 mm diameter wet & dry coring at 1600 rpm.
Speed 2: 76 to 152 mm diameter wet & dry coring at 800 rpm.
Patented AUTOSTOP™ clutch provides best in class protection, preventing over rotating should the core snag in the hole.
On-board level sensor guides the user to achieve a straight and accurate finish.
On-board pressure gauge allows user to optimise drilling speed in order to get the best lifetime out of the machine and diamond core bit.
On-board battery gauge allows the user to monitor battery capacity during the entire drilling process.
Integrated water line for wet coring that is compatible with the M18 SWITCH TANK interchangeable sprayer and water supply system.
Dual core reception with the universal 1 ¼″UNC and ½″ BSP diamond core threads; fits most common core types and brands.
Friction plate design allowing for easy diamond core changes.

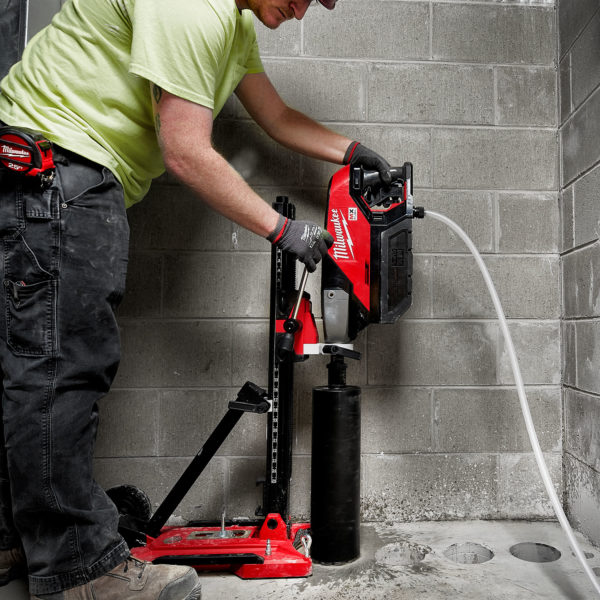

The separately available diamond core drill stand MXF DR255TV with 60 mm collar for mounting the core drill on to a stand. Universal 60mm mount on the diamond core drill also fits most other brands of core stands.
MX FUEL™ next generation POWERSTATE™ brushless motor, REDLINK PLUS™ electronics and REDLITHIUM™ battery pack deliver superior performance, durability and run time in high demand applications.
The MXF DCD150 core drill is ONE-KEY™ enabled for tool tracking & security, offering a cloud-based inventory management platform that supports both location tracking and theft prevention.
Specification:
Drilling capacity in concrete (1st/2nd gear): 76 – 152mm / 25 – 75mm
No load speed: 0 – 800 / 1600 rpm
Dual core reception: 1 ¼″UNC / ½″ BSP
Weight (without battery): 10.3 kg
Weight (with battery): 13.0 kg
Included at Standard: 2 x MXFCP203 3.0Ah Batteries, MXFC Fast Charger, Trigger lock-on, Side handle & Carry case.
2 Years Warranty on all Milwaukee MX FUEL Tools, Batteries & Chargers when registered.
