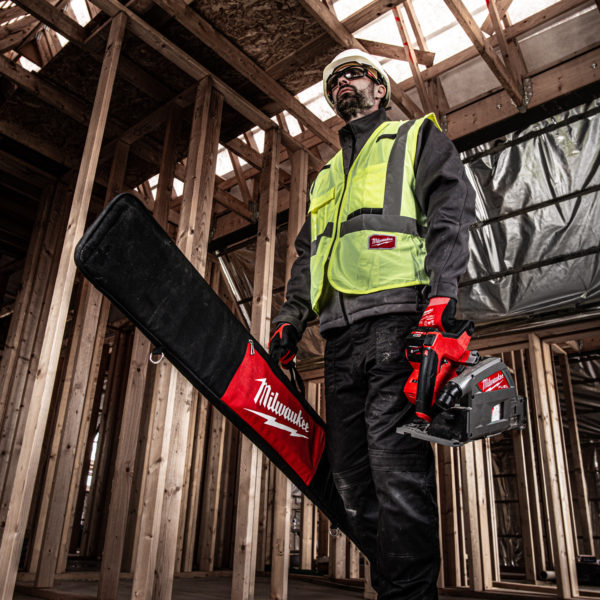

Milwaukee M18FPS55 18V 165mm Plunge Saw & Rail Kit – Body

Calculating latest stock
18V MILWAUKEE PLUNGE SAW BODY & RAIL KIT
Code: 34223
Part No: M18FPS550PGRKMI
Order For Delivery
Select the required delivery time and method at checkout.
Stock Available:Good Availability
Spend over £30+vat for a FREE GIFT
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
Derby
Good Availability
Out of stock
Nottingham
Good Availability
Out of stock
Burton
Good Availability
Out of stock
Mansfield
Good Availability
Out of stock
Chesterfield
Good Availability
Out of stock
Extra Savings on Milwaukee
Was £665.00Now £598.50 each
exc. VAT
Was £798.00Now £718.20 each
inc. VAT
Add to order

Product Overview

Manufacturer: Milwaukee

  • Milwaukee M18FPS55 18V Fuel 165mm Plunge Circular Saw is part of the Milwaukee Fuel range, with the latest brushless technology. The impressive Milwaukee M18 cordless platform is leading the way when it comes to performance and reliability for the industrial user. Body only saw supplied complete with a Milwaukee Guide Rail Kit.


    The Milwaukee M18FPS55 is designed or powerful cutting applications, particularly in woodworking and construction. Here are some of its key uses:

    Ripping solid hardwoods: The saw’s powerful motor allows it to cut through thick hardwoods with ease.

    Making precise plunge cuts: Its plunge function enables you to start cuts anywhere along the edge of a workpiece, making it ideal for tasks like creating pocket holes.

    Cutting long and straight lines: When used with a guide rail, the M18FPS55 can make long, accurate straight cuts.

    Cutting at various angles: It has a bevel adjustment for making angled cuts, such as those needed for mitre joints.

    Dust collection: The saw includes a dust bag to help keep your workspace clean.

    Features:

    The M18 FPS55 FUEL plunge saw delivers comparable power and performance to an equivalent AC mains plunge circular saw.

    Suppled complete with a Milwaukee Guide Rail Kit containing two GR1400 1400mm guide rails, connector bars and guide rail bag.

    The depth adjustment has two scales, one for when using with the guide rail and one for when using without the guide rail – easily adjusted by the press of a button

    Flat-sided blade guard which can be used as a guide against a wall or floor. The cutting line is only 12mm from the outer edge of the guard – perfect for expansion joints in wooden floors or trimming doors in situ.

    Cut line ‘window’ on the side of the saw, lets the user see the front of the blade when operating the saw.

    Sprung loaded retractable riving knife allows the riving knife to stay in position even when making plunge cuts, so the blade can be plunged into the material you are cutting at any point.

    Scoring stop facility allows a 1mm back cut to be made in the workpiece, minimising any chipping or splintering in laminated materials.

    Bevel adjustment has stops at 0°, 22.5°, 45°, and 48°, plus a useful -1° undercut setting, for producing visibly tight joints with a splinter-free finish – ideal for joining worktops.

    Easy blade change system, that not only locks the saw blade in position when loosening the blade flange but also eliminates the possibility of an accidental start-up.

    Designed for optimal dust extraction on the job site, due to the enclosed guard. Compatible with the Milwaukee DEK26 extraction system and also supplied with a dust bag as standard.

    Variable speed from 2500 rpm to 5600 rpm.

    Excellent runtime – capable of cutting 45 metres of 18 mm plywood on one 18V 5.5 Ah battery charge.

    Impressive power and performance levels – capable of effortlessly cutting 50mm oak.

    Flexible battery system, works with all Milwaukee M18 18V battery packs.

    Specification:

    Voltage: 18V

    Battery type: Li-ion

    Blade diameter: 165mm

    Blade bore size: 20mm

    Variable Speed: 2,500 – 5,600 rpm

    Max. Cutting Depth at 0°: 59mm/54mm with guide rail

    Max. Cutting Depth at 45°: 44mm/42mm with guide rail

    Bevel Range: -1° to 48°

    Weight with 5.5Ah Battery: 4.9kg

    Body Only and Guide Rail Kit – not supplied with batteries or charger.

    Included as Standard: 40T Saw Blade, XL Packout Box, 2 x GR1400 1.4M Guide Rails, 2 x Rail Connectors  & Guide Rail Bag.

    Exclusive 3 Years Warranty on all Milwaukee Power Tools including Batteries & Chargers when registered.
