Milwaukee M18FMS190 18V Fuel 190mm Slide Mitre Saw – Body

Manufacturer: Milwaukee

• Milwaukee 18V Generation II Fuel range with the latest brushless technology and 5.0Ah Redlithium-ion batteries. The impressive Milwaukee M18 cordless platform is leading the way when it comes to performance and reliability for the industrial user.




  Read more

  Milwaukee® designed and built brushless POWERSTATE™ motor, REDLINK PLUS™ intelligence system and REDLITHIUM-ION™ battery pack.

  190 mm blade delivers accurate cut capacities.

  Quick release bevel setting allows the simple setting of bevel angles.

  Large sliding fences gives maximum support to the material being cut.

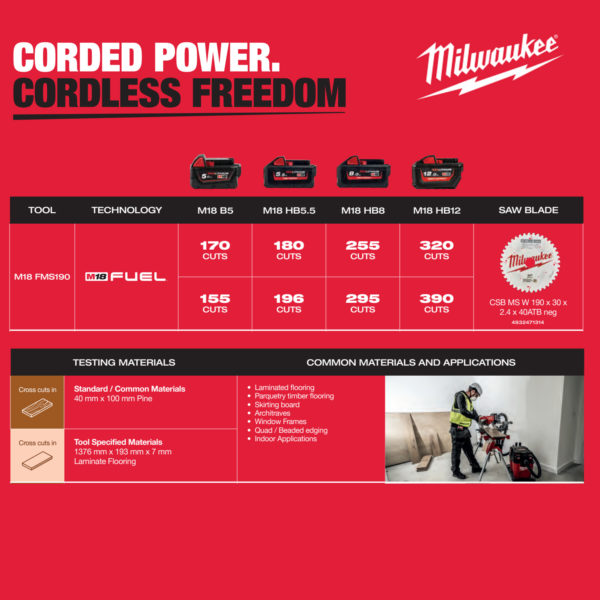

  Up to 600 cuts in 25 mm x 100 mm soft wood with a 5.0 Ah battery gives the ability to work a full day without recharging the battery.

  Light weight and portable at only 11.75 kg.

  Integrated carry handle.

  Steel detent plate with preset angles gives repeatable accurate cuts.

  LED light to illuminate the work piece and cut line.

  Specification:

  Bevel capacity left – 48°

  Bevel capacity right – 48°

  Blade diameter – 190mm

  Bore size – 30mm

  Max. cutting capacity 45° mitre/ 45° bevel – 152.7mm x 39.3mm

  Max. cutting capacity 45° mitre/ 90° bevel – 152.7mm x 55.4mm

  Max. cutting capacity 90° mitre 90° bevel – 215.5mm x 55.4mm

  Max. cutting capacity 90° mitre/45° bevel – 215.5mm x 39.3mm

  Max. cutting capacity at fence 0 mitre|0 bevel – 90.9mm x 21.8mm

  Max. cutting capacity at fence L45 mitre|0 bevel – 90.9mm x 20.3mm

  Max. cutting capacity at fence R45 mitre|0 bevel- 90.9mm x 17.8mm

  Mitre capacity left – 48°

  Mitre capacity right – 48°

  No load speed – 5000 rpm

  ‘Body Only’

  Exclusive 3 Years Warranty on all Milwaukee Power Tools including Batteries & Chargers when registered.
