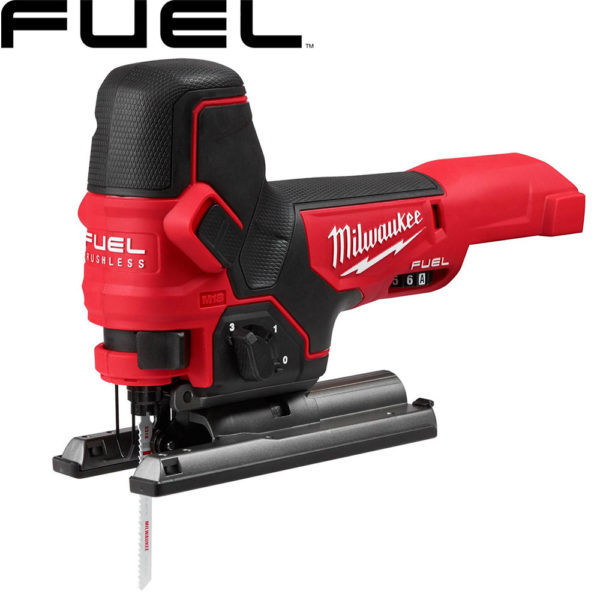

Milwaukee M18FBJS 18V Fuel Body Grip Jigsaw – Body
Product Overview
Manufacturer: Milwaukee
-
Milwaukee M18FBJS 18V Body Grip Jigsaw forms part of the 18v Milwaukee Fuel range, with the latest brushless technology. The impressive Milwaukee M18 cordless platform is leading the way when it comes to performance and reliability for the industrial user.
Read more
Features:
Milwaukee® designed and built brushless POWERSTATE™ motor for fast cutting, long tool life and up to 32 m in 19 mm OSB.
REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load.
REDLITHIUM-ION™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
Milwaukee® patented FIXTEC blade clamp for fast and easy blade change.
5 stage pendulum action for increased cutting performance.
Ambidextrous on / off switch allows user to turn the tool on in any position.
6-speed settings with auto controlled start mode allows the tool to start slow and ramp up to full speed when load is detected for smooth and accurate cut starts.
3500 SPM delivers smooth cuts, minimised chipping and vibration.
Dust blower keeps the cut line free of wood dust.
Integrated LED light for workspace illumination.
Detachable soft shoe avoids marks and scratches when cutting soft materials.
Specification:
Voltage: 18V
Stroke length: 25mm
Stroke rate: 3500 spm
Max. Cutting Capacity Steel: 10mm
Max. Cutting Capacity Wood: 100mm
Max. Cutting Capacity Aluminium: 19mm
Weight: 2.8kg
Tool comes supplied in a case.
‘Body Only’
Included as Standard: Blade, Dust Extraction Adapter, Dust Cover, Splinter Guard & Soft Shoe.
Exclusive 3 Years Warranty on all Milwaukee Power Tools including Batteries & Chargers when registered.
FAQs
How do you lock a Milwaukee jigsaw?
Milwaukee jigsaws typically have a trigger lock mechanism to prevent accidental starting. It’s usually a small button or switch positioned near the trigger. When the jigsaw is not in use, during blade changes, or when performing maintenance, always engage the trigger lock for safety.
What is the stroke length of the m18 jigsaw?
The stroke length for the M18 Jigsaw is 25mm. This is a pretty standard stroke length for jigsaws and allows for a good balance between cutting speed and control. The powerful motor and variable speed settings, make it a versatile tool for a variety of cutting applications in wood, metal, and plastic
How much does a Milwaukee fuel jigsaw weigh?
The weight of a Milwaukee Fuel Jigsaw can vary depending on the make and the model. However, the Milwaukee M18FBJS 18V Fuel Body Grip Jigsaw is around 2.8kg. The size and type of battery you use will add to the overall weight of the tool.
How do you install a jigsaw blade in Milwaukee?
Always remove the battery before changing the blade to prevent accidental start-up and remember to protect your eyes. Press down on the lever or button and release the old blade. Check the blade clamp or chuck area to ensure it’s clean. Push the new blade firmly upwards until it clicks into place.
