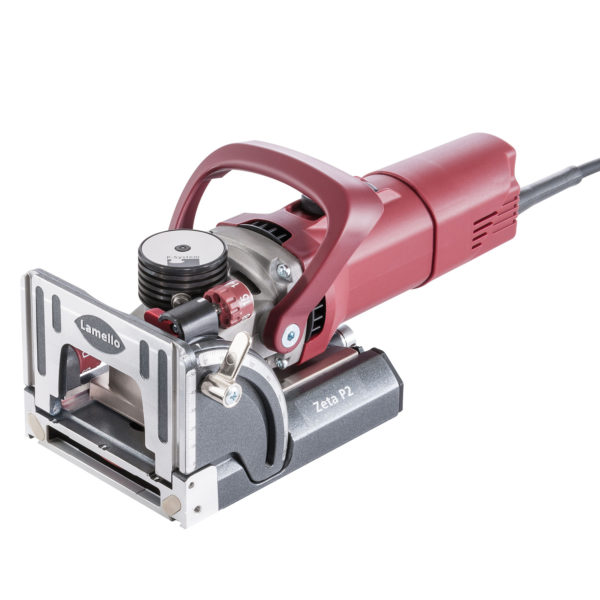

Lamello Zeta P2 P-System Jointer Set c/w TCT Blade

Manufacturer: Lamello

• The Zeta P2 is the second generation Zeta fitted with the new P-system depth adjuster. The Zeta offers more than the standard biscuit jointer, with an undercut function to allow for the fitting of special concealed Clamex P connectors that slide into the ‘T’ slot produced.




  Read more

  Features:

  The connector also clamps, so no additional clamping methods are required.

  Almost totally concealed, the only visible sign is a single 6mm hole, making it ideal for many applications such as furniture, shop fitting and exhibitions.

  Suitable for solid wood and man-made boards, overcoming many design issues.

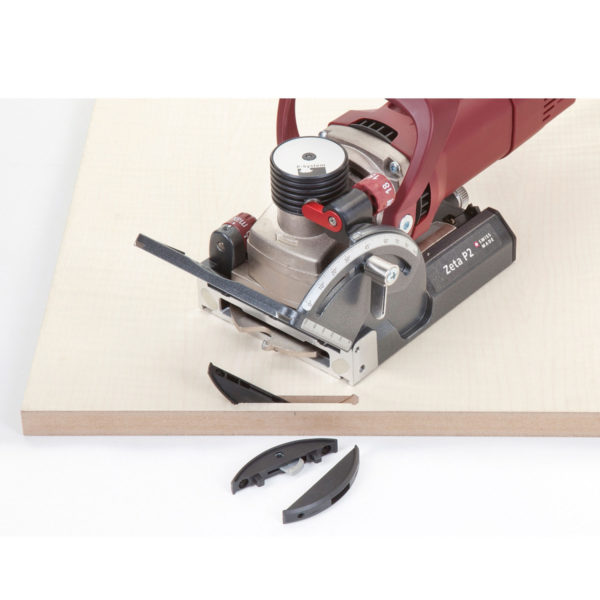

  The jointer has a special vertical mechanical drive (VMD) engaging when the jointer is at full plunge, moving the cutter up and down in one full turn and only then disengaging to produce the ‘T’ slot to accept the special Clamex biscuit.

  The undercut function can be switched off and a 7mm slot will be produced; a ‘Bisco’ biscuit can then be used.

  The new P-System depth adjuster has five settings for the ever growing range of Clamex connectors and when used with a standard biscuit jointing blade.

  Precise plunge with clear depth setting and jointer fences with flush sides to make positioning simple; the fence fits with ‘V’ grooves for accuracy and clear angle scale.

  Specification:

  Power: 1,050W

  Tilting Base: Yes

  Blade Diameter: 100mm

  Bore Size: 22mm

  Max. Cutting Depth: 20mm

  Weight: 3.7kg

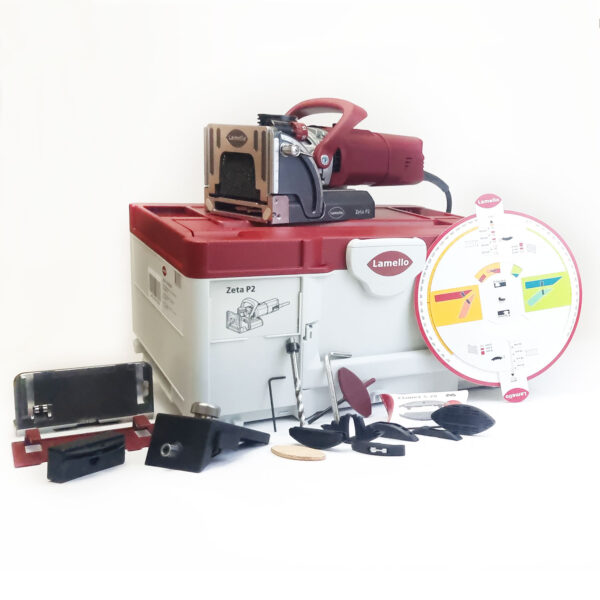

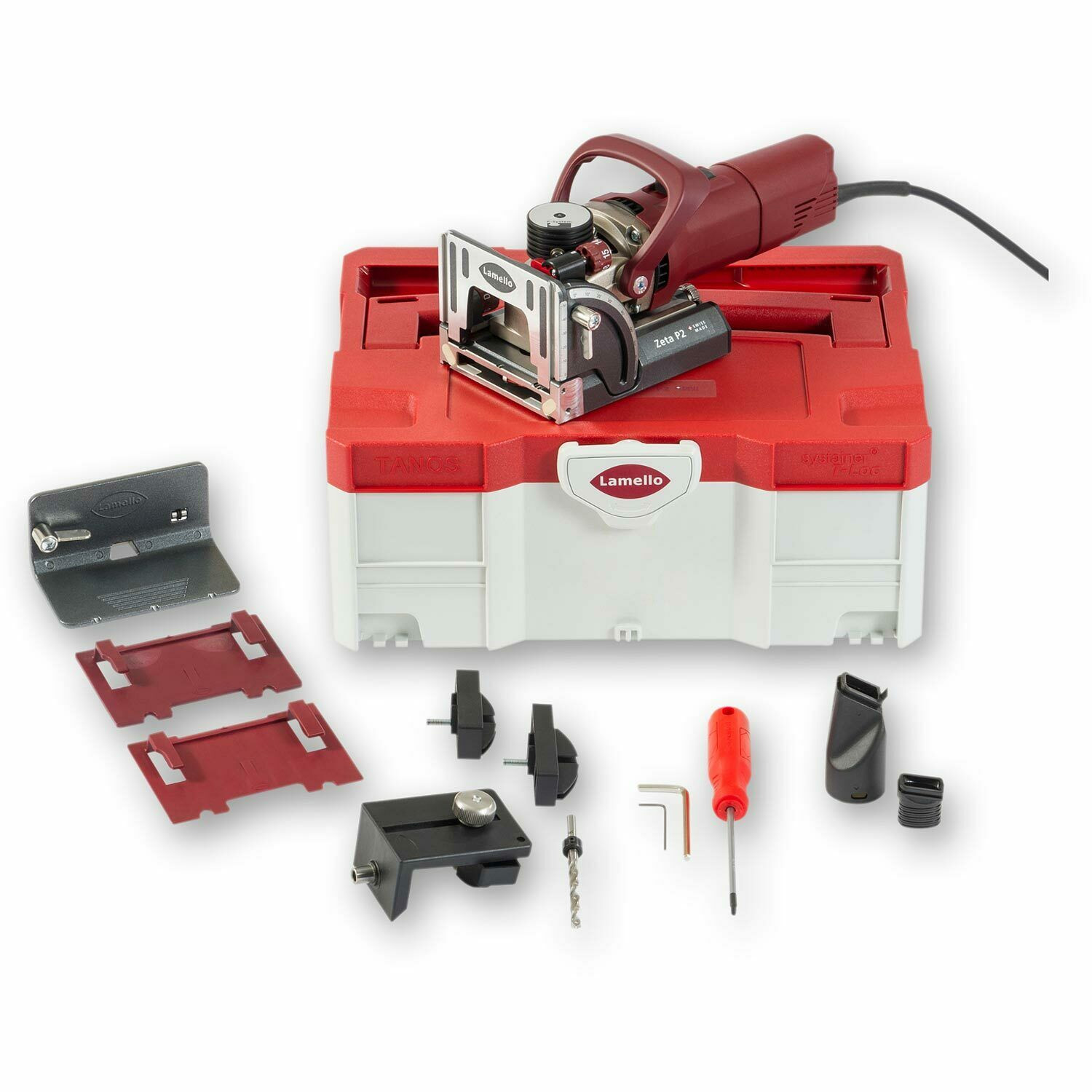

  Included as Standard: Blade, Assorted Fittings, Drill Guide, Drill Stop Collar, Drill Bit, Extraction Nozzle, Stop Square, 2 & 4mm Spacers for Mitre Jointing, Tools & Drilling Jig, Systainer.
