This arbors are designed to only be used in conjunction with a CNC disc groove cutters.
All arbors are compatible with groove cutters: Ø 30mm, NL 4 x M4 x Ø 48mm.
The P-System connectors enables a powerful installation in the workpiece within seconds.
Note: Ensure your aggregate has enough clearance to be able to perform the complete depth of cut when using with Lamello arbor and groove cutter. Should your aggregate not allow for this then consider using the Lamello P-System CNC shaft tool cutter.

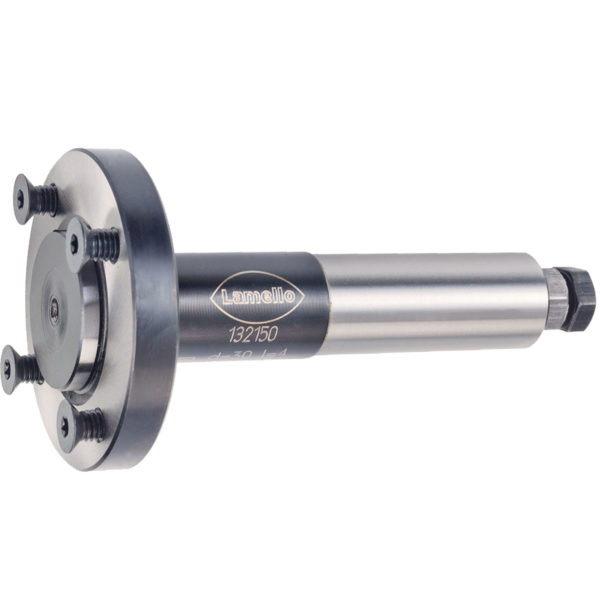

48763: 132150 Shaft Ø 20mm x 50mm, Overall Length = 102mm.

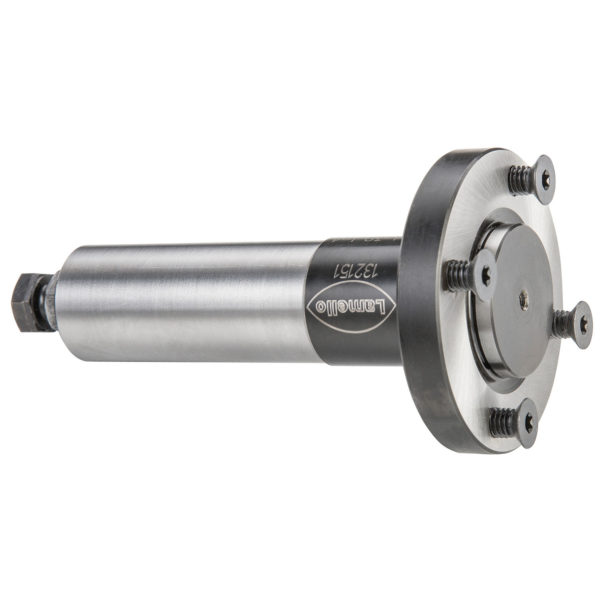

48331: 132151 Shaft Ø 25mm x 60mm, Overall Length = 102mm.

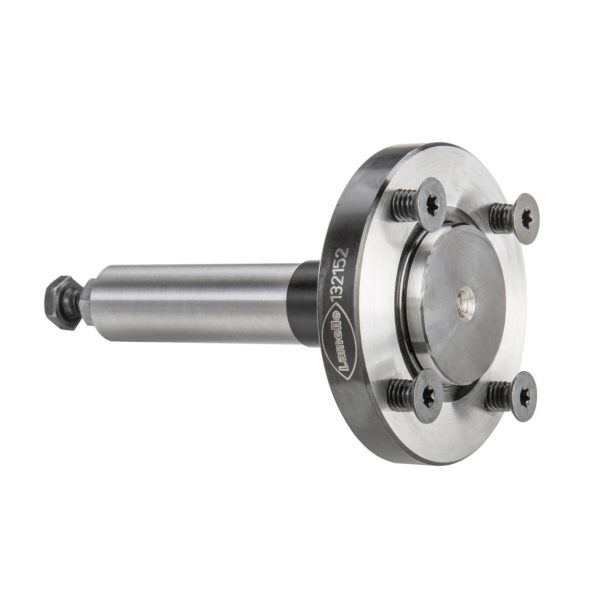

48332: 132152 Shaft Ø 16mm x 50mm, Overall Length = 85mm.
48342: 132153: Shaft Ø 16mm x 55mm, Overall Length = 68mm.

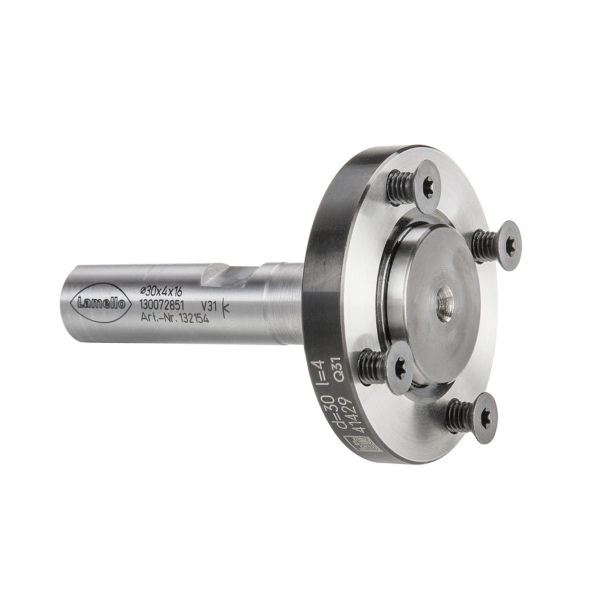

48343: 132154 Shaft Ø 16mm x 50 mm, Overall Length = 85mm, with clamping surface (2°- angle) – e.g. for aggregate for door locks.

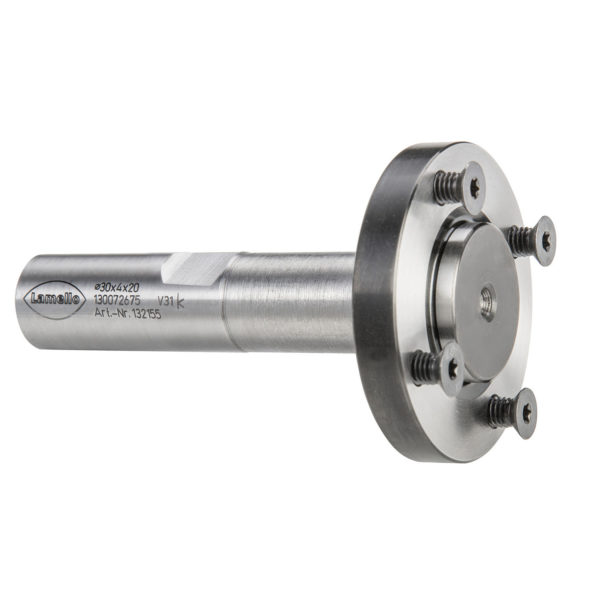

48344: 132155 Shaft Ø 20mm x 50 mm, Overall Length = 85mm, with clamping surface (2°- angle) – e.g. for aggregate for door locks.
48345: 132159 Spare M6 x 16mm T20 Torx countersunk bolts, suitable for all CNC Groove Cutter Arbors – pack of 4.
Genuine Lamello accessories from an authorised partner.
