The disc groove cutters are designed to only be used with a CNC router machine, which can create the special profile cut into the material.

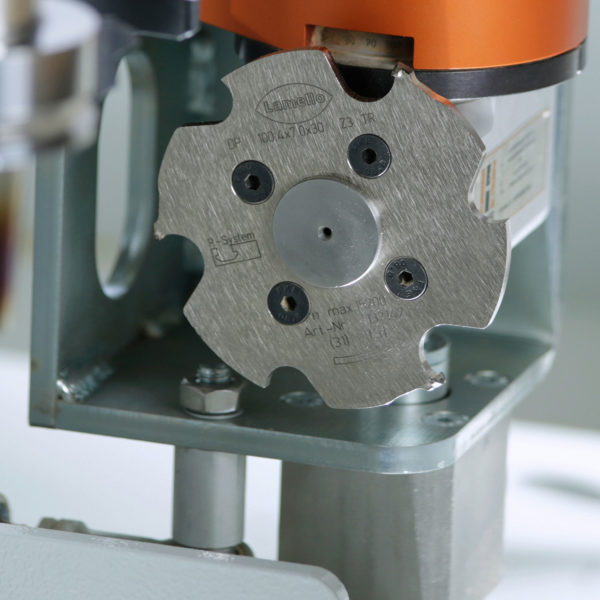

This can be used in conjunction with a series of different diameter arbors to fit directly into your tool holder, or can be fixed directly to your machine depending on the fitted aggregate.
The P-System connectors enables a powerful installation in the workpiece within seconds.
Note: Ensure your aggregate has enough clearance to be able to perform the complete depth of cut when using with Lamello arbor and disc cutter. Should your aggregate not allow for this, or bottoms out, then consider using the Lamello P-System CNC shaft tool cutter.

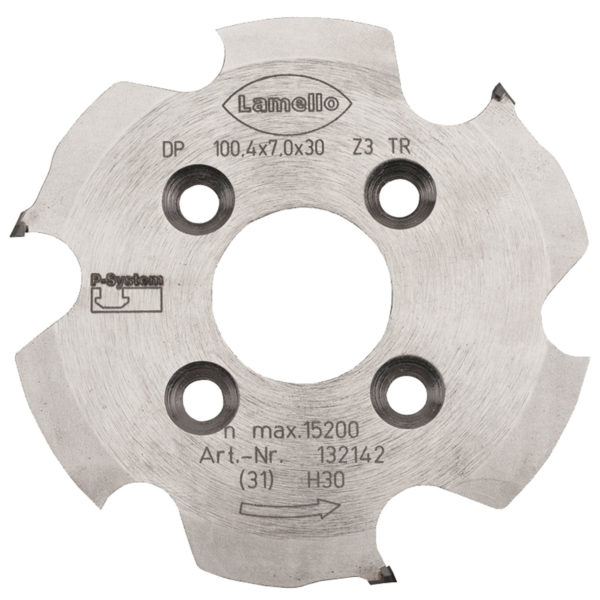

48762: 132142 Ø 100.4 x 7 x 30mm bore, Z3, NL 4 x Ø 6.6 x Ø 48mm – suitable for use with all Lamello P-System CNC cutter arbors.

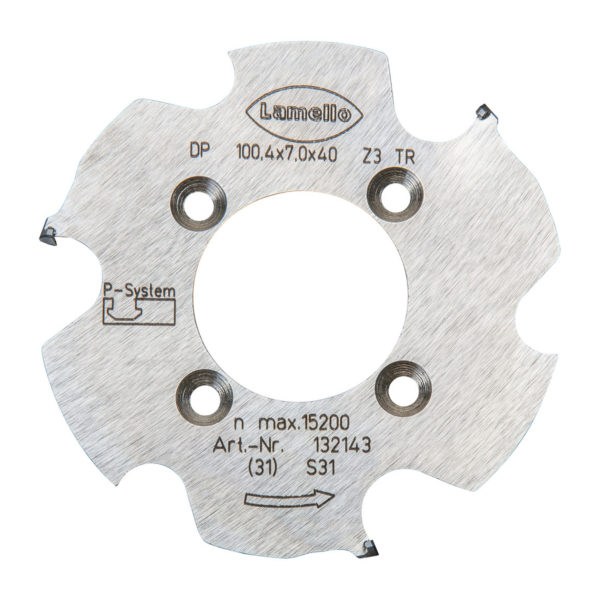

48327: 132143 Ø 100.4 x 7 x 40mm bore, Z3, NL 4 x Ø 5.5 x Ø 52mm – suitable for use with angle aggregates and FLEX5+C/5-MOTION PLUS.
48328: 132144 Ø 100.4 x 7 x 16mm bore, Z3, NL 4 x Ø 5.5 x Ø 28mm – suitable for use with corner notching aggregate.

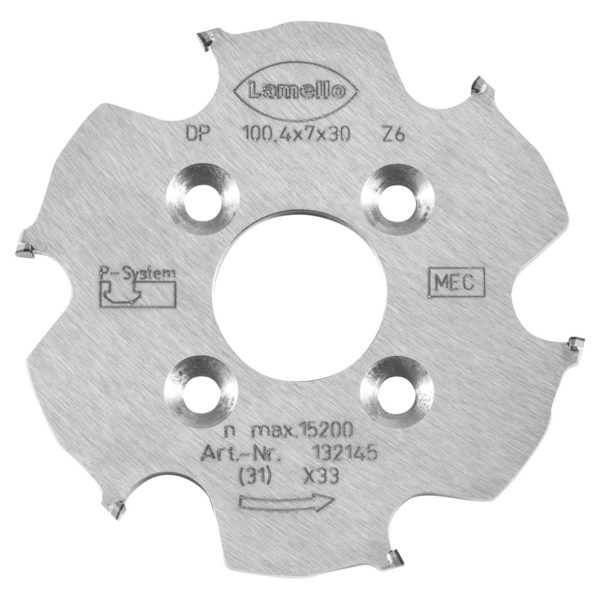

48329: 132145 Ø 100.4 x 7 x 30mm bore, Z6, NL 4 x Ø 6.6 x Ø 48mm – suitable for use with all Lamello P-System CNC cutter arbors.
48330: 132148 Ø 100.4 x 7 x 35mm bore, Z3, NL 4 x Ø 5.5 x Ø 50mm – suitable for use with Brema Eko 2.1, Masterwood Project TF 100, Format4 D-Jet, Morbidelli cx110.
Genuine Lamello accessories from an authorised partner.
