Lamello Invis Mx2 Connector Fittings

Manufacturer: Lamello

• Lamello connectors and studs for the Invis Mx2 system.




  Read more

  Invis Mx2 is the unique connection that satisfies the highest demands for aesthetics, stability and productivity.

  With no visible openings, Invis Mx2 can be quickly detached and reconnected at any time via its magnet drive.

  Powerful screwed joints with 250kg clamping force per connector via the M5 stainless steel screw.

  All connectors and studs are 12mm in diameter (D2) with a coarse outer thread that will ‘bite’ into the drilled 12mm hole.

  Invis Mx2 jointing connector elements are D12 x 35mm long.

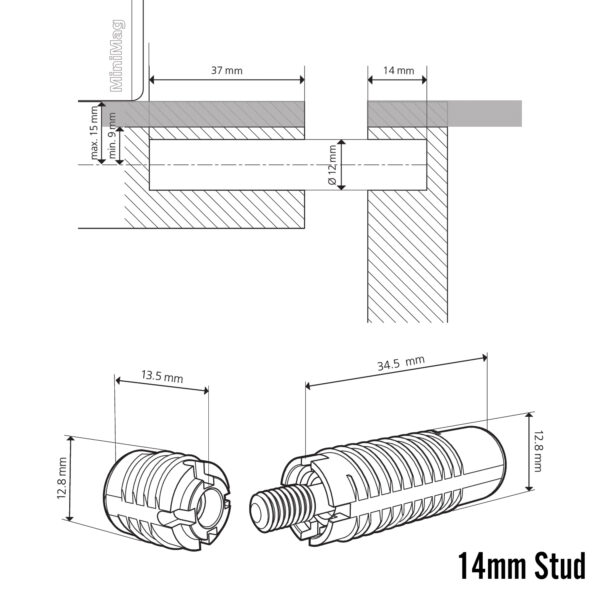

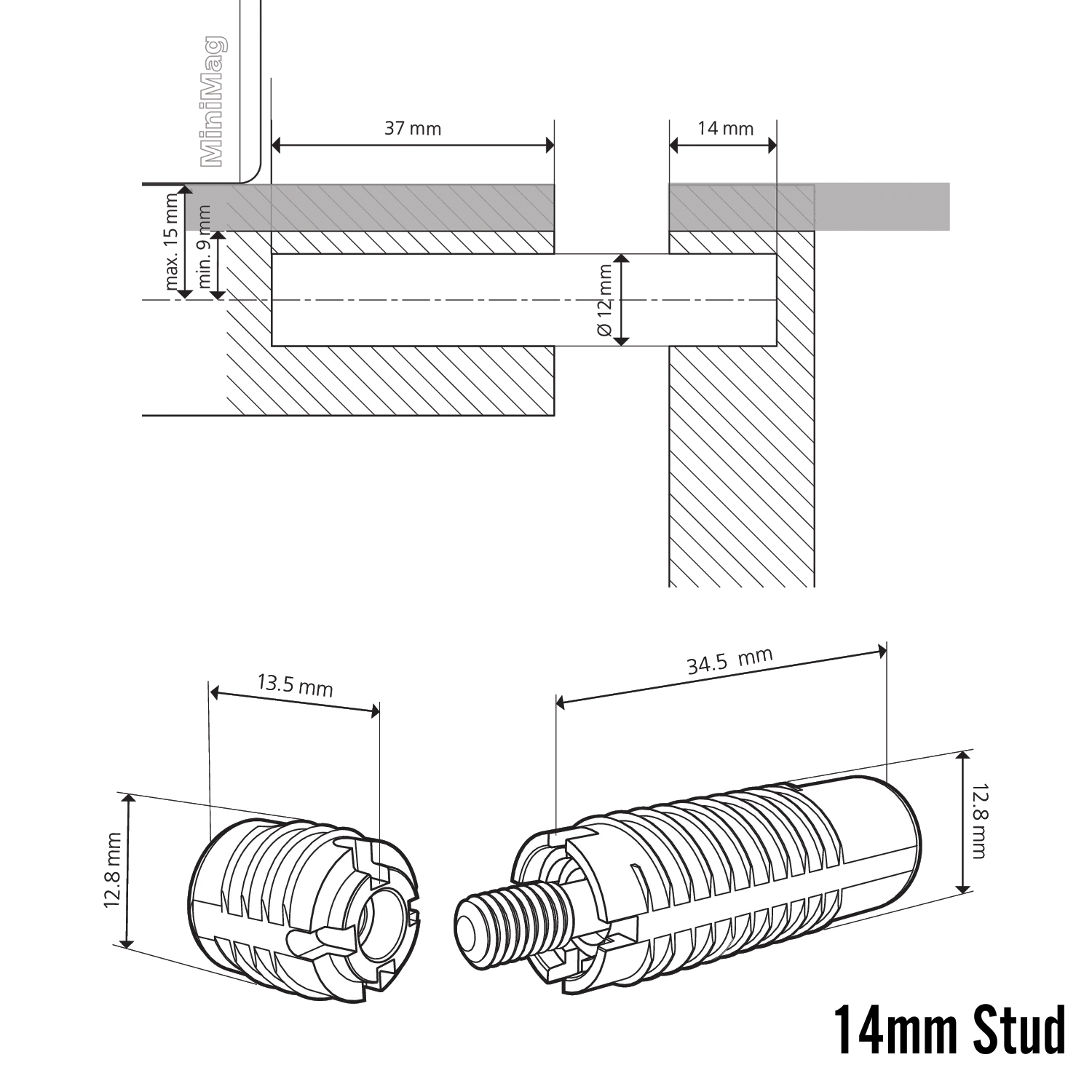

  Invis Mx2 studs are D12 and available in two different lengths – 14mm or 30mm. Using a longer stud increases the tensile strength of the joint by a minimum of 2X.

  Invis Mx2 centre wall studs are D12, and designed for connecting either side of a centre panel 10 – 30mm wide.

  Achieve perfectly clamped joints without the need for clamps; ideal for curved elements.

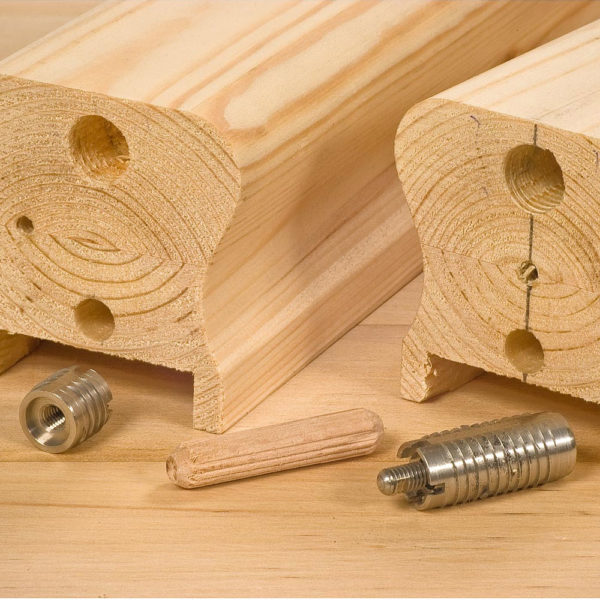

  Ideal for any jointing application including furniture making, stairs, wall separation panels etc.

  Connectors and studs are available as sets or pairs, or can be purchased separately to suits specific applications.

  Lamello CAD Data

  Full Lamello Catalogue

  Genuine Lamello accessory from an authorised partner:

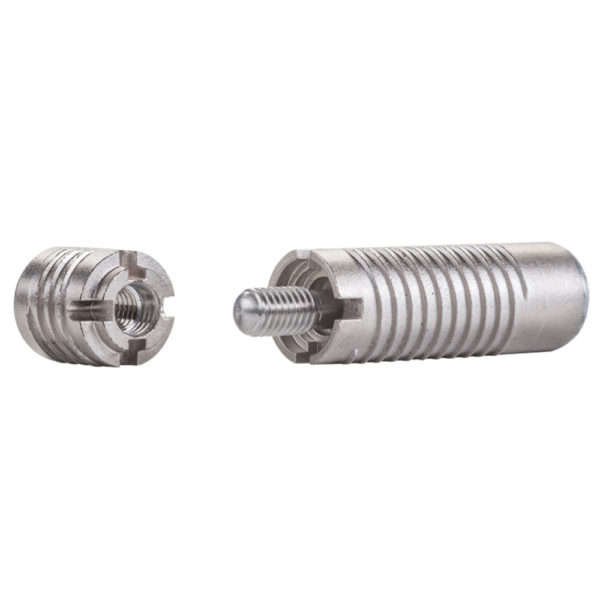

  48120: 6012300 – Invis Mx2 35mm Connectors c/w 14mm Studs Set x20 of each

  48460: 6012301 – Invis Mx2 35mm Connectors c/w 30mm Studs Set x20 of each

  48514: 6012317  – Invis Mx2 35mm Connectors x20

  48513: 6012312  – Invis Mx2 14mm Studs x20

  48512: 6012309  – Invis Mx2 30mm Studs x20

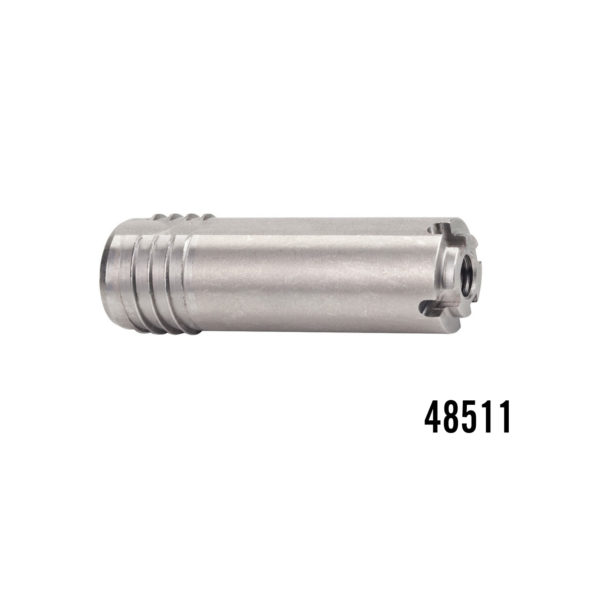

  48511: 6012208  – Invis Mx2 10 – 30mm Centre Wall Studs x10
