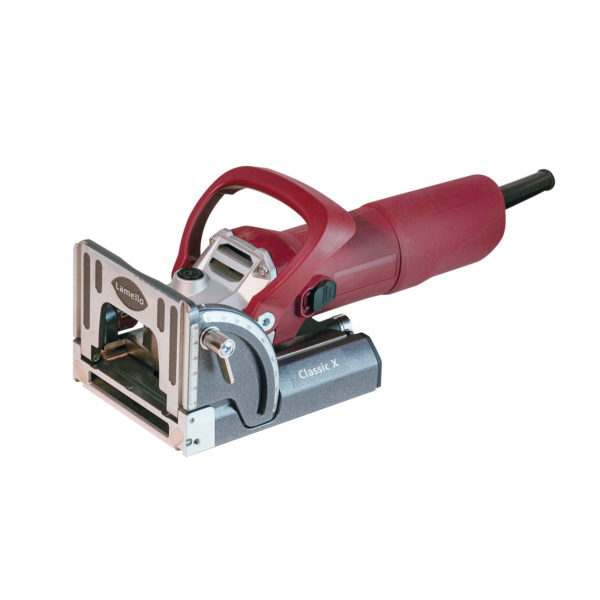

Lamello Classic X Biscuit Jointer c/w TCT Blade

Manufacturer: Lamello

• The Lamello Classic X is the original biscuit joiner from the inventor of the Lamello System for cutting the 4mm groove. The proven and well-designed Lamello Classic X is fast and versatile in its use and the basis for the wide range of connectors with fixed, self-clamping and detachable solutions.




  Read more

  Features:

  The base plate, swivelling front stop and stop square are now flush on both sides for efficient positioning on the work piece.

  Precision-machined guide and application surfaces for perfect fit of the work pieces.

  Slim but powerful 850 W motor.

  Multi-functional stop square for vertical stability as well as perfect mitres due to the application on the outer surface for 22.5 and 45° angles.

  Lateral tolerance allows for faster working without positioning aids and stops.

  Avoid errors when adjusting the cutting depth since both work pieces have the same groove depth.

  Proven cutting principle with a disc cutter ensures that the grooves are always parallel and precise, even in the case of knots or rapid working.

  Specification:

  Power: 850W

  Speed: 10,000 u/min

  Max. Cutting Depth: 20mm

  Teeth: Z6 (3+3) reversing teeth

  Weight: 2.9kg

  Included as Standard: Carbide Tipped Cutter, 36mm Suction Stub, Stop Square, 4mm Spacer, Tool Set.
