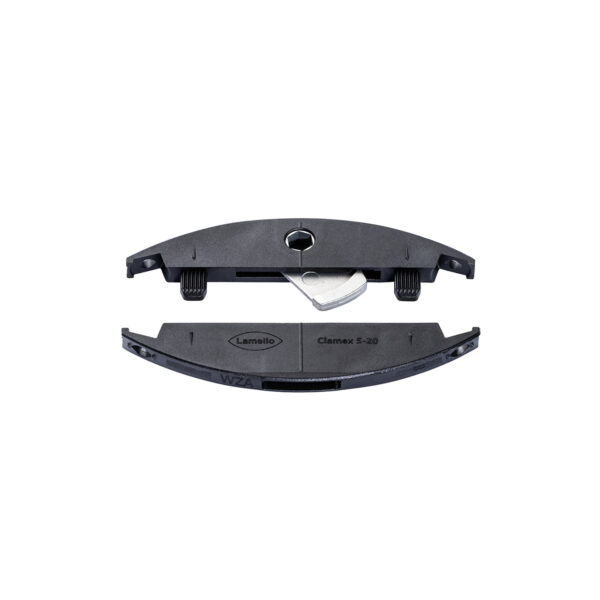

Lamello Clamex S-20 Connectors

Manufacturer: Lamello

• Utilise the Lamello Clamex System with any conventional biscuit jointer! The Lamello Clamex S-20 Connector is part of the Lamello system, used for material thicknesses from 16 mm and is fastened in the groove with screws. The packs come with connectors, screws and insertion tool/drilling jig. The connectors require no adhesive, yet enables aesthetic connections at all angles – ideal for fixed or detachable connections.




  Read more

  Features:

  Detach with use: User can open the connection time and time again with rotating lever.

  4mm installation means any biscuit jointer can be used.

  Small, hardly visible 6mm diameter opening is good for aesthetics.

  Specification:

  Size (mm): 59 × 12 × 3.9 mm

  Cutter: Ø 100 × 4 × 22 mm

  Material connector: Fiberglass reinforced plastic

  Material lever: Zinc die cast

  Installation tolerance: Long. ± 1 mm/radial ± 0 mm

  Tensile strength (N) MDF: 620 N

  Tensile strength (N) Particle board: 490 N

  Tensile strength (N) Beech: 620 N

  Genuine Lamello accessory from an authorised partner:

  145245 – Lamello Clamex S-20 Connectors x300

  145246 – Lamello Clamex S-20 Connectors x1000
