Lamello Clamex P-10 Detachable Connectors
Klarna 0% finance available on orders over £99 inc. vat
Product Overview
Manufacturer: Lamello
-

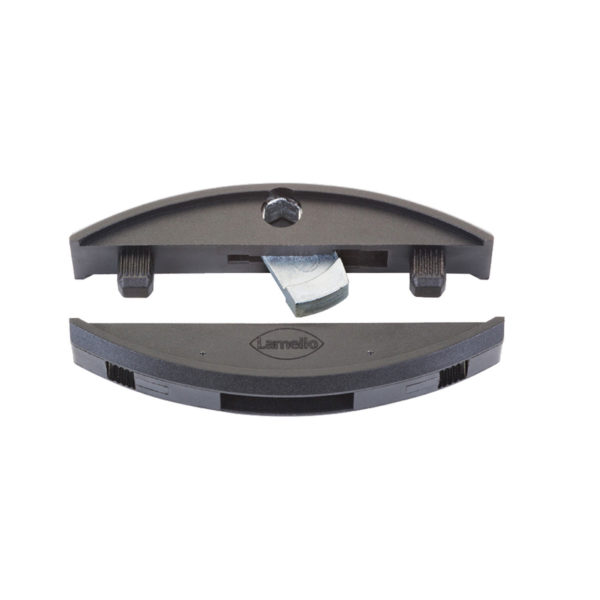

Clamex P-10 is a knock down fitting based on the P-System anchorage and is connected via a lever. Compared to Clamex P-14, Clamex P-10 possesses a shallower installation depth of just 10mm and is therefore used for smaller material thicknesses. The design of the fitting was further perfectioned by introducing two stabilisers which offer strong dimensional stability.
Read more
Features:

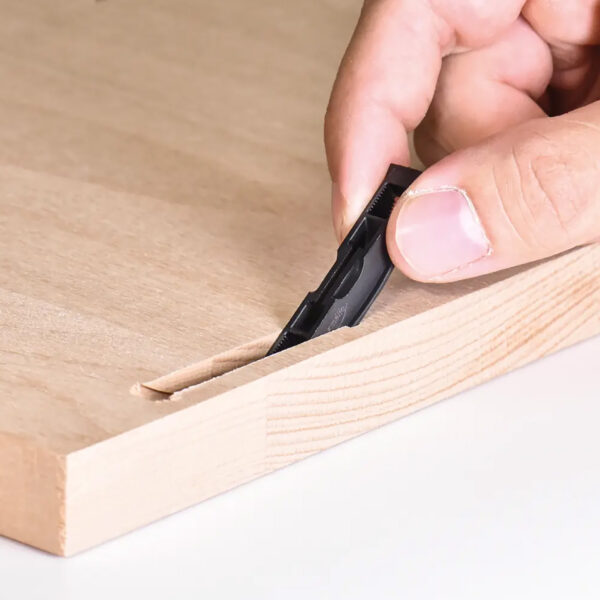

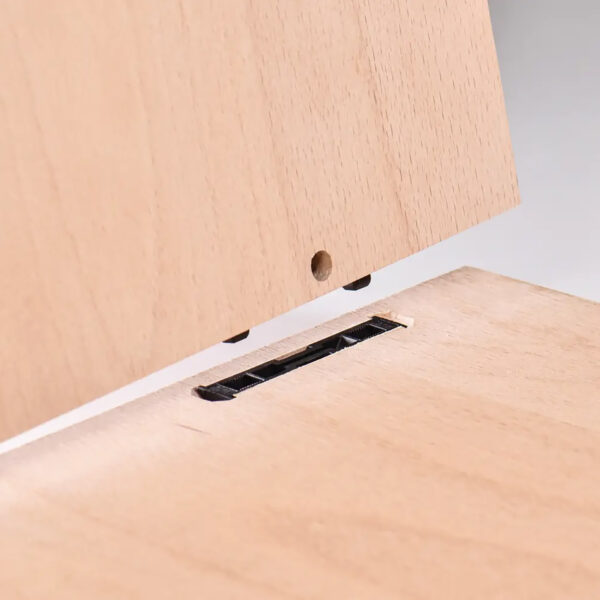

The form-locking P-System anchorage enables strong connections with the work piece without the need for tools in just seconds.
Clamex P does not require glue or screws and offers countless benefits in the manufacturing process while also distinguishing itself from standard furniture fittings.

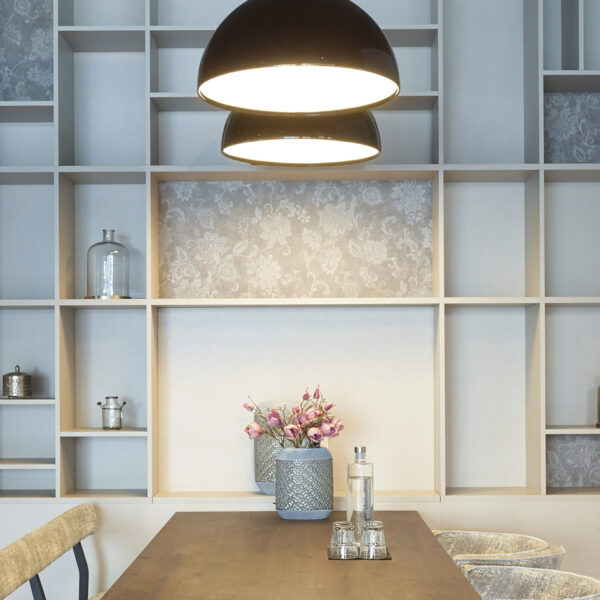

It is therefore ideal for detachable or fixed mitre joints in furniture.

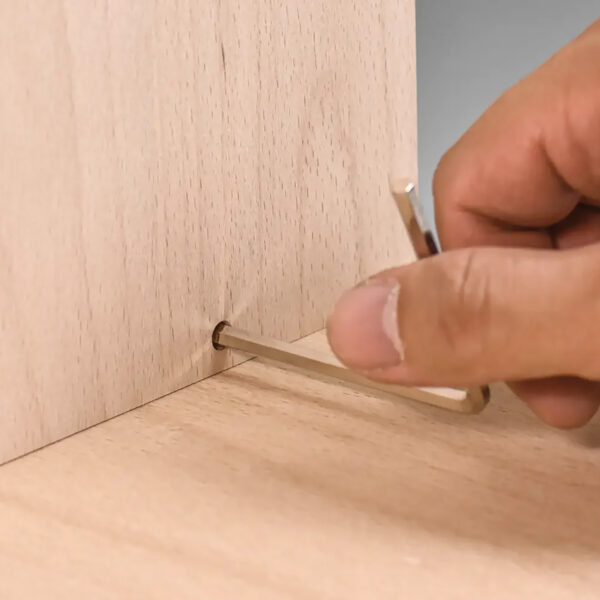

The furniture fitting is characterised by its small 6mm tool openings for hex keys, which set Clamex P apart from comparable fittings.
Specification:
Tensile strength MDF: ~ 600 N ≈ 60 kg
Tensile strength particle board: ~ 600 N ≈ 60 kg
Tensile strength beech: ~ 900 N ≈ 90 kg

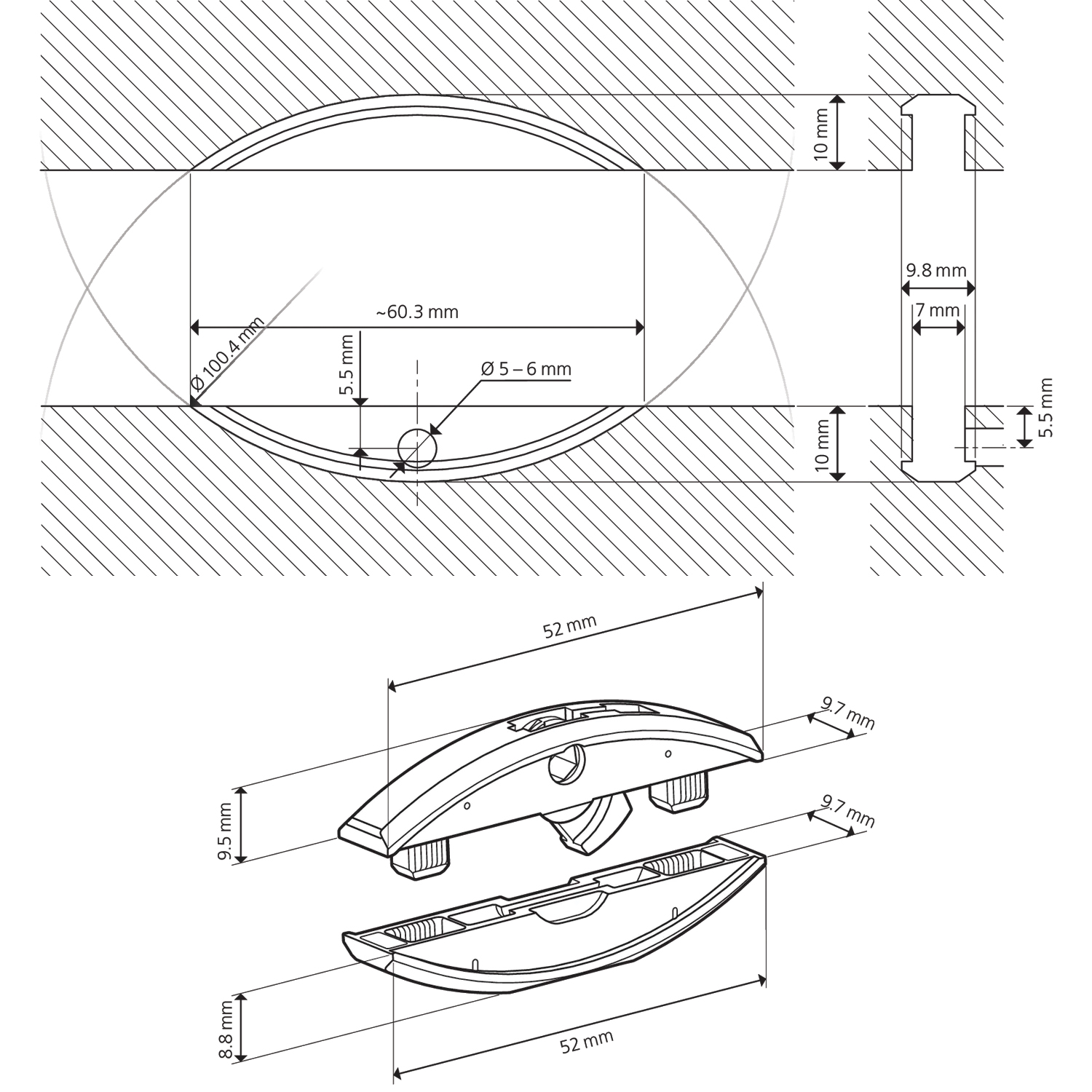

Size (mm): 52 x 19 x 9.7 mm

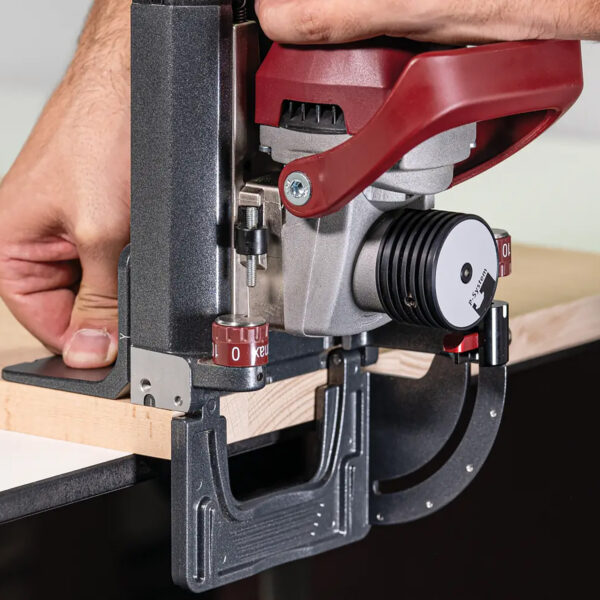

Cutter: ø 100.4 x 7 x 22
Material connector: Fiberglass reinforced plastic
Material lever: Zinc die cast
Installation tolerance: Longitudinal ± 0.5 mm
Genuine Lamello accessory from an authorised partner:
145372 – Clamex P-10 Detachable Connectors x80
145373 – Clamex P-10 Detachable Connectors x300
145374 – Clamex P-10 Detachable Connectors x1000
Lamello CAD Data
Full Lamello Catalogue
