Lamello 131342 P-System CNC Shaft Tool Cutter

Manufacturer: Lamello

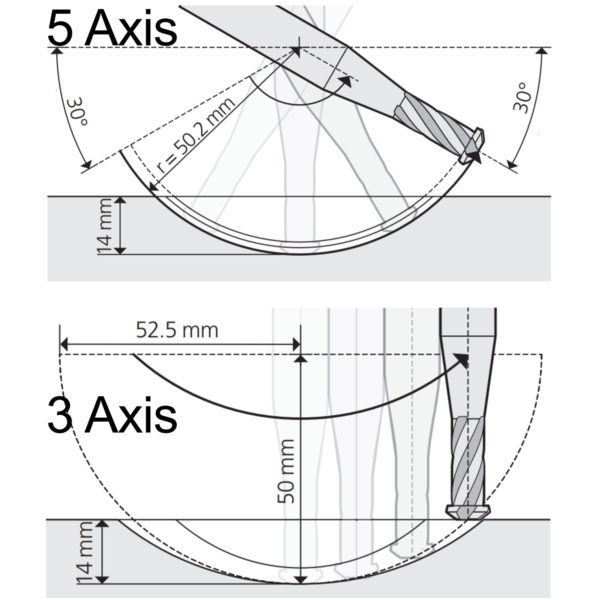

• The Lamello P-System CNC shaft tool is a solid carbide cutter, specifically designed to make special profile cuts into the edge and surface of material, with (3, 4 and 5 axis) or on mitre cuts (5 axis), allowing for the installation of a selection of P-System connectors on a range of CNC woodworking machinery.




  Read more

  The shaft tool is designed to be used with a CNC router machine only, which creates the special profile cut into the material.

  The P-System solid carbide cutting tool is used for angles of up to 30 degrees, without deflecting when it hits the workpiece surface.

  The P-System connectors enable a powerful installation in the workpiece within seconds.

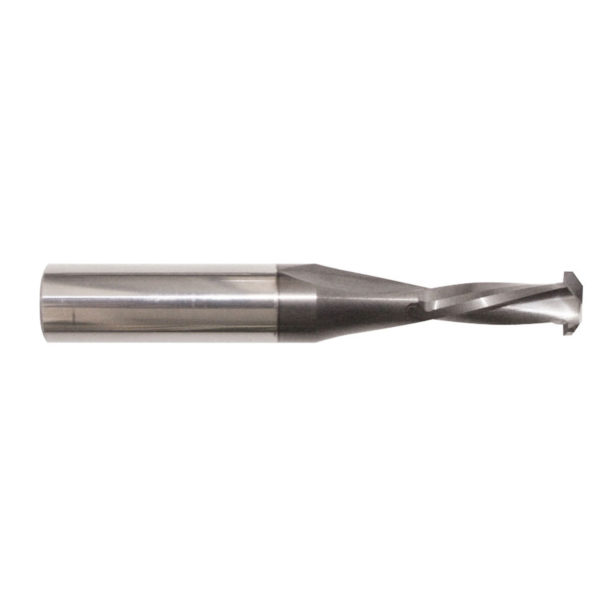

  P-System CNC solid carbide shaft tool cutter – shaft ø 12 x 40, L=80 mm

  Note: Lamello recommend that the shaft tool cutter should only be used as a secondary option, where the CNC diamond groove cutter and arbor (if required) cannot be used due to the aggregate bottoming out. Using the CNC diamond groove cutter, where primarily possible, will increase speed, service life and efficiency.

  Genuine Lamello accessory from an authorised partner – 131342
