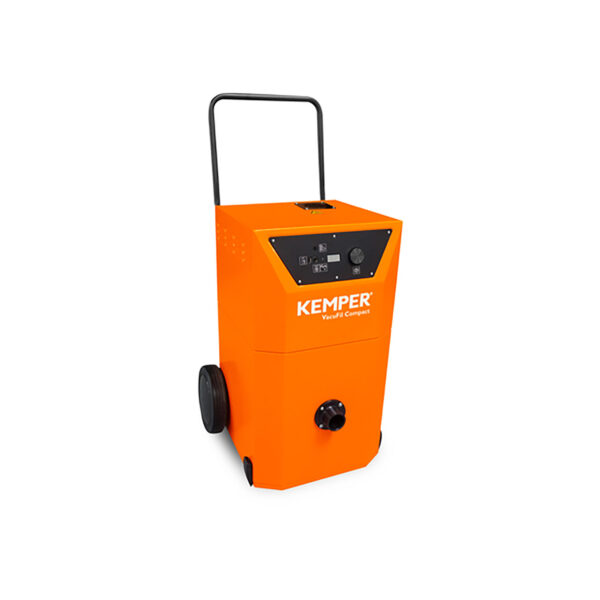

Kemper Vacufil Compact Extraction Unit

Manufacturer: Kemper

• The Kemper VacuFil compact fume extraction is a new high vacuum extraction unit which is designed for medium quantities of welding fume and dust.




  Read more

  It has one touch operation therefore easy to use (Even while wearing PPE).

  The Kemper Vacufil Compact is available in both 230V and 400v voltages and has a choice of disposable or cleanable filter versions.

  It has a compact design so you can easily changing workplaces. It also has additional equipment such as a USB connection and coffee holder to assist a user personally.

  It contains a large surface filter, side channel blower, stepless air volume selection, PE-M Cartridge filter and the monitoring of the extraction rate.

  Benefits:

  High extraction capacity by means of side blower

  Stepless preselection of extraction power depending on your extraction torch.

  One Touch operation (Even while wearing PPE)

  Outstanding performance

  Portable therefore suitable for constant changing workspaces.

  The Kemper Vacufil can be used for the following applications:

  Regular Use

  High Levels of smoke, particles, and dust

  Torch Extraction

  Non-stop operation

  Portable

  Specification:

  Max. extraction capacity: 160 m³/h (230V), 170 m³/h (400V)Extraction performance at 18000 Pa: 50 m³/h (230V0, 100 m³/h (400V)Maximum vacuum: 24000 Pa (230v, 31000 Pa (400v)Dimensions (w x t x h): 589 x 590.5 x 833 mm (230V), 589x625x1191mm (400v)Weight: 60 kg (230v), 65kg (400v)Motor power: 1.5 kW (230v), 2.2kW (400v)Power supply : 1 x 230 V / 50 Hz (230v), 3 x 400 V / 50 Hz (400v)Rated current: 13 A (230v), 5.8 A (400v)

  Air Outlet: 63mm

  Hose Connection:63mm

  Fan Type: Side channel blower.

  Filter

  Filter stages: 1Filter method: Storage FilterFilter surface: 6.7 m²Type of filter: Filter cartridgeFilter material: PE-M membraneFilter efficiency: > 99.9 %Dust classification: M
