HMT VersaDrive™ V60T Mag Drill & Stakit Pro Kit

Manufacturer: Hmt

• The HMT VersaDrive V60T is a portable magnetic drilling machine which has been designed to meet the requirements of the fabrication industry for a high-performance, low maintenance, industrial quality machine which can deliver constant performance even in the most challenging of drilling environments and fabrication conditions. The Versadrive V60T combines light weight and portability with a extremely high powered motor for all day broaching applications from 12mm up to 60mm diameter. Combining this with the V60T’s forward and reverse direction and variable speed on the motor, applications such as reaming, countersinking, and tapping up to M20 can easily carried out. The advanced electromagnet provides enhanced magnet hold for exceptional safety and stability. The Versadrive V60T machines are also supplied in the Versadrive Stakit 350 base tool case with foam inserts to help protect the machine. It incorporates seamlessly into the Versadrive Stakit system for easy transportation for use on site or in the workshop.




  Read more

  Features:

  The V60T offers a 2 speed mechanical gear selector positioned on the side of the gearbox, this allows you to choose the correct gear ratio to provide the best possible torque.

  Once the mechanical speed has been selected then the electronic speed control can then be used to fine adjust the speed to ensure the optimum performance for the application.

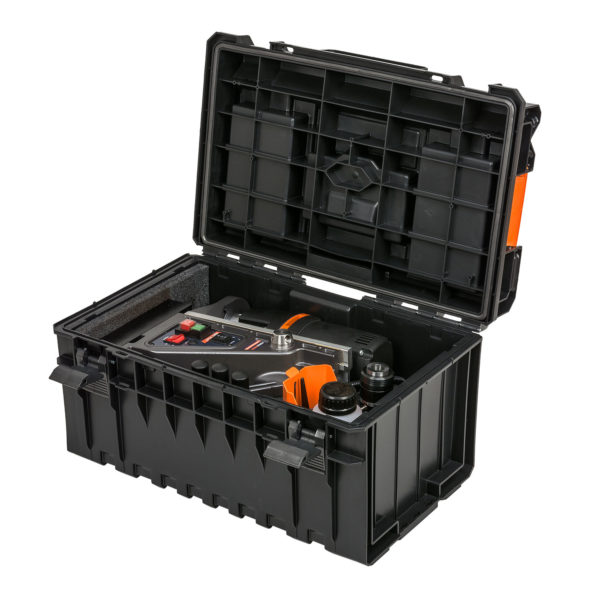

  The Versadrive Stakit Base 350 tool case is the perfect option for larger equipment storage not only is it big enough to fit the Versadrive V60T magnetic drill it can also take multiple cordless drills, impact tools and many more, all stored in just one case with dimensions: L x W x H – 585mm x 385mm x 320mm.

  Also the Stakit base 350 tool case as 2 x accessory organisers in the lid, these are ideal for tidally storing smaller tooling such as hex keys, grub screws, keep them safely out of the way, but always to hand.

  The VersaDrive Stakit 350 tool case also features a top handle for short distance carrying, but can be easily fixed to the Versadrive site cart or workshop trolley for travelling extended distances either in the workshop or out on sites.

  Specification:

  Annular Hole Cutters: 12 – 60mmø

  Twist Drill Range: 3 – 20mm

  Tapping capacity: M20

  Countersinking Capacity: 40mm

  Length: 315mm

  Width: 220mm

  Height Adjustable: 385 – 605mm

  Stroke: 220mm

  Magnet dimensions (L X W) 200 x 100mm

  Magnetic Force: 1750 kgs

  Motor Power: 1150 W

  No load speed in gear 1 100 -  250 rpm



                              gear 2 180 – 450rpm

  Spindle: MT2

  Arbor 19,05 mm (¾”) Weldon

  Weight: 18kg

  Included as Standard: Handles, heavy duty metal sliding guard system, MT2 Quick Change broaching arbor, VersaDrive arbor, Stakit 350 waterproof shock-resistant site case, gravity fed coolant system.

  2 Year when registered.
