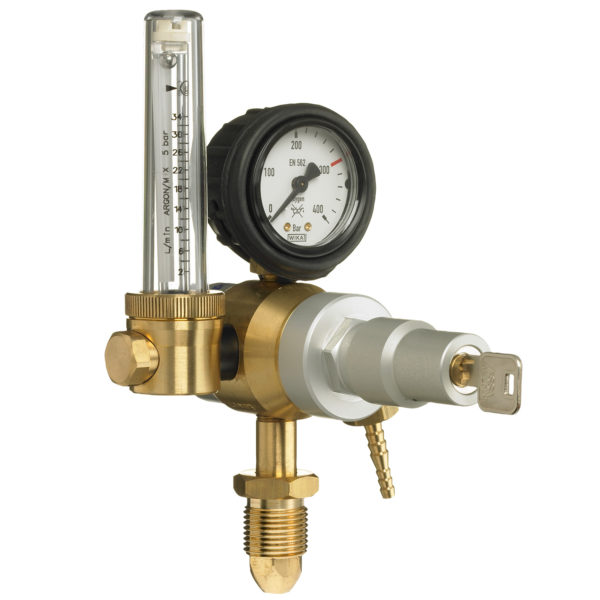

GasiQ Optimator Lockable Regulator Argon Bottom Entry
Product Overview
Manufacturer: Gasiq
-
GasiQ Optimator Lockable Regulator Argon Bottom Entry is a high-performance multi-stage regulator with built-in economiser and flow meter.
Read more
Features:
Mostly used for advanced gas shielded welding applications, where it will reduce the total welding cost by decreasing the gas consumption by up to 50%. In addition, reduced porosity sensitivity improves weld quality.
Two stage function will give a stable gas flow even when the cylinder pressure drops.
All welders know the cost of welding wire per kilo, but do you know what shielding gas costs per metre of weld? It costs at least as much as the wire. Optimator is a regulator that was designed from the start with a specific purpose – to save gas.
High quality of the welded joint produces something you get for free. Every time you start a traditional regulator, a large amount of gas is lost to no avail.
Has an optimum start flow that is just a quarter of a traditional regulator, right from the first second.
Unique two-stage reduction valve has been developed for qualified shielding gas welding.
The second stage is extremely pressure sensitive and reduces the gas surge that normally occurs at start-up, saving large amounts of shielding gas.
The even start flow also provides a higher quality weld since you avoid turbulence.
Risk for pores in the welded joint is minimised.
Lockable version is available for exact gas flow. A real advantage if you wish to ensure the highest welding quality e.g. with ISO 9000 certification.
Genuine GasiQ Regulator from an authorised partner: 3737-1090.
Specification:
Gas: Argon
Connection inlet : G5/8"ext
Connection outlet: G3/8"
Maximum Input pressure: 200 bar
Scale flow meter: 0-34 L/min
Compliance with ISO 2503: Yes
Weight: 1.85kg
