Features:
Twin-column guide with two bearings for unique precision.

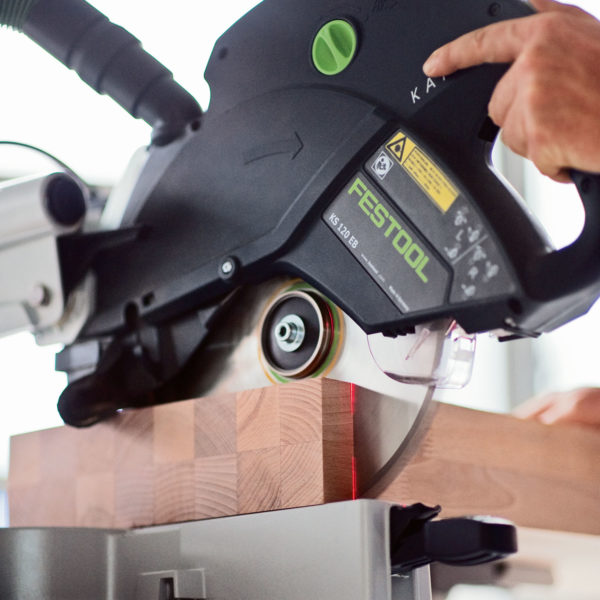

Dual-line laser for an accurate indication of the cutting line.
Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine.
Special cutting position for cutting depths up to 120 mm.
FastFix saw blade changing for adaptation to the working material.
Twin-column guide for accurate cuts.
Precision angle transfer via bevel and dual-line laser.
Compact, lightweight design for convenient transportation.
Safety brake.
For the best possible dust extraction, Festool recommend using a 36mm antistatic suction hose with this tool.
Main Applications:
Trimming skirting boards and cornices up to 120 mm in height – no calculations.
Cutting boards and panels up to 305 x 88 mm.
Trimming crown mouldings up to 168 mm in their original wall position.
Trimming square timber and beams up to 88 mm thick.
575316 / 575315 Specification:
Input: 1600W Motor
Saw blade diameter: 260mm
Saw Blade Bore Diameter: 30mm
No Load Speed: 1400-3400rpm
Special cutting depth 90°/90°: 60 x 120mm
Special cutting depth 45°/90°: 20 x 120mm
Crown moulding diagonal cut at 90°/90°: 168mm
Inclination angle: 47/47°
Mitre angle: 50/60°
Dust Extraction Connection Ø: 27/36mm
Dimensions (W x D x H): 713 x 500 x 470mm
Weight: 21.5kg

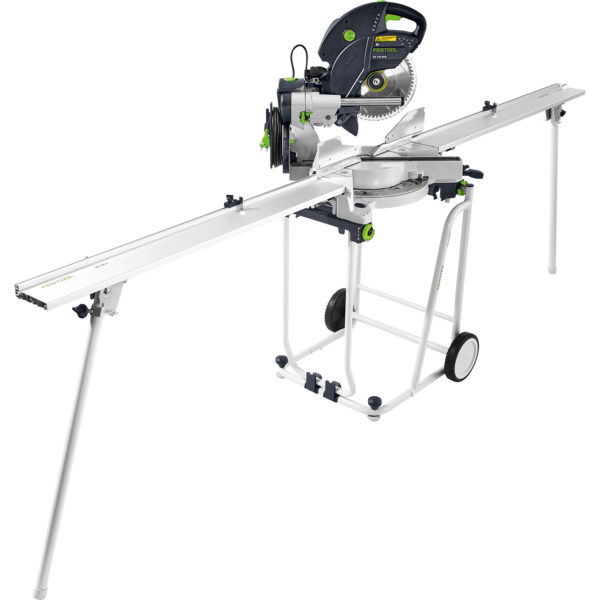

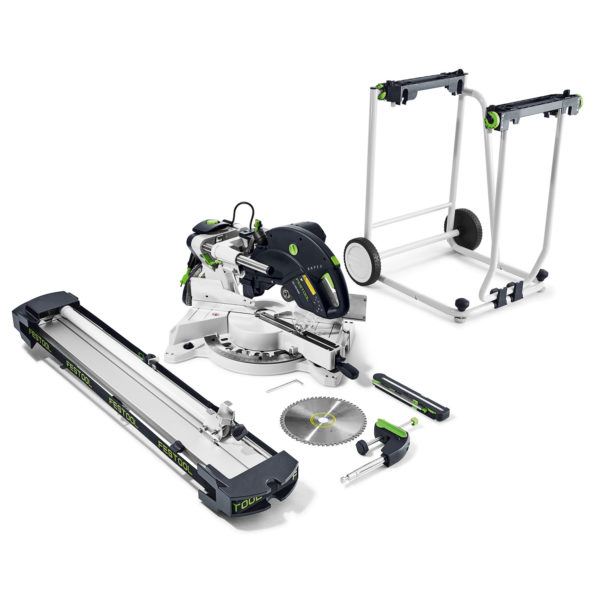

Included as Standard: 60T Universal Saw Blade, Bevel, Workpiece Clamp, Adjustable Stop, Telescopic Slide-out Scale, Underframe & Folding Stand.
3 Years Warranty on all Festool Power Tools when registered.
