Festool CSCSYS50 36V Table Saw Workbench Set – Body

Manufacturer: Festool

• The CSC SYS 50 36V Table Saw Set is versatile in use and convenient in size. It is so compact that it’s able to fit into a Systainer and can make parallel cuts of up to 280 mm, cross-cut widths of up to 450 mm, and angled cuts of -2° to 47°. The unique digital operation produces results with maximum precision, down to accuracies within a tenth of a millimetre.




  Read more

  577371 Features:

  Versatility: Parallel cuts up to 280 mm; cross-cut width of up to 450 mm. Angled cuts from -2° to 47°.

  Practicality: At a cutting height of up to 35 mm, through to angled cuts right down to -10°; ideal for undercutting infill panels.

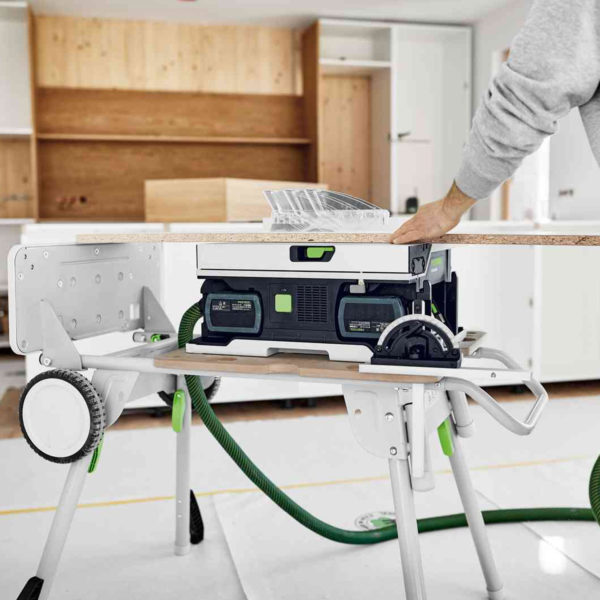

  Compact and mobile: Can be transported with one hand in the practical Systainer format. Even lighter with the UG-CSC-SYS underframe.

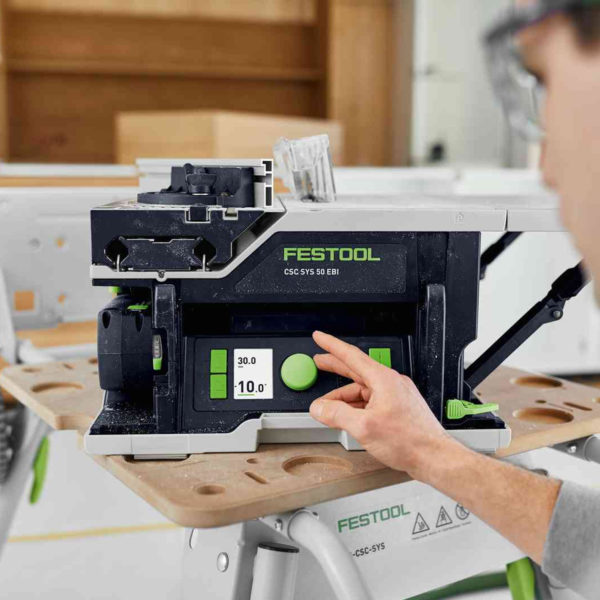

  Extreme precision: The height and angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimetre.

  Reproduce cuts easily: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgment. Reproducible cuts are ensured.

  Convenient: Four saw blade positions can be saved and selected via the digital display.

  Highly precise parallel side fence: Robust parallel side fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results.

  Highly precise angle stop: The angle stop is optimally aligned and centrally clamped via a groove on the slide. For mitre angles between -70° and +70° .

  Judder-free: Ball bearing-mounted slide for parallel and angled cuts with maximum precision.

  Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing progress and perfect cutting results.

  Long-lasting: The brushless EC-TEC motor is long-lasting, robust, and maintenance-free.

  Specification:

  Battery voltage: 2 x 18 V

  Idle engine speed: 4 500 – 6 800 min ⁻

  Saw blade location hole: 20.00 mm

  Inclination angle: -10 – +47 °

  Cutting height 0°: 0 – 48 mm

  Cutting height 45°: 0 – 34 mm

  Cutting height -10°: 21 – 32 mm

  Mitre angle: 0 – 70 °

  Parallel cut width: 280.00 mm

  Tabletop height: 280.00 mm

  Dimensions (L x W x H): 512 x 396 x 296 mm

  Dust extraction connection diameter: 27/36 mm

  Battery capacity: 5.00 Ah

  Product weight: 15.00 kg

  Body Only– not supplied with batteries or charger

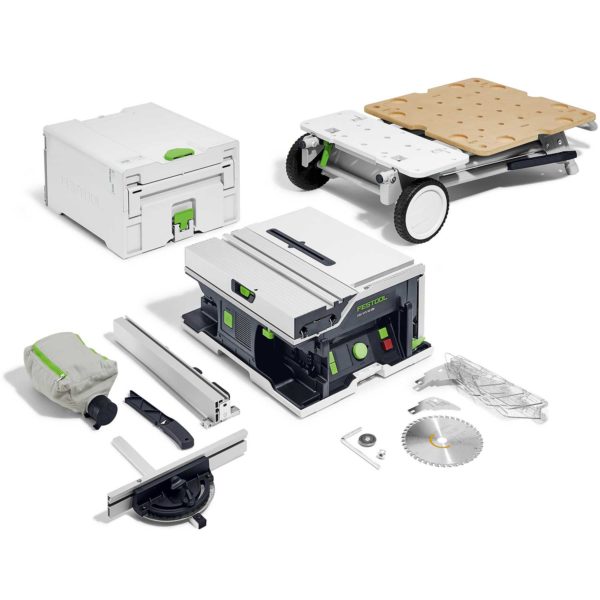

  Included as Standard: 1 x Cordless table saw, Chip collection sack, Parallel side fence, Splitting wedge with protective hood & 1 x Workpiece holder.

  3 Years Warranty on all Festool Power Tools Including Batteries & Chargers when registered.
