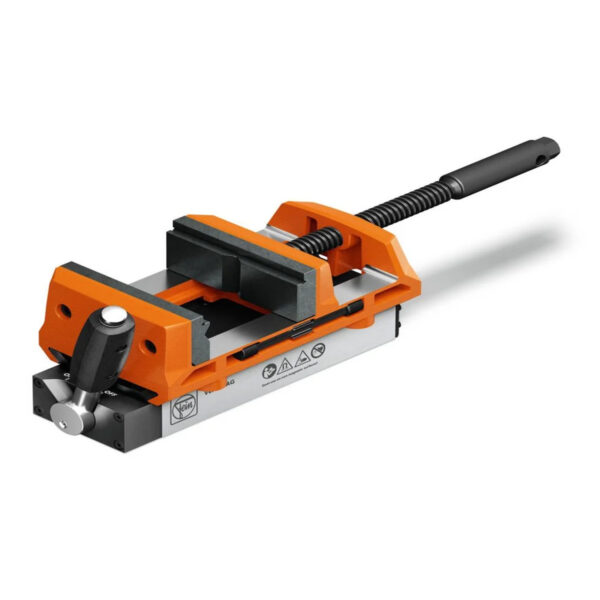

The neodymium magnet with its two-rotor system generates a maximum holding force of 7800N, allowing end users to clamp securely onto all magnetic surfaces from 4mm thick up wards. As a result, the Versamag Vise set enables users to complete numerous tasks safely and efficiently across a wide range of working environments. Traditionally materials could not be secured properly, and operators have been forced to use one hand to hold the work piece, leaving only one hand free for the operation of the tool. The Versamag Magnetic Vise set helps to eliminate this potential hazard in the work place.
Features:
Up to 7800N holding force for reliable clamping on all magnetic surfaces thanks to the innovative 2-rotor system, even when working on sheet metal from 4mm thick.
Precise alignment of the work piece thanks to the 30% pre magnetisation of the permanent magnet.
Adapts to numerous working environments thanks to the compact design and extra-narrow permanent magnet in the workshop and on-site.
Securely clamps components requiring additional processing with various power tools, such as drill presses, angle grinders, drill/drivers, saws, etc.
Clamping in tight spots or on vertical levels is not a problem with the compact and powerful permanent magnet.
The unique modular system ensures a secure hold in a very wide range of workshop or on-site applications, using the right accessories such as the welding table which can be added at any time.
The vice has a jaw opening range of 108 mm with a jaw width of 100 mm.
Interchangeable clamping jaws allow for clamping larger materials such as sheet metal and pipes up to 101mm diameter.
Specifications:
Vise Jaw Height: 40mm
Vise Jaw Opening: 108mm
Vise Jaw width: 100mm
Permanent Magnet Base dimensions L x W: 212mm x 70mm
Magnet Holding Power: 7800n/mm2
Weight according to EPTA: 7.25Kg.
Included as Standard: Versamag Permanent Magnet, Versamag Vise, Tommy bar, 3mm Allen key and Safety Strap
