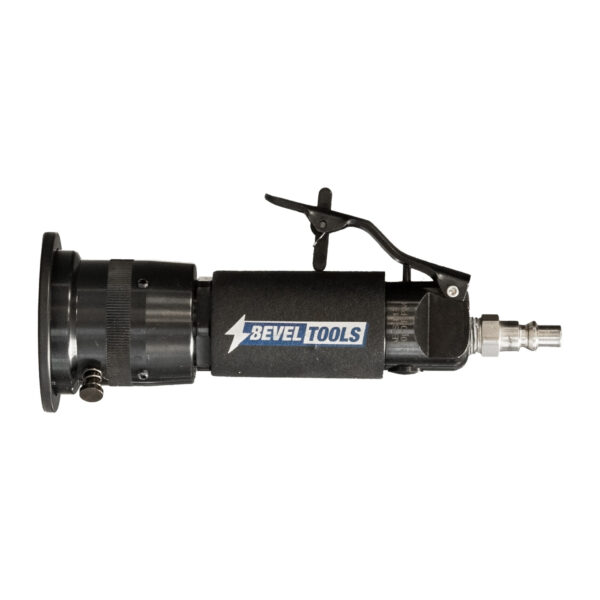

BevelTools Mini Mite® ABIS-M 3.0 Machine
Product Overview
Manufacturer: Beveltools
-
The BevelTools Mini Mite® ABIS-M 3.0 is the perfect solution for deburring applications, and precision rounding and bevelling tasks on sheet metal plates from 2.0mm thick. Designed for delicate edge work on thin plates, it can be used on a wide range of materials as long as the workpiece has at least a 0.5mm support for the cutter heads guide bearing to run along. Mini Mite® offers a extremely cost-efficient option whilst maintaining the high-quality finish that you would expect from all Beveltool cutter heads.
Read more
When bevelling, rounding and deburring on sheet metal, productivity is significantly increased when compared to conventional methods, this is thanks to the innovative patented design of the version 3.0 solid carbide cutter heads which offer long service life.
Mini Mite version 3.0 cutter head configurations include a R1, R2 radius cutters and 45°bevel cutter. All cutter heads have a cutting height of 4mm and a 9mm bearing diameter allowing you to radius holes from 12mm diameter with the R1 cutter heads and from 14mm with the R2 and 45o bevel cutter heads.
The Mini Mite® concept provides for a safe & healthier working environment when compared with other processes which involve grinding with abrasive products. The reduced sparking with minimum heat input into the metal reduces hazardous dust and fumes into the work place.
The compact and lightweight Mini Mite® machines offer exceptional flexibility, with a weight of only 1Kg they are comfortable to hold, easy to manoeuvre.
Beveltools machines have been manufactured to quality standards and carefully inspected before shipment. The warranty period for all Beveltools machines is 12 months from the original date of purchase.
Specification.
ABIS-M Air consumption = 22 CFM | 0.62 m3/min.
Maximum Air pressure: 6.3 bar / 91 PSI
Use high flow Air connectors with 12 to 13mm air hose for best results.
Weight 1kg
