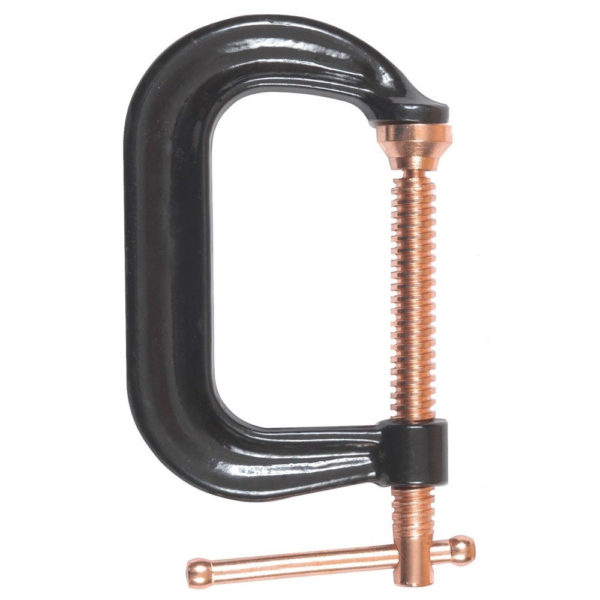

Bessey CDF-C C-Clamps

Manufacturer: Bessey

• The copper-plated spindle on the CDF-C C-clamp is designed to prevent welding splatter from sticking to the clamps threads, this makes it one of the best option C Clamps for engineering workshops.




  Read more

  Features:

  The drop forged steel offers the CDF-C strength and rigidity.

  Fast acting and hardwearing acme thread.

  Swivel shoe base for use on uneven surfaces.

  Code	Opening min/max	Opening min/max	Throat depth b	Clamping Force	Weight	QTY
  22142	0 – 75mm	0 – 3”	60mm	13kN	0.85kg	6
  22143	0 – 105mm	0 – 4 1/4”	85mm	16.5kN	1.60kg	6
  22144	0 – 150mm	0 – 6”	100mm	17kN	2.32kg	6
  22145	0 – 205mm	0 – 8”	125mm	17kN	3.42kg	6
